DR Series

DlN rail mounted power supply

ERS Series

Non-PFC enclosed single outputpower supply

ERS P2 Series

Enclosed single output powersupply with 200% peak loadcapability

PB Series

Enclosed dual output powersupply

GSP Series

Enclosed power supply withactive PFC

NHP Series

Semi-potted fanless powersupply with active PFC

NHR Series

Semi-potted non-PFC rainproofdesign power supply

Click to expand more

Click to collapse

Product Selection

Click to expand the conditional search box

Click to collapse the condition search box

Series Title

Network

no limit

AC/DC

AC input

no limit

90~264Vac

85-264VAC

85-277VAC

DC input

no limit

120-370VDC

127-370VDC

120-390VDC

Watt
（W）

no limit

192

150

135.6

153.6

40.8

480

240

120

76.8

100.8

960

142.5

97.5

75.6

Output Voltage
（V）

no limit

Output Current
（A）

no limit

9.5

0.75

6.25

0.85

11.3

2.1

3.2

1.5

4.2

3.4

1.6

2.5

1.7

6.3

6.5

7.5

PFC

no limit

APFC

Efficiency%

no limit

90.1

90.5

91.5

91.2

89.7

89.5

87.5

88.5

85.5

86.5

94.5

92.5

95.2

91.7

93.5

95.6

外形尺寸(mm)
长x宽x高

no limit

91.83x58.4x105mm

90x100x40

132.2x123.4x41

92.2x58.4x35mm

W55xH125xD131.5

41x132.2x123.4mm

32x132.2x123.4mm

92.2x58.4x70mm

32x132.2x123.4

140x130x125

132.2x123.4x32

工作温度
（℃）

no limit

-30℃～+70℃

-20℃～+70℃

-40℃～+70℃

-25℃～+70℃

-40℃～+85℃

安规认证

no limit

CCC/CE

CE/CQC/CB

Number of filtered models: Total 39 Please refer to the table below

Series Title	Network	AC input	DC input	Watt （W）	Efficiency%	外形尺寸(mm) 长x宽x高	Data Download	Certification/Standards	Technical Manual
DR Series DR Series				30-960W			-	-	-

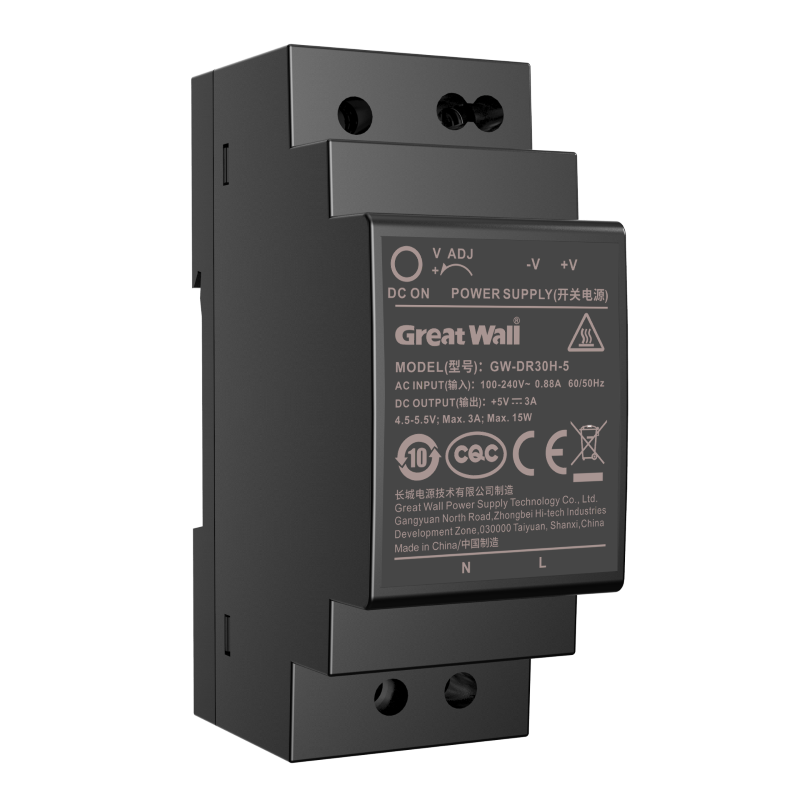

GW-DR30H-5 GW-DR30H-5	AC/DC	85-264VAC	120-370VDC	15	82	92.2x58.4x35mm

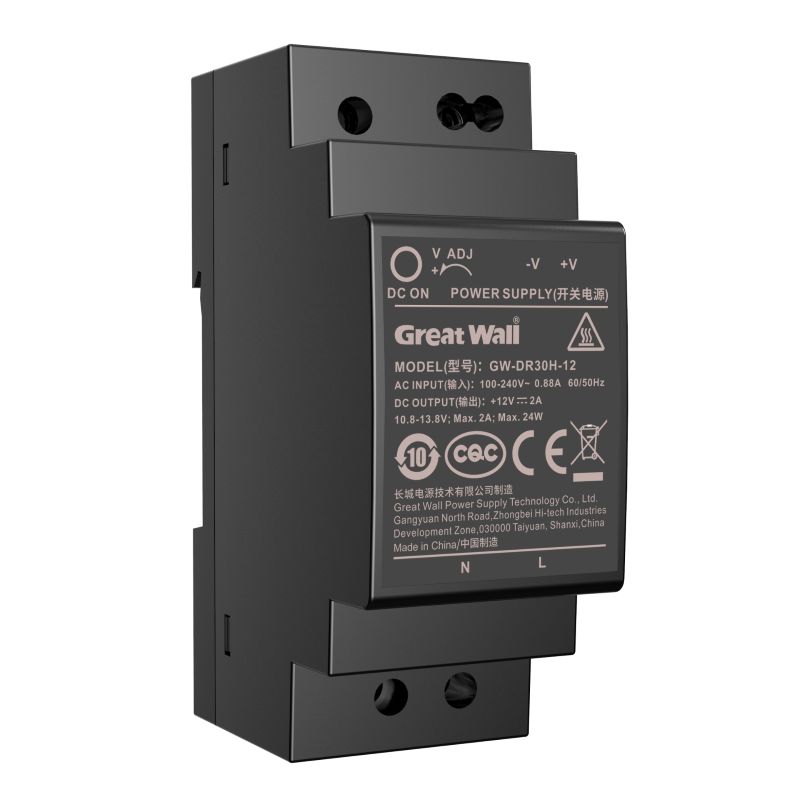

GW-DR30H-12 GW-DR30H-12	AC/DC	85-264VAC	120-370VDC	24	88	92.2x58.4x35mm
GW-DR30H-15 GW-DR30H-15	AC/DC	85-264VAC	120-370VDC	30	89	92.2x58.4x35mm
GW-DR30H-24 GW-DR30H-24	AC/DC	85-264VAC	120-370VDC	36	89	92.2x58.4x35mm

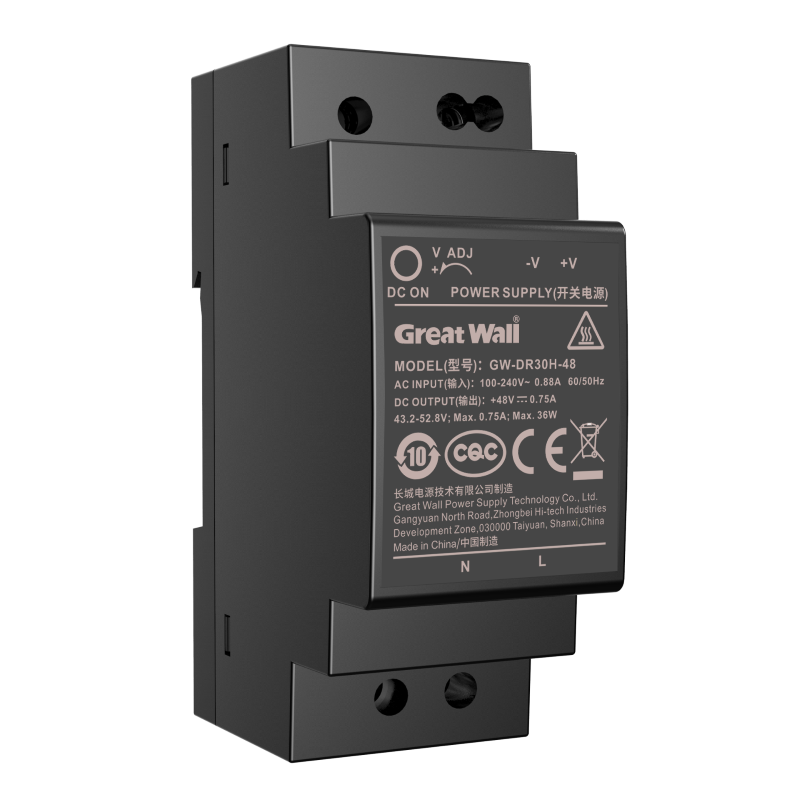

GW-DR30H-48 GW-DR30H-48	AC/DC	85-264VAC	120-370VDC	36	90	92.2x58.4x35mm
GW-DR100H-12 GW-DR100H-12	AC/DC	85-264VAC	120-370VDC	90	89.5	92.2x58.4x70mm
GW-DR100H-15 GW-DR100H-15	AC/DC	85-264VAC	120-370VDC	97.5	90.5	92.2x58.4x70mm

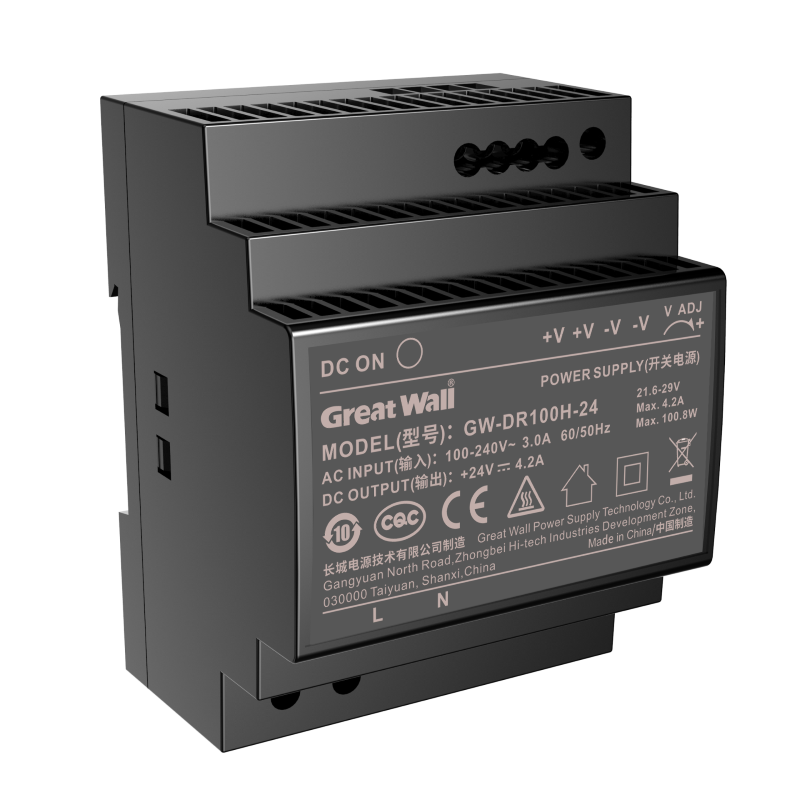

GW-DR100H-24 GW-DR100H-24	AC/DC	85-264VAC	120-370VDC	100.8	91.5	92.2x58.4x70mm

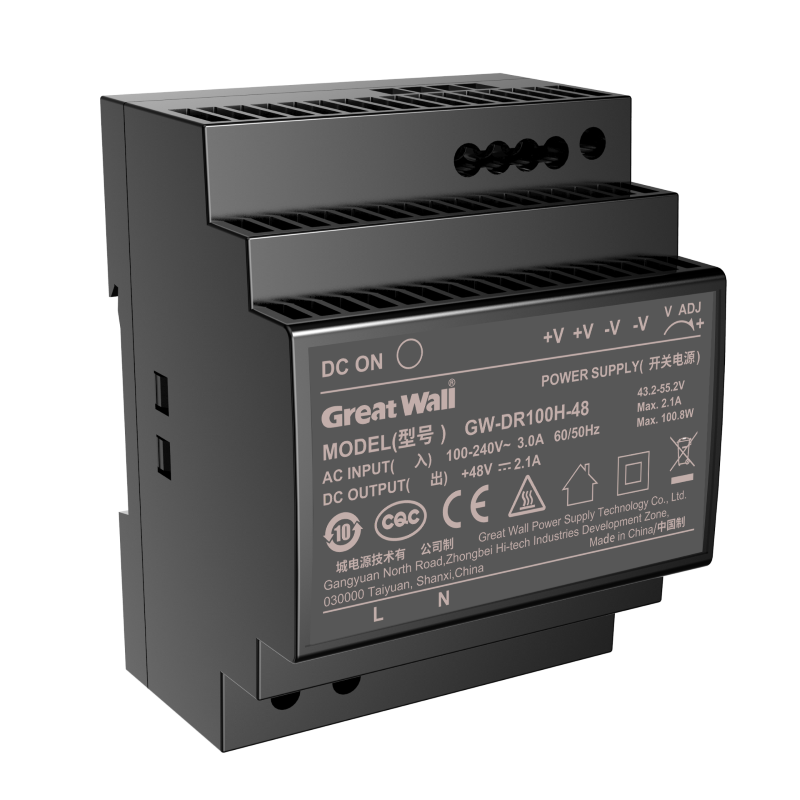

GW-DR100H-48 GW-DR100H-48	AC/DC	85-264VAC	120-370VDC	100.8	90.5	92.2x58.4x70mm
GW-DR150H-12 GW-DR150H-12	AC/DC	85-264VAC	120-370VDC	135.6	89.7	91.83x58.4x105mm
GW-DR150H-15 GW-DR150H-15	AC/DC	85-264VAC	120-370VDC	142.5	90.1	91.83x58.4x105mm

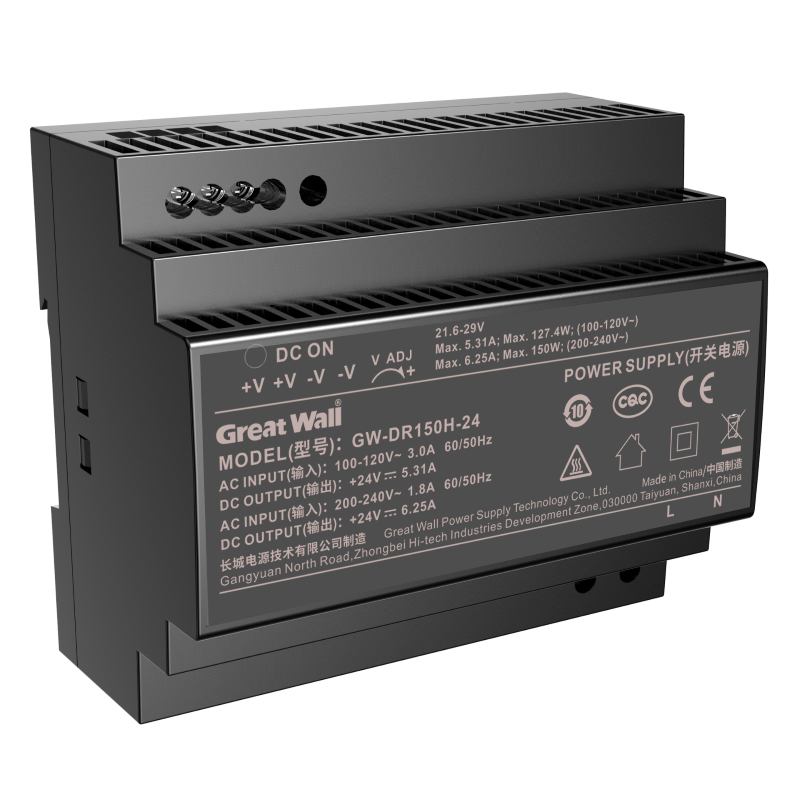

GW-DR150H-24 GW-DR150H-24	AC/DC	85-264VAC	120-370VDC	150	91.7	91.83x58.4x105mm
GW-DR150H-48 GW-DR150H-48	AC/DC	85-264VAC	120-370VDC	153.6	91.2	91.83x58.4x105mm
GW-DR40M-5 GW-DR40M-5	AC/DC	85-264VAC	120-370VDC	30	78	90x100x40

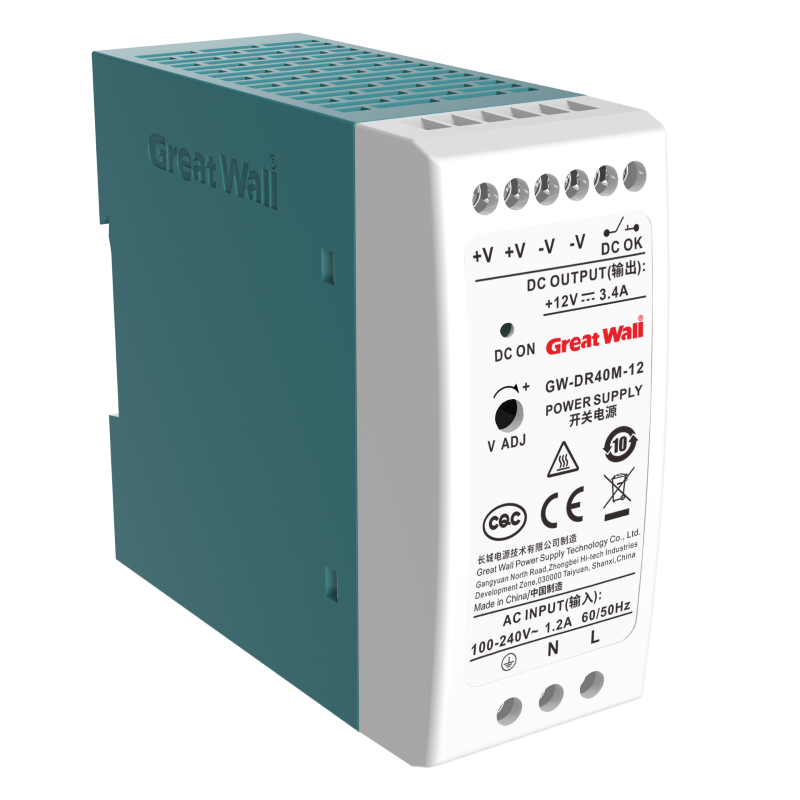

GW-DR40M-12 GW-DR40M-12	AC/DC	85-264VAC	120-370VDC	40.8	85	90x100x40
GW-DR40M-24 GW-DR40M-24	AC/DC	85-264VAC	120-370VDC	40.8	87.5	90x100x40

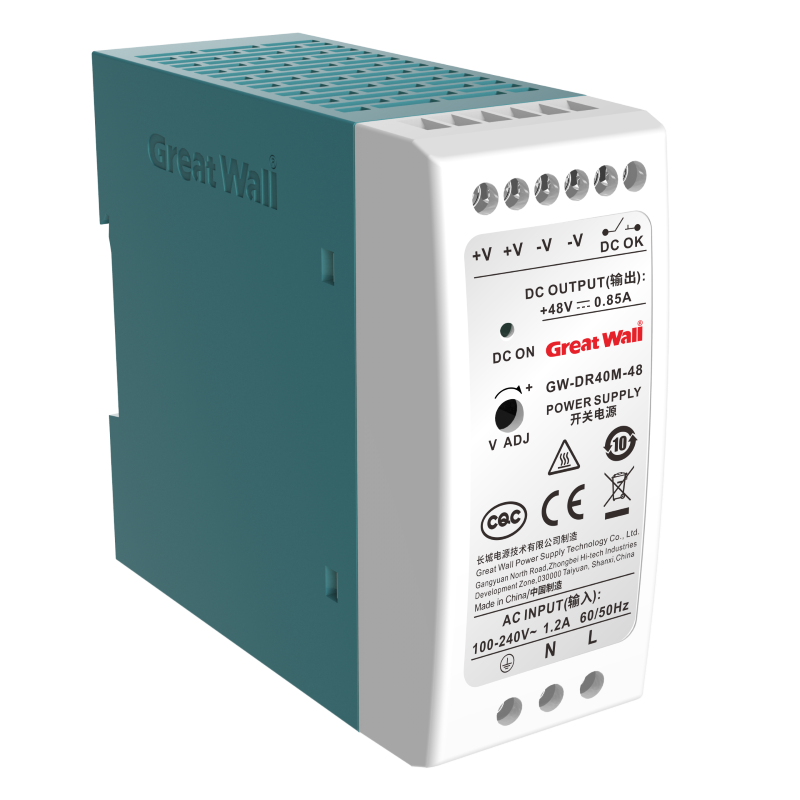

GW-DR40M-48 GW-DR40M-48	AC/DC	85-264VAC	120-370VDC	40.8	88	90x100x40

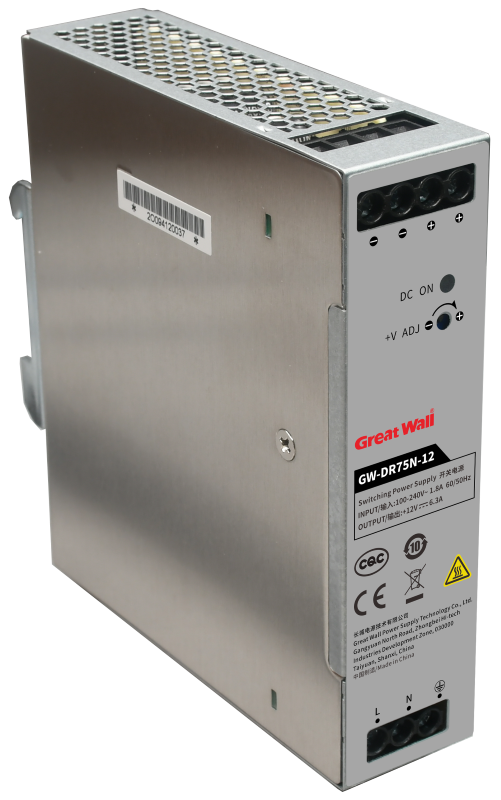

GW-DR75N-12 GW-DR75N-12	AC/DC	90~264Vac	127-370VDC	75.6	85.5	132.2x123.4x32

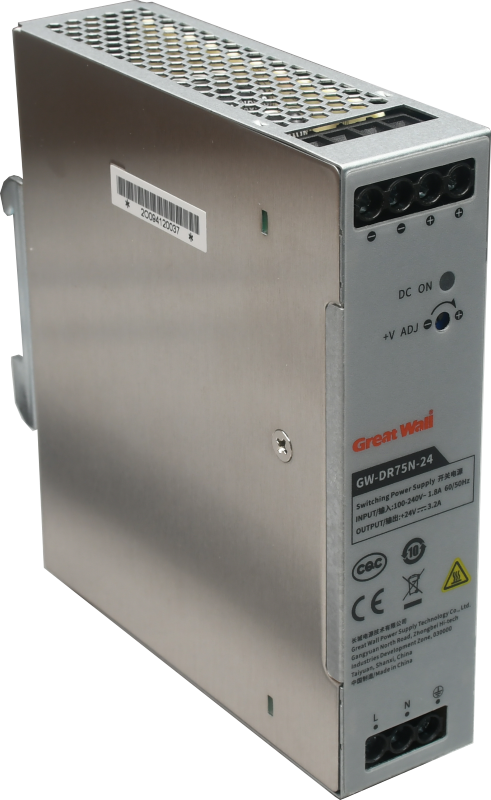

GW-DR75N-24 GW-DR75N-24	AC/DC	90~264Vac	127-370VDC	76.8	88.5	132.2x123.4x32
GW-DR75N-48 GW-DR75N-48	AC/DC	90~264Vac	127-370VDC	76.8	89.5	132.2x123.4x32

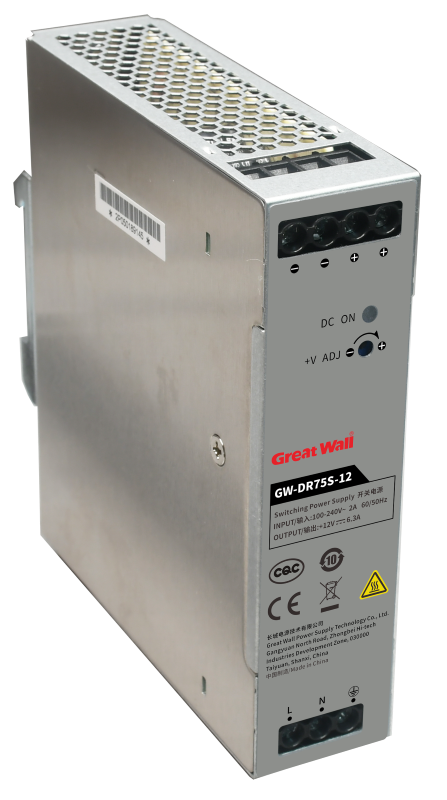

GW-DR75S-12 GW-DR75S-12	AC/DC	85-264VAC	120-370VDC	75.6	86.5	32x132.2x123.4
GW-DR75S-24 GW-DR75S-24	AC/DC	85-264VAC	120-370VDC	76.8	89	32x132.2x123.4

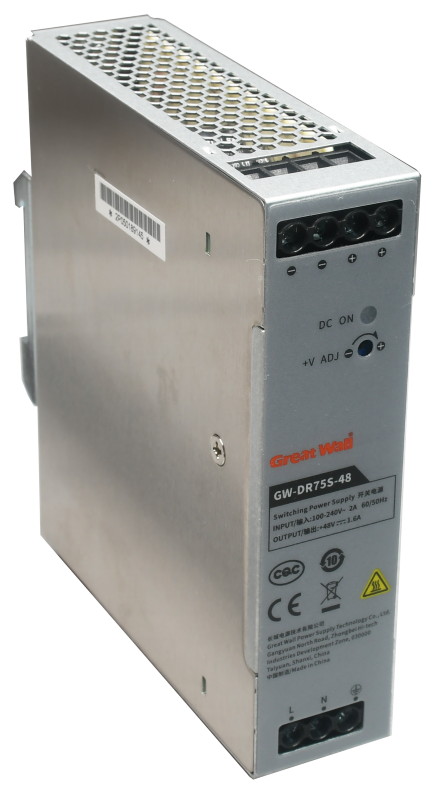

GW-DR75S-48 GW-DR75S-48	AC/DC	85-264VAC	120-370VDC	76.8	91	32x132.2x123.4

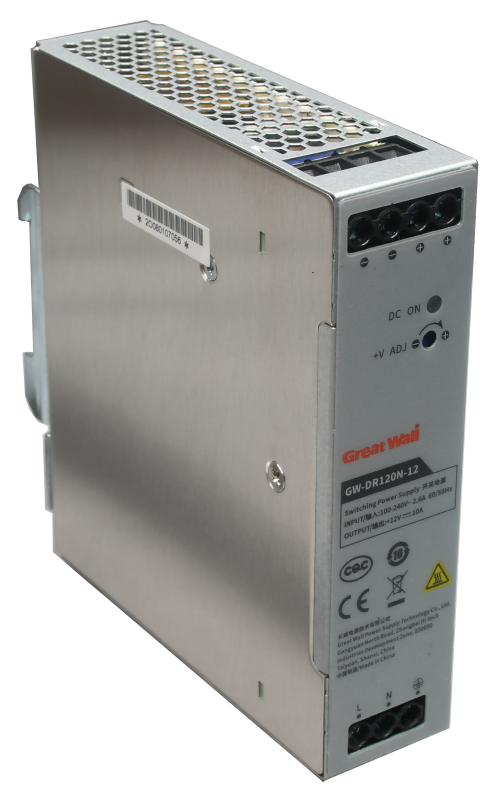

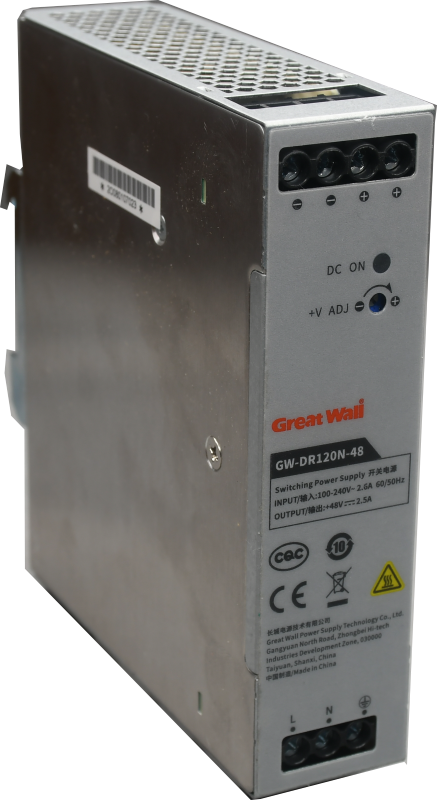

GW-DR120N-12 GW-DR120N-12	AC/DC	85-264VAC	120-370VDC	120	86.5	132.2x123.4x32

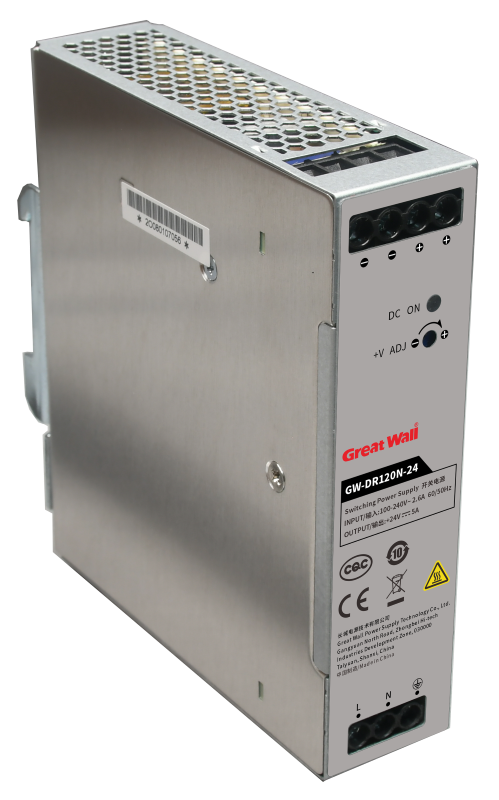

GW-DR120N-24 GW-DR120N-24	AC/DC	85-264VAC	120-370VDC	120	88.5	132.2x123.4x32
GW-DR120N-48 GW-DR120N-48	AC/DC	85-264VAC	120-370VDC	120	90	132.2x123.4x32

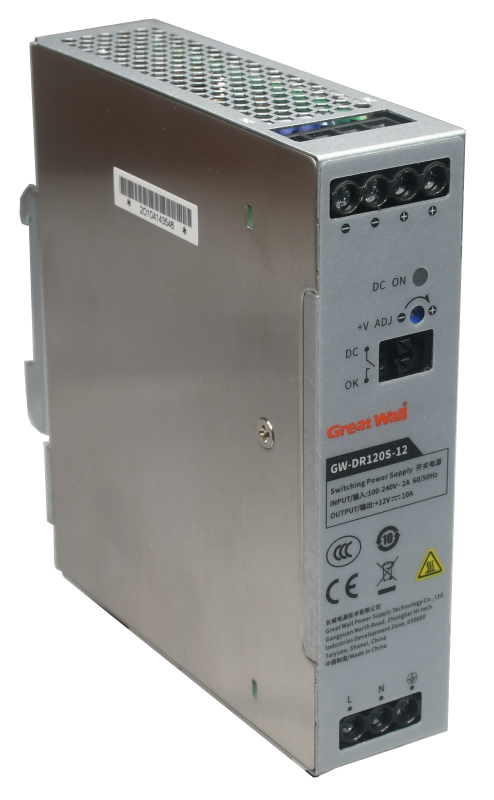

GW-DR120S-12 GW-DR120S-12	AC/DC	90~264Vac	127-370VDC	120	92.5	32x132.2x123.4mm

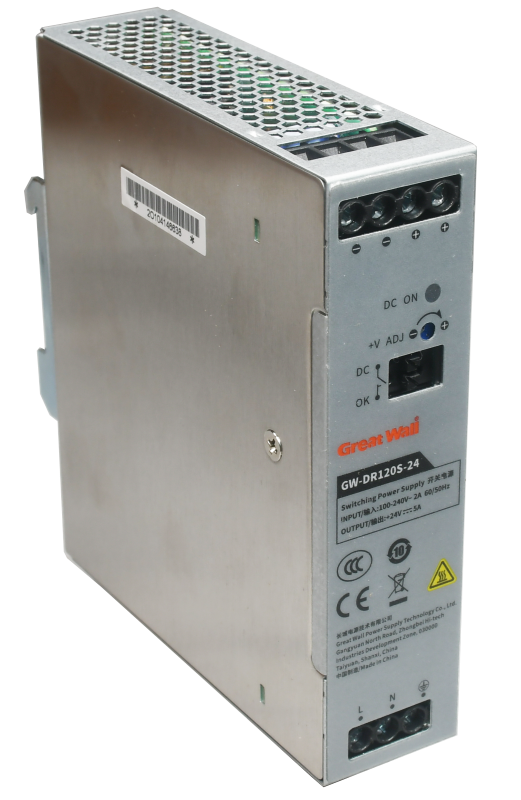

GW-DR120S-24 GW-DR120S-24	AC/DC	90~264Vac	127-370VDC	120	94	32x132.2x123.4mm

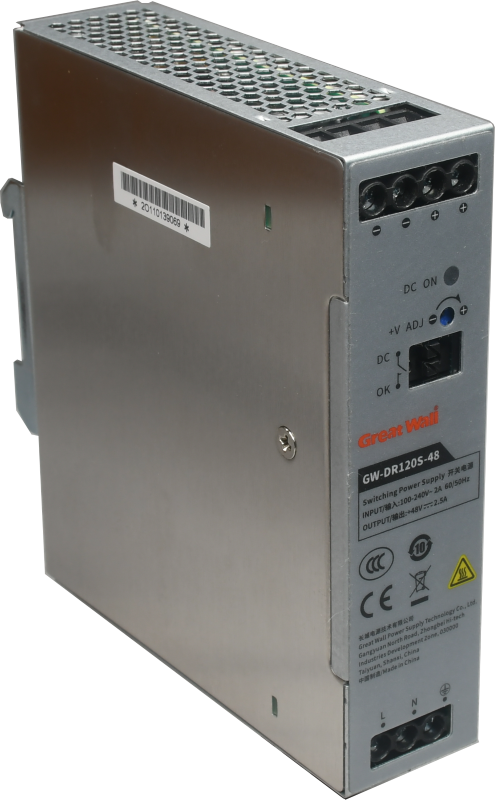

GW-DR120S-48 GW-DR120S-48	AC/DC	90~264Vac	127-370VDC	120	93.5	32x132.2x123.4mm

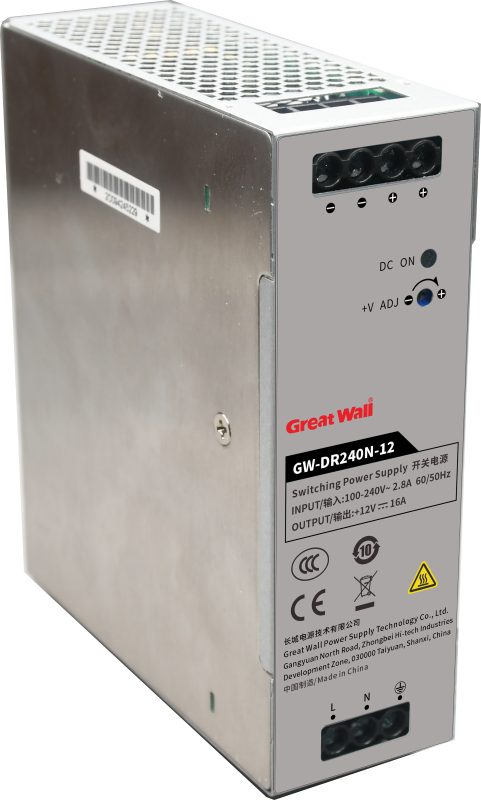

GW-DR240N-12 GW-DR240N-12	AC/DC	85-264VAC	120-370VDC	192	91	132.2x123.4x41
GW-DR240N-24 GW-DR240N-24	AC/DC	85-264VAC	120-370VDC	240	93	132.2x123.4x41
GW-DR240N-48 GW-DR240N-48	AC/DC	85-264VAC	120-370VDC	240	93	132.2x123.4x41

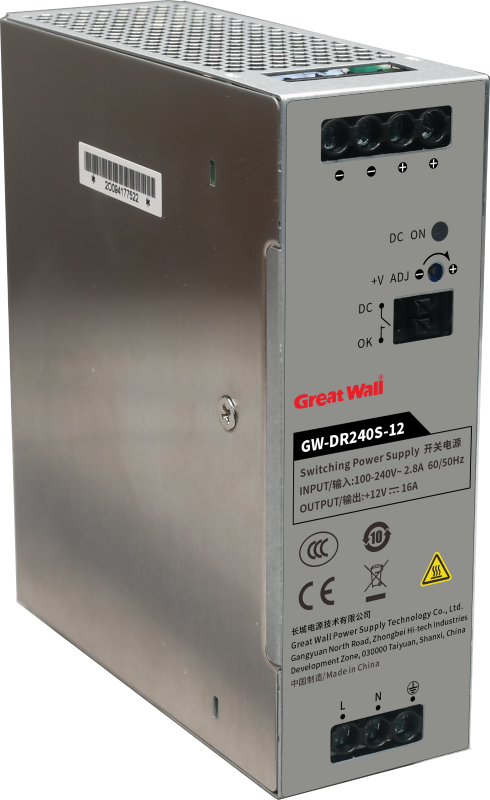

GW-DR240S-12 GW-DR240S-12	AC/DC	90~264Vac	127-370VDC	192	92	41x132.2x123.4mm

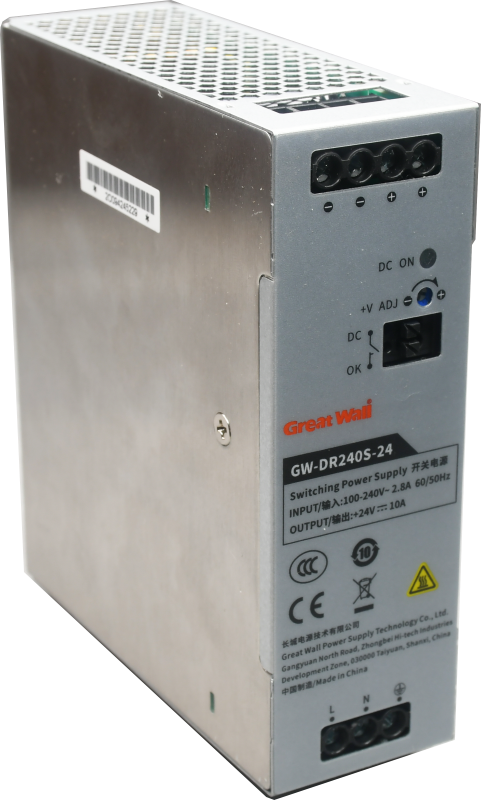

GW-DR240S-24 GW-DR240S-24	AC/DC	90~264Vac	127-370VDC	240	94	41x132.2x123.4mm

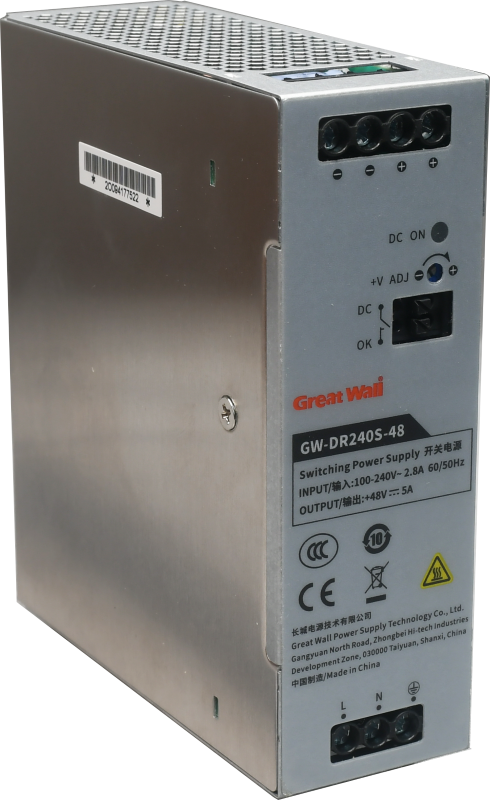

GW-DR240S-48 GW-DR240S-48	AC/DC	90~264Vac	127-370VDC	240	94	41x132.2x123.4mm
GW-DR480S-24 GW-DR480S-24	AC/DC	90~264Vac	127-370VDC	480	94.5	W55xH125xD131.5

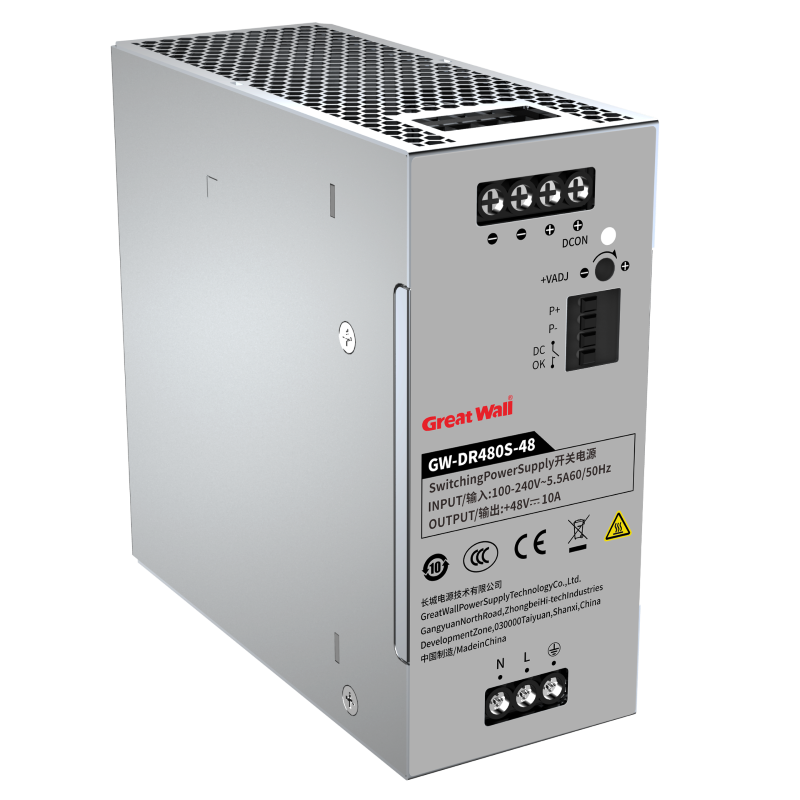

GW-DR480S-48 GW-DR480S-48	AC/DC	90~264Vac	127-370VDC	480	94.5	W55xH125xD131.5

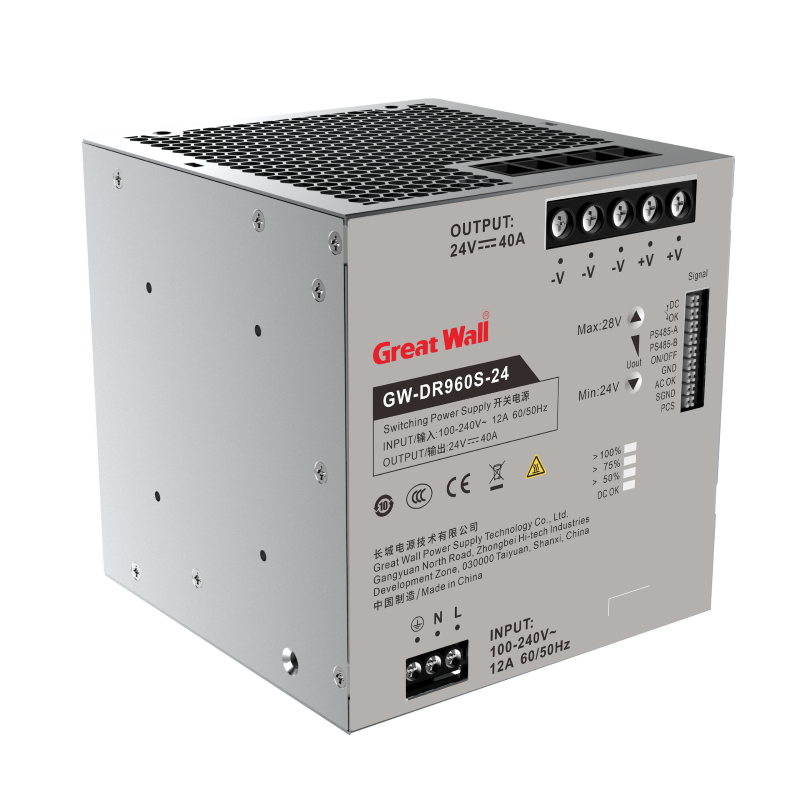

GW-DR960S-24 GW-DR960S-24	AC/DC	85-277VAC	120-390VDC	960	95.2	140x130x125

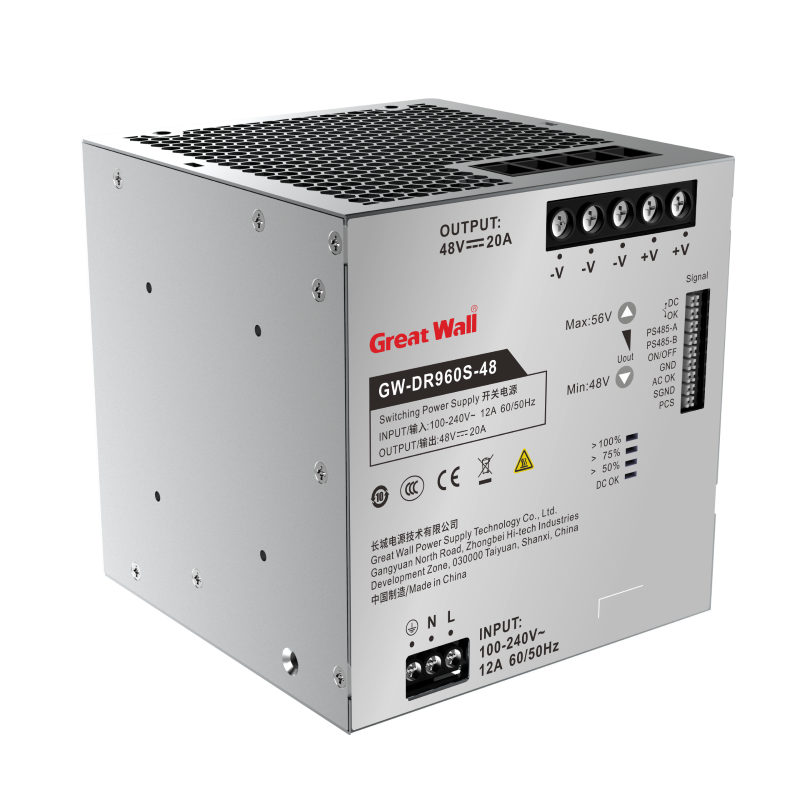

GW-DR960S-48 GW-DR960S-48	AC/DC	85-277VAC	120-390VDC	960	95.6	140x130x125
