ERS系列 (35W-600W)

ERS Series

DR Series
DlN rail mounted power supply
ERS Series
Non-PFC enclosed single outputpower supply
ERS P2 Series
Enclosed single output powersupply with 200% peak loadcapability
PB Series
Enclosed dual output powersupply
GSP Series
Enclosed power supply withactive PFC
NHP Series
Semi-potted fanless powersupply with active PFC
NHR Series
Semi-potted non-PFC rainproofdesign power supply
Click to expand more
Click to collapse
Product Selection
Click to expand the conditional search box
Click to collapse the condition search box
Series Title
Network
no limit
AC
AC/DC
AC input
no limit
180~264Vac
90~264Vac
90~132Vac/180~264Vac
DC input
no limit
250-370Vdc
127-370Vdc
Watt
（W）
no limit
150
350
154.8
158.4
51
110.4
74.88
120
100.5
100.8
200
400
600
50.4
52.2
52.8
65
297.5
250
450
75
35
36
76.8
99.6
38.4
300
80
40
Output Voltage
（V）
no limit
48
12
15
5
24
27
36
8.5
Output Current
（A）
no limit
50
10
13
16
18.8
1
3
37.5
1.1
5
7
3.2
1.5
8
3.3
3.4
16.7
60
14.6
7.3
5.6
12.5
9.4
24
9.8
25
1.45
23.4
2.08
29.2
30
16.67
6.25
35
1.56
13.3
2.2
22.22
2.3
2.4
4.2
80
4.3
0.8
2.8
40
8.3
6.5
6.7
PFC
no limit
无
Efficiency%
no limit
88
89
90.2
90.5
89.5
90
91
81.5
93
87.5
89.3
87.3
89.2
92.5
91.2
88.6
82.5
88.5
81
82
83
93.5
84
86
外形尺寸(mm)
长x宽x高
no limit
159.2*97*30
179*99*30
225*124*41
99*82*31
129*97*30
215*115*35
215*115*30
159*97*30
工作温度
（℃）
no limit
-30 ~ +65
-20 ~ +70
-20～+70℃
-30 ~ +70
-25 ~ +70
安规认证
no limit
CQC
CCC/CE/CB
CQC/CB
Number of filtered models: Total 57 Please refer to the table below
Series Title Network AC input DC input Watt
（W）		 Efficiency% 外形尺寸(mm)
长x宽x高		 Data Download Certification/Standards Technical Manual
ERS Series
ERS Series
 AC/DC 35-600W
-
-
-
GW-ERS35W-5
GW-ERS35W-5
 AC/DC 90~264Vac 127-370Vdc 35 83 99*82*31

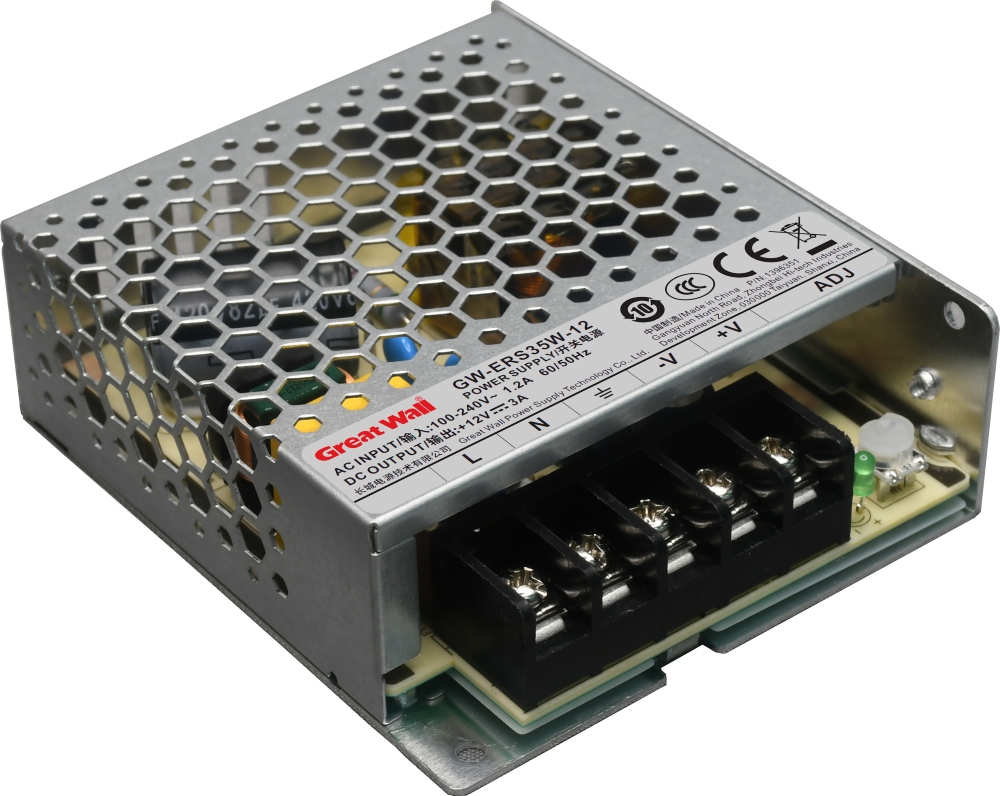

GW-ERS35W-12
GW-ERS35W-12
 AC/DC 90~264Vac 127-370Vdc 36 87.5 99*82*31
GW-ERS35W-15
GW-ERS35W-15
 AC/DC 90~264Vac 127-370Vdc 35 87.5 99*82*31
GW-ERS35W-24
GW-ERS35W-24
 AC/DC 90~264Vac 127-370Vdc 36 88.5 99*82*31
GW-ERS35W-36
GW-ERS35W-36
 AC/DC 90~264Vac 127-370Vdc 36 87.5 99*82*31
GW-ERS35W-48
GW-ERS35W-48
 AC/DC 90~264Vac 127-370Vdc 38.4 89.2 99*82*31
GW-ERS50W-5
GW-ERS50W-5
 AC/DC 90~264Vac 127-370Vdc 40 82 99*82*31
GW-ERS50W-12
GW-ERS50W-12
 AC/DC 90~264Vac 127-370Vdc 50.4 86 99*82*31
GW-ERS50W-15
GW-ERS50W-15
 AC/DC 90~264Vac 127-370Vdc 51 87.5 99*82*31
GW-ERS50W-24
GW-ERS50W-24
 AC/DC 90~264Vac 127-370Vdc 52.8 89 99*82*31
GW-ERS50W-36
GW-ERS50W-36
 AC/DC 90~264Vac 127-370Vdc 52.2 89 99*82*31
GW-ERS50W-48
GW-ERS50W-48
 AC/DC 90~264Vac 127-370Vdc 52.8 90.2 99*82*31
GW-ERS75W-5
GW-ERS75W-5
 AC/DC 90~264Vac 127-370Vdc 65 81 129*97*30
GW-ERS75W-12
GW-ERS75W-12
 AC/DC 90~264Vac 127-370Vdc 75 86 129*97*30
GW-ERS75W-15
GW-ERS75W-15
 AC/DC 90~264Vac 127-370Vdc 75 88 129*97*30
GW-ERS75W-24
GW-ERS75W-24
 AC/DC 90~264Vac 127-370Vdc 76.8 89 129*97*30
GW-ERS75W-36
GW-ERS75W-36
 AC/DC 90~264Vac 127-370Vdc 74.88 88 129*97*30

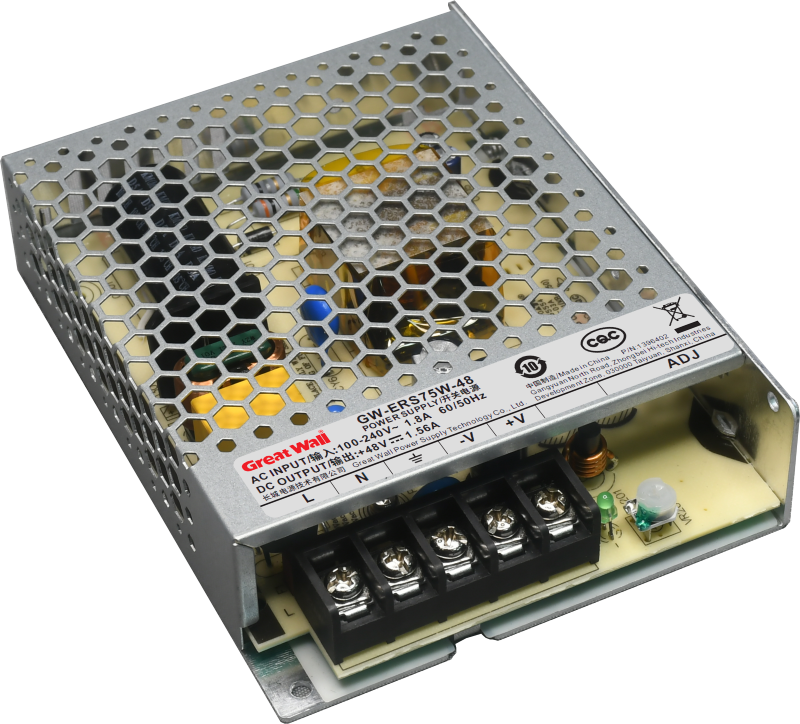

GW-ERS75W-48
GW-ERS75W-48
 AC/DC 90~264Vac 127-370Vdc 74.88 90 129*97*30
GW-ERS100W-5
GW-ERS100W-5
 AC/DC 90~264Vac 127-370Vdc 65 82.5 129*97*30
GW-ERS100W-12
GW-ERS100W-12
 AC/DC 90~264Vac 127-370Vdc 99.6 88 129*97*30
GW-ERS100W-15
GW-ERS100W-15
 AC/DC 90~264Vac 127-370Vdc 100.5 88.5 129*97*30
GW-ERS100W-24
GW-ERS100W-24
 AC/DC 90~264Vac 127-370Vdc 100.8 89 129*97*30
GW-ERS100W-36
GW-ERS100W-36
 AC/DC 90~264Vac 127-370Vdc 100.8 90 129*97*30
GW-ERS100W-48
GW-ERS100W-48
 AC/DC 90~264Vac 127-370Vdc 110.4 90.5 129*97*30
GW-ERS150W-5
GW-ERS150W-5
 AC/DC 90~264Vac 127-370Vdc 80 81.5 159*97*30

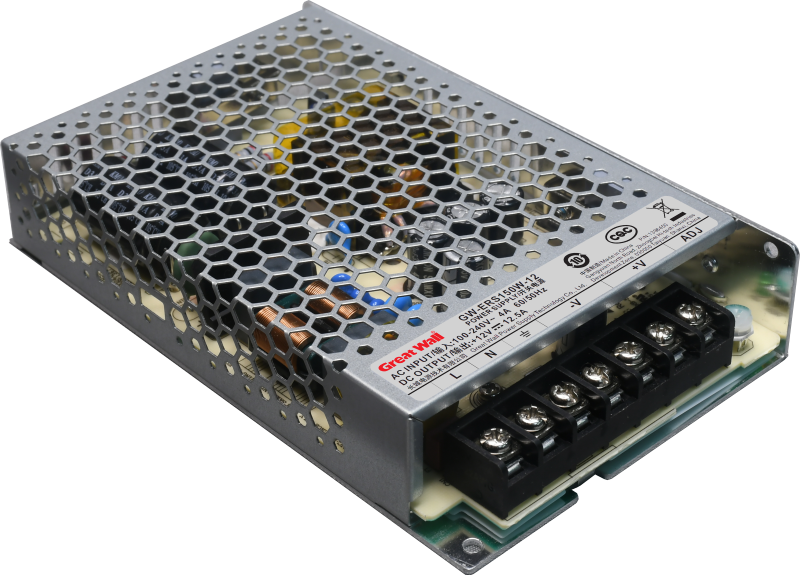

GW-ERS150W-12
GW-ERS150W-12
 AC/DC 90~264Vac 127-370Vdc 150 88 159*97*30

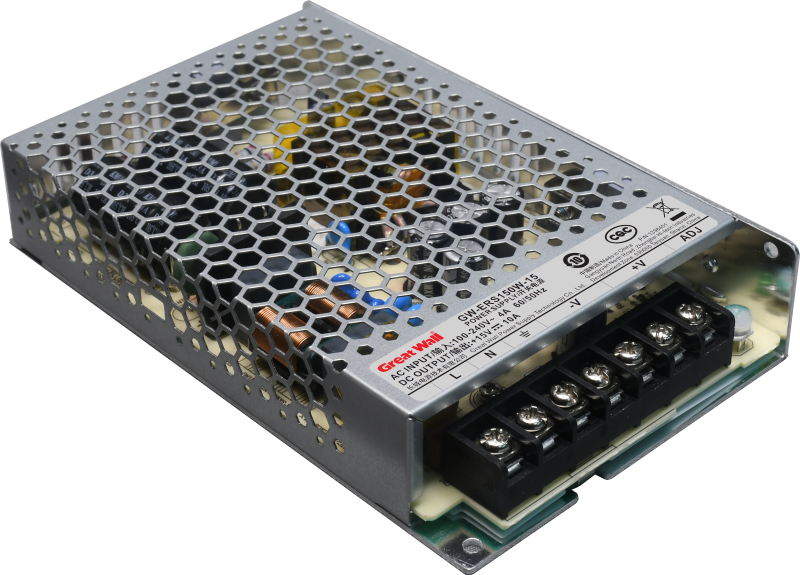

GW-ERS150W-15
GW-ERS150W-15
 AC/DC 90~264Vac 127-370Vdc 150 88.5 159.2*97*30
GW-ERS150W-24
GW-ERS150W-24
 AC/DC 90~264Vac 127-370Vdc 154.8 89 159*97*30
GW-ERS150W-36
GW-ERS150W-36
 AC/DC 90~264Vac 127-370Vdc 154.8 91 159*97*30
GW-ERS150W-48
GW-ERS150W-48
 AC/DC 90~264Vac 127-370Vdc 158.4 91.2 159*97*30
GW-ERS200CW-5
GW-ERS200CW-5
 AC/DC 90~132Vac/180~264Vac 250-370Vdc 120 83 179*99*30
GW-ERS200CW-12
GW-ERS200CW-12
 AC/DC 90~132Vac/180~264Vac 250-370Vdc 200 87.3 179*99*30
GW-ERS200CW-15
GW-ERS200CW-15
 AC/DC 90~132Vac/180~264Vac 250-370Vdc 200 88 179*99*30

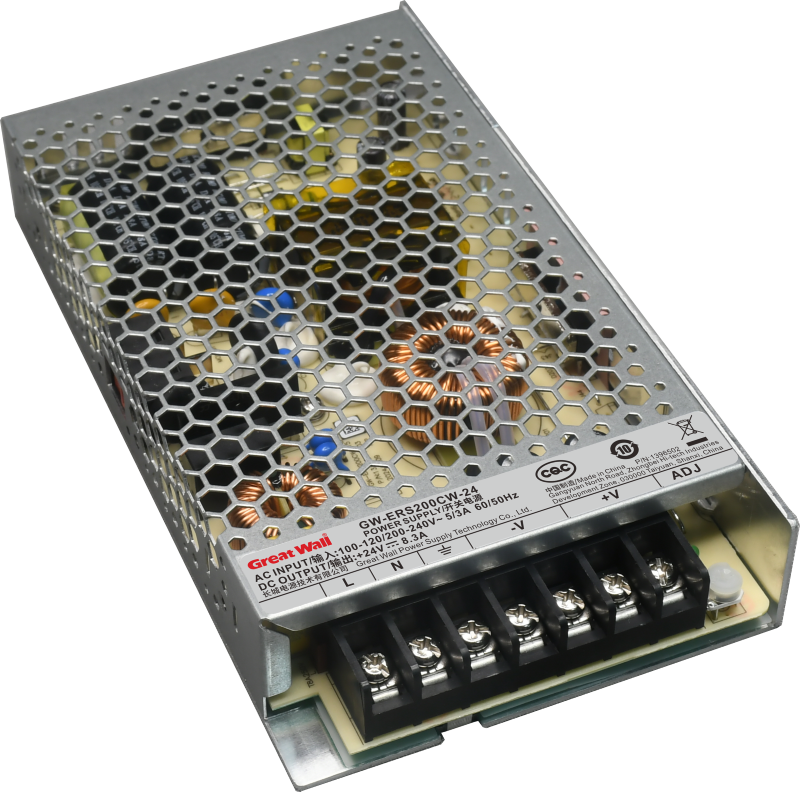

GW-ERS200CW-24
GW-ERS200CW-24
 AC/DC 90~132Vac/180~264Vac 250-370Vdc 200 88.6 179*99*30
GW-ERS200CW-36
GW-ERS200CW-36
 AC/DC 90~132Vac/180~264Vac 250-370Vdc 200 89.3 179*99*30
GW-ERS200CW-48
GW-ERS200CW-48
 AC/DC 90~132Vac/180~264Vac 250-370Vdc 200 89.5 179*99*30
GW-ERS350CW-5
GW-ERS350CW-5
 AC/DC 90~132Vac/180~264Vac 250-370Vdc 250 82.5 215*115*30

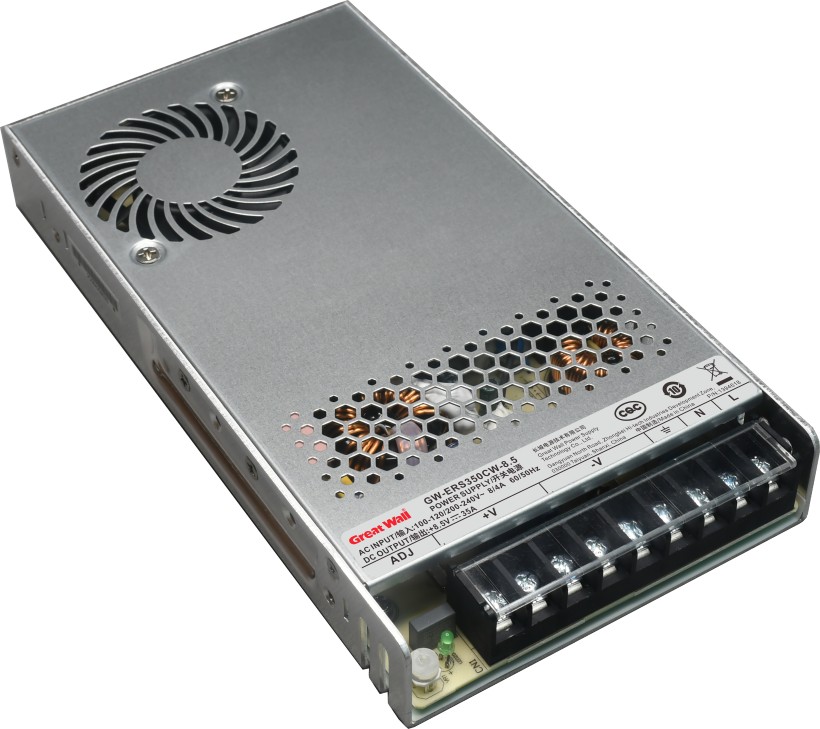

GW-ERS350CW-8.5
GW-ERS350CW-8.5
 AC/DC 90~132Vac/180~264Vac 250-370Vdc 297.5 84 215*115*30
GW-ERS350CW-12
GW-ERS350CW-12
 AC/DC 90~132Vac/180~264Vac 250-370Vdc 350 86 215*115*30
GW-ERS350CW-15
GW-ERS350CW-15
 AC/DC 90~132Vac/180~264Vac 250-370Vdc 350 88 215*115*30

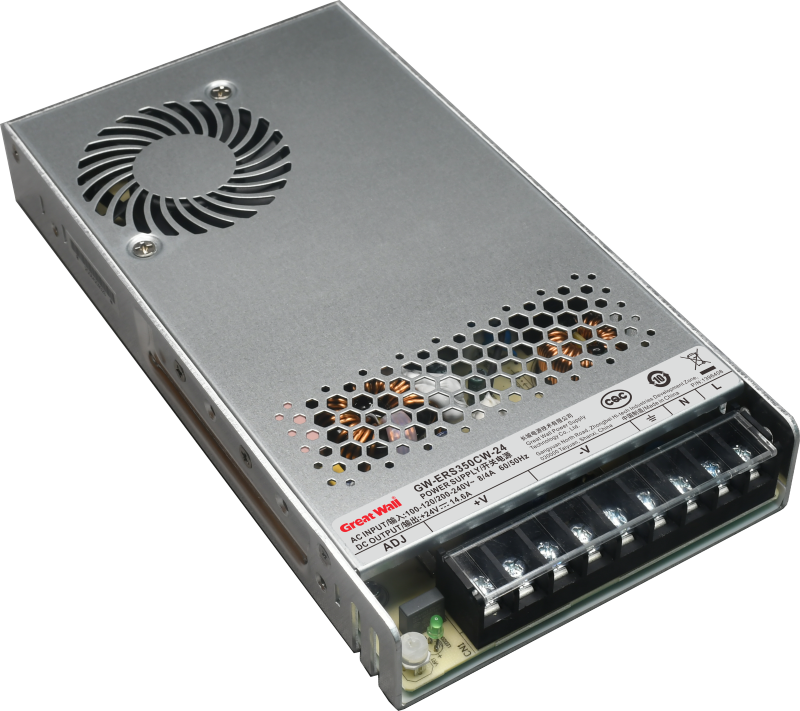

GW-ERS350CW-24
GW-ERS350CW-24
 AC/DC 90~132Vac/180~264Vac 250-370Vdc 350 88 215*115*30
GW-ERS350CW-27
GW-ERS350CW-27
 AC/DC 90~132Vac/180~264Vac 250-370Vdc 350 88 215*115*30
GW-ERS350CW-36
GW-ERS350CW-36
 AC/DC 90~132Vac/180~264Vac 250-370Vdc 350 88 215*115*30

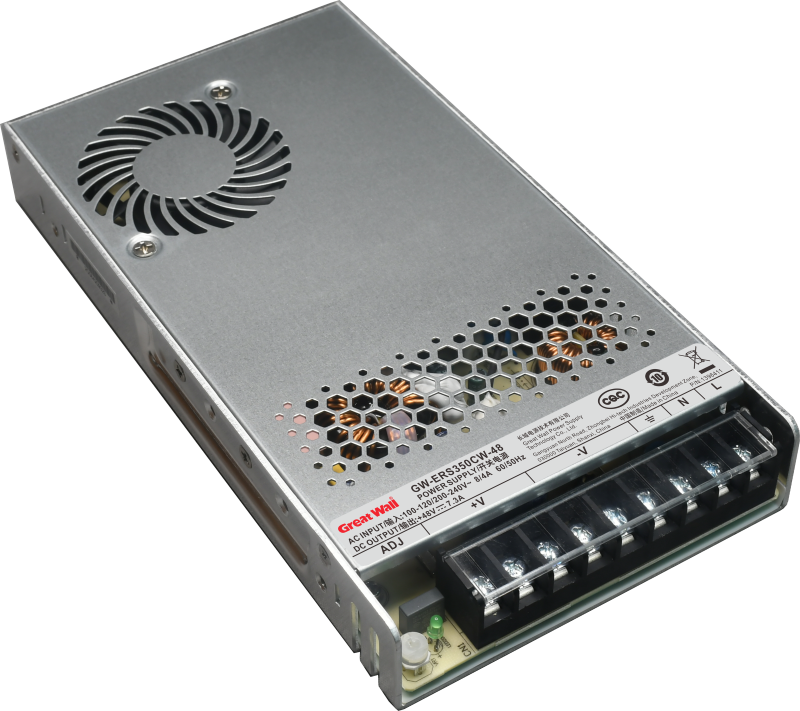

GW-ERS350CW-48
GW-ERS350CW-48
 AC/DC 90~132Vac/180~264Vac 250-370Vdc 350 87.5 215*115*30
GW-ERS450CW-5
GW-ERS450CW-5
 AC/DC 90~132Vac/180~264Vac 250-370Vdc 300 83 215*115*35
GW-ERS450CW-12
GW-ERS450CW-12
 AC/DC 90~132Vac/180~264Vac 250-370Vdc 450 88 215*115*35
GW-ERS450CW-15
GW-ERS450CW-15
 AC/DC 90~132Vac/180~264Vac 250-370Vdc 450 88 215*115*35
GW-ERS450CW-24
GW-ERS450CW-24
 AC/DC 90~132Vac/180~264Vac 250-370Vdc 450 90 215*115*35

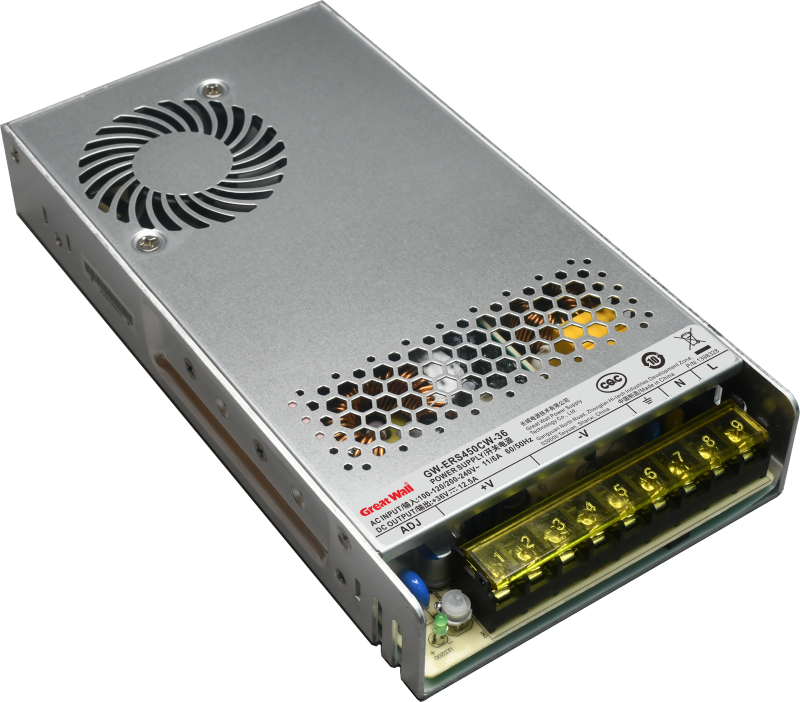

GW-ERS450CW-36
GW-ERS450CW-36
 AC/DC 90~132Vac/180~264Vac 250-370Vdc 450 89 215*115*35
GW-ERS450CW-48
GW-ERS450CW-48
 AC/DC 90~132Vac/180~264Vac 250-370Vdc 450 89 215*115*35
GW-ERS600H-5
GW-ERS600H-5
 AC 180~264Vac 400 88.5 225*124*41
GW-ERS600H-12
GW-ERS600H-12
 AC 180~264Vac 600 93 225*124*41
GW-ERS600H-15
GW-ERS600H-15
 AC 180~264Vac 600 93 225*124*41
GW-ERS600H-24
GW-ERS600H-24
 AC 180~264Vac 600 92.5 225*124*41
GW-ERS600H-27
GW-ERS600H-27
 AC 180~264Vac 600 92.5 225*124*41

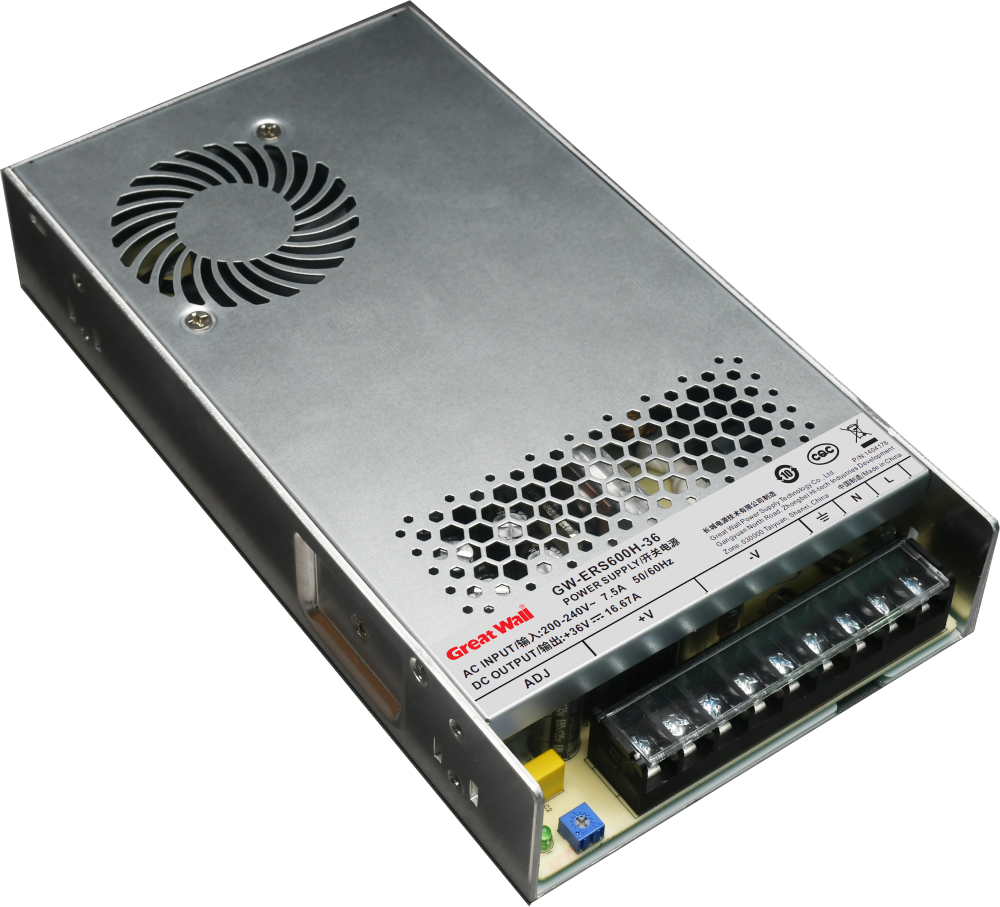

GW-ERS600H-36
GW-ERS600H-36
 AC 180~264Vac 600 93 225*124*41

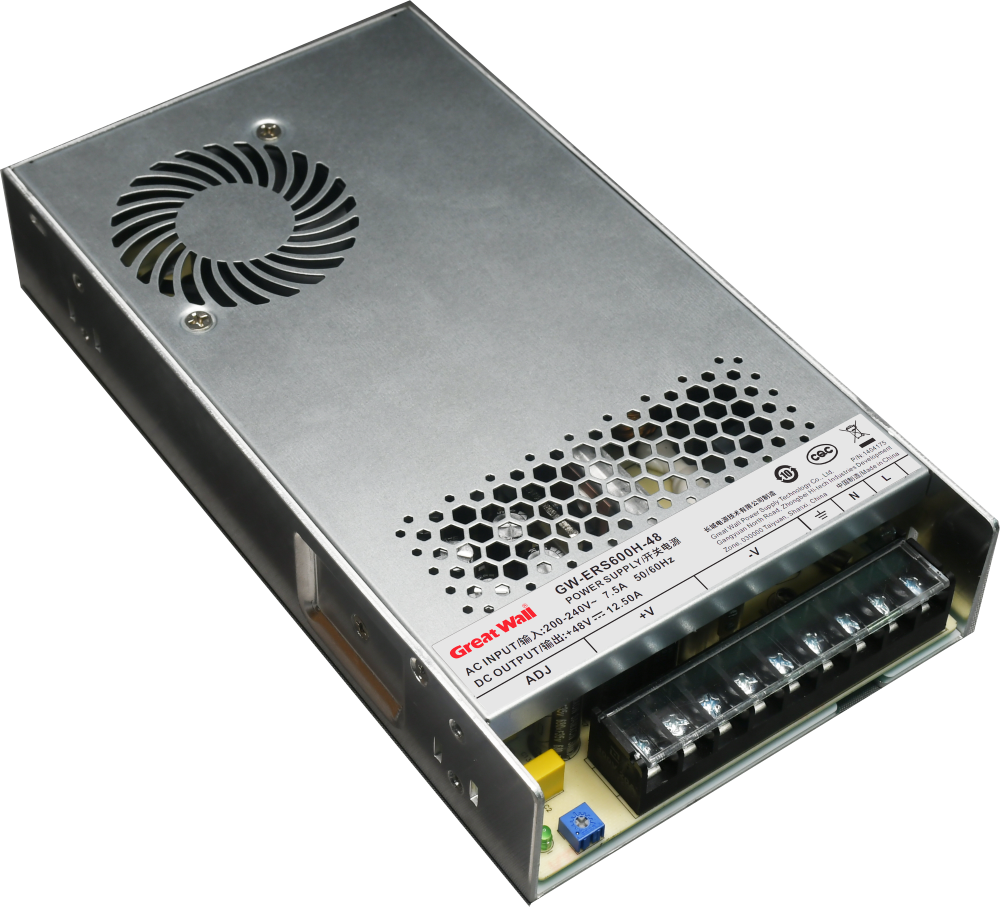

GW-ERS600H-48
GW-ERS600H-48
 AC 180~264Vac 600 93.5 225*124*41
