| Series Title |
Watt |
Dimension (L)*(W)*(H)(mm) |
Input Voltage |
Output Voltage |
Output Current |
Efficiency |
Cooling |
Data Download |
Certification/Standards |
Technical Manual |
|
|
|
|
|
|
|
|
|
-
|
-
|
-
|

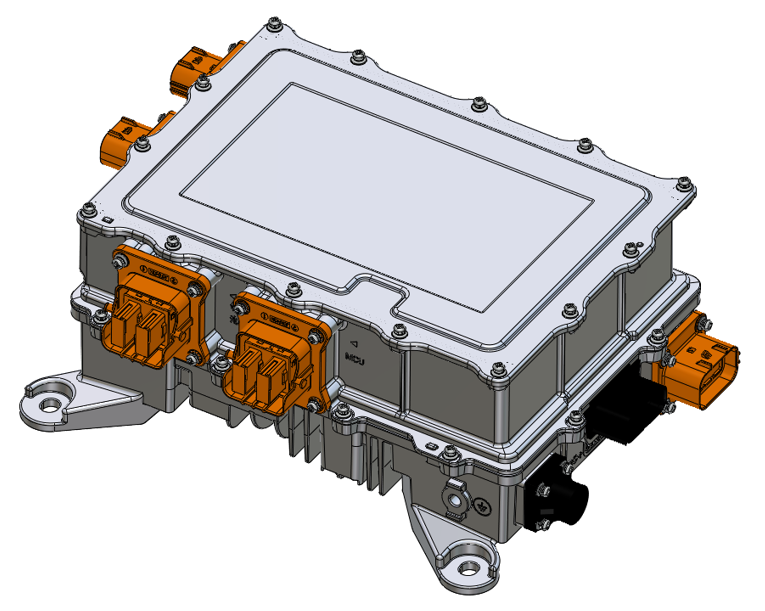

Bi-directional 6. 6kw OBC & 3.5kw DCDC Two-In-One
|
OBC:6.6kW </br>DC:3.5kW
|
211mm(L) x 185mm(W) x 67mm(H)
|
OBC:85~265Vac </br>DC:200~490Vdc
|
OBC:216~493Vdc </br>DC:9~16V
|
OBC:0-24A </br>DC:0-244A
|
OBC:96.3% </br>DC:96.6%
|
Liquid Cooling
|
|
|
|
Bi-directional 6. 6kw OBC & 2.5kw DCDC Three-In-One
|
OBC:6.6kW </br>DC:2.5kW
|
369mm(L) x226mm(W) x85mm(H)
|
OBC:85~265Vac</br>DC:250-450Vdc
|
OBC:250-450Vdc</br>DC:9~16V
|
OBC:0-22A</br>DC:0-181A
|
OBC:96.1% </br>DC:96.5%
|
Liquid Cooling
|
|
|
|
Bi-directional 6. 6kw OBC & 3kw DCDC Two-In-One
|
OBC:6.6kW </br>DC:3kW
|
250mm(L) x185mm(L)x67mm(L)
|
OBC:85~265Vac</br>DC:200~470Vdc
|
OBC:450~900Vdc</br>DC:9~16V
|
OBC:0-11A</br>DC:0-206A
|
OBC:96.4% </br>DC:96.5%
|
Liquid Cooling
|
|
|
|
Bi-directional 6. 6kw OBC & 2.5kw DCDC Three-In-One
|
OBC:6.6kW </br>DC:2.5kW
|
369mm(L) x226mm(W) x85mm(H)
|
OBC:85~265Vac</br>DC:500-850Vdc
|
OBC:500-850Vdc</br>DC:9~16V
|
OBC:0-22ADC:0-214A
|
OBC:96.1% DC:96.5%
|
Liquid Cooling
|
|
|
|
Bi-directional 11kw OBC & 3kw DCDC Two-In-One
|
OBC:10.5kW（Three-phase charging）9.9kVA (Three-phase discharge) </br>OBC:6.6kW(Single-phase charge) 6.6kVA（Single-phase discharge)</br> DC: 3kW
|
369mm(L) x226mm(W) x85mm(H)
|
OBC：147-457Vac 250-450Vdc</br>DC: 250-450Vdc
|
OBC:147-457Vac</br>DC: 250-500Vdc
|
OBC：0-35A（Three-phase） 0-22A（Single-phase）</br>DC: 0-214A
|
OBC：≥94.5%（Three-phase） ≥93.5%（Single-phase）</br>DC：≥93%
|
Liquid Cooling
|
|
|
|
Bi-directional 11kw OBC & 3kw DCDC Two-In-One
|
OBC:10.5kW（Three-phase charging） 9.9kVA(Three-phase discharge)</br>OBC :6.6kW((Single-phase charge) 6.6kVA(Single-phase discharge)</br>DC: 3kW
|
369mm(L) x226mm(W) x85mm(H)
|
OBC：147-457Vac 500-850Vdc</br>DC: 500-850Vdc
|
OBC:147-457Vac</br>DC: 490-860Vdc
|
OBC：0-18.7A（Three-phase） 0-11.8A（Single-phase）</br>DC: 0-214A
|
OBC：≥94.5%（Three-phase） ≥93.5%（Single-phase）</br>DC：≥93%
|
Liquid Cooling
|
|
|
|
Bi-directional 11kw OBC & 3kw DCDC Three-In-One
|
OBC:10.5kW（Three-phase charging） 9.9kVA(Three-phase discharge)</br>OBC:6.6kW(Single-phase charge) 6.6kVA（Single-phase discharge)</br>DC：3kW
|
369mm(L) x226mm(W) x85mm(H)
|
OBC:85~265Vac</br>DC:200~490Vdc
|
OBC:147-457Vac</br>DC: 490-860Vdc
|
OBC：0-18.7A（Three-phase） 0-11.8A（Single-phase）</br>DC:0-214A
|
OBC：≥94.5%（Three-phase） ≥93.5%（Single-phase）</br>DC：≥93%
|
Liquid Cooling
|
|
|
|
Combined Distribution Unit（CDU）
|
OBC:3.3kW
|
289 mm(L) x 197mm(W) x 120 mm(H)
|
85Vac~264Vac
|
65Vdc-135Vdc
|
32Amax
|
≥92%
|
Air Cooling
|
|
|
|
Combined Distribution Unit（CDU）
|
DC:1.2kW
|
289 mm(L) x 197mm(W) x 120 mm(H)
|
65~135Vdc
|
9Vdc-16Vdc
|
86Amax
|
≥91%
|
Air Cooling
|
|
|
|
Combined Distribution Unit（CDU） 400V
|
OBC:3.3kW
|
289 mm(L) x 197mm(W) x 120 mm(H)
|
85Vac~264Vac
|
210Vdc-450Vdc
|
12Amax
|
≥94%
|
Air Cooling
|
|
|
|
Combined Distribution Unit（CDU） 96V
|
DC:1.2kW
|
289 mm(L) x 197mm(W) x 120 mm(H)
|
210~450Vdc
|
9Vdc-16Vdc
|
86Amax
|
≥92%
|
Air Cooling
|
|
|
|
