NHP Series

DR Series
DlN rail mounted power supply
ERS Series
Non-PFC enclosed single outputpower supply
ERS P2 Series
Enclosed single output powersupply with 200% peak loadcapability
PB Series
Enclosed dual output powersupply
GSP Series
Enclosed power supply withactive PFC
NHP Series
Semi-potted fanless powersupply with active PFC
NHR Series
Semi-potted non-PFC rainproofdesign power supply
Click to expand more
Click to collapse
Product Selection
Click to expand the conditional search box
Click to collapse the condition search box
Series Title
Network
no limit
AC/DC
AC input
no limit
90~264Vac
DC input
no limit
127-370Vdc
Watt
（W）
no limit
350
252
351
198
300
350.4
400
500
336
501
500.4
501.6
Output Voltage
（V）
no limit
55
12
24
36
15
48
5
3.3
4.2
Output Current
（A）
no limit
8.9
9.75
23.3
33.4
80
10.45
60
13.9
6.3
29.2
14.6
7.3
41.7
20.9
PFC
no limit
APFC
Efficiency%
no limit
89
90
91
94.5
95.5
92.5
94
95
88.5
外形尺寸(mm)
长x宽x高
no limit
220*62*26
232*80*31
工作温度
（℃）
no limit
-30℃～+70℃
安规认证
no limit
CCC/CE
Number of filtered models: Total 17 Please refer to the table below
Series Title Network AC input DC input Watt
（W）		 Efficiency% 外形尺寸(mm)
长x宽x高		 Data Download Certification/Standards Technical Manual
NHP Series
NHP Series
 350-500W
-
-
-
GW-NHP350SW-3.3
GW-NHP350SW-3.3
 AC/DC 90~264Vac 127-370Vdc 198 88.5 220*62*26
GW-NHP350SW-4.2
GW-NHP350SW-4.2
 AC/DC 90~264Vac 127-370Vdc 252 89 220*62*26
GW-NHP350SW-5
GW-NHP350SW-5
 AC/DC 90~264Vac 127-370Vdc 300 90 220*62*26

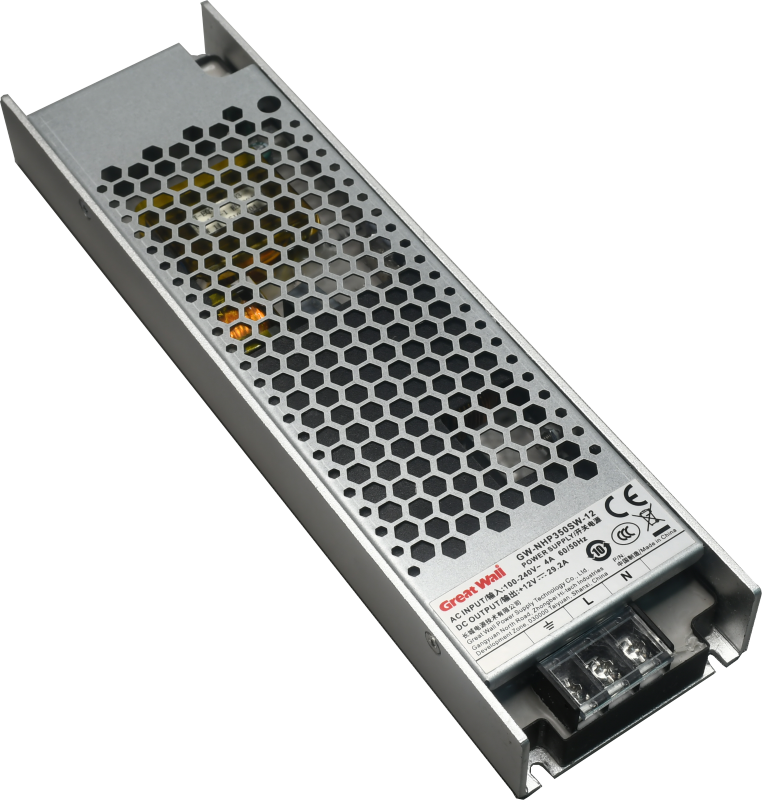

GW-NHP350SW-12
GW-NHP350SW-12
 AC/DC 90~264Vac 127-370Vdc 350.4 91 220*62*26
GW-NHP350SW-15
GW-NHP350SW-15
 AC/DC 90~264Vac 127-370Vdc 351 92.5 220*62*26

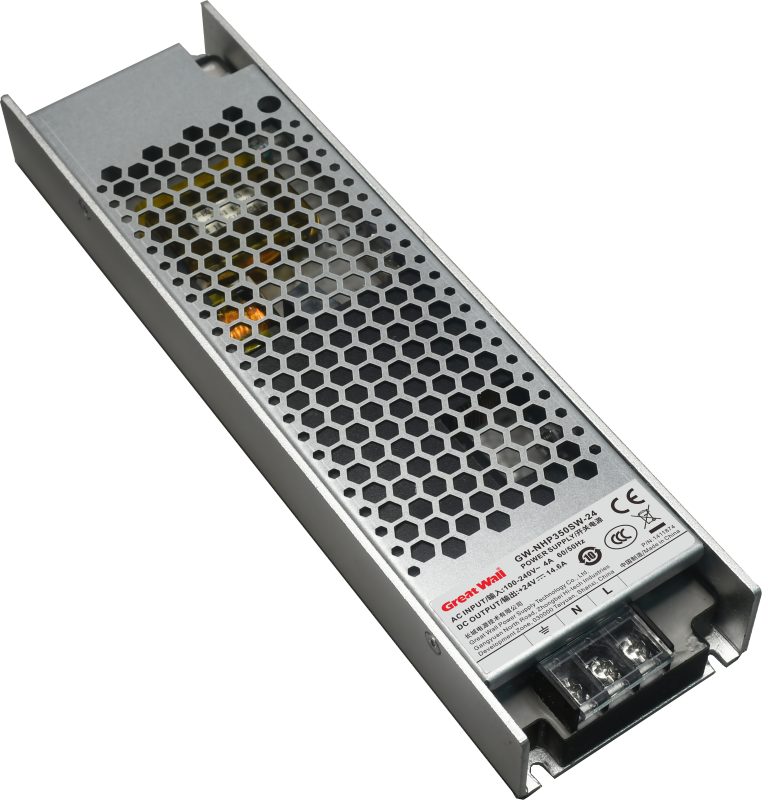

GW-NHP350SW-24
GW-NHP350SW-24
 AC/DC 90~264Vac 127-370Vdc 350.4 94.5 220*62*26
GW-NHP350SW-36
GW-NHP350SW-36
 AC/DC 90~264Vac 127-370Vdc 351 94.5 220*62*26
GW-NHP350SW-48
GW-NHP350SW-48
 AC/DC 90~264Vac 127-370Vdc 350.4 94.5 220*62*26
GW-NHP350SW-55
GW-NHP350SW-55
 AC/DC 90~264Vac 127-370Vdc 350 94.5 220*62*26

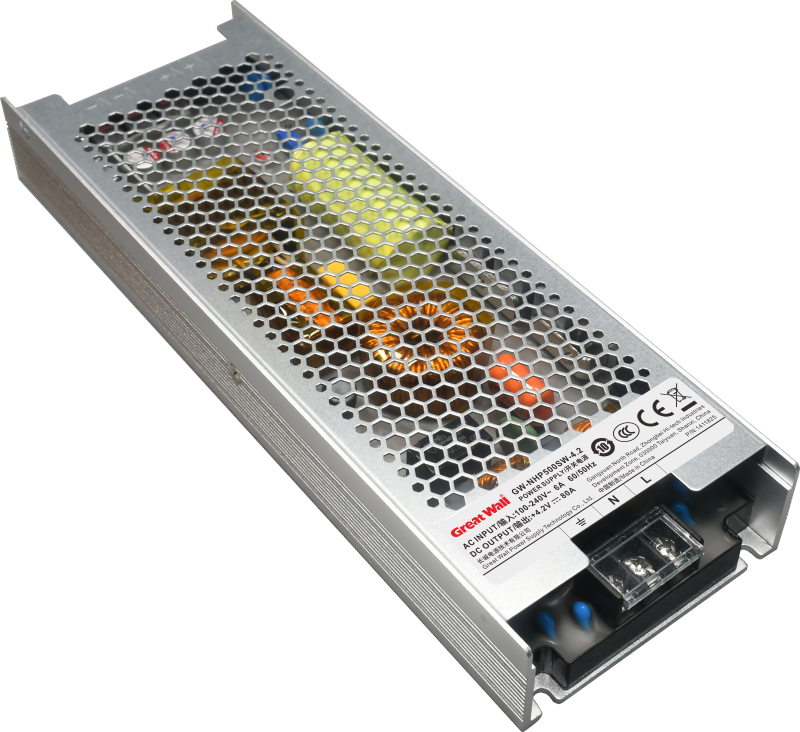

GW-NHP500SW-4.2
GW-NHP500SW-4.2
 AC/DC 90~264Vac 127-370Vdc 336 89 232*80*31
GW-NHP500SW-5
GW-NHP500SW-5
 AC/DC 90~264Vac 127-370Vdc 400 90 232*80*31
GW-NHP500SW-15
GW-NHP500SW-15
 AC/DC 90~264Vac 127-370Vdc 501 94 232*80*31

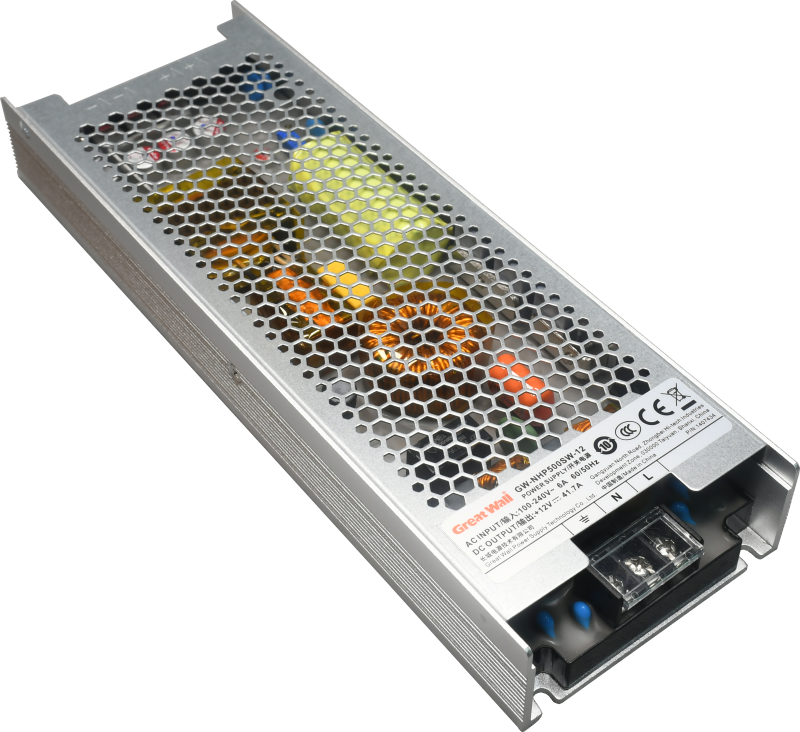

GW-NHP500SW-12
GW-NHP500SW-12
 AC/DC 90~264Vac 127-370Vdc 500.4 94 232*80*31

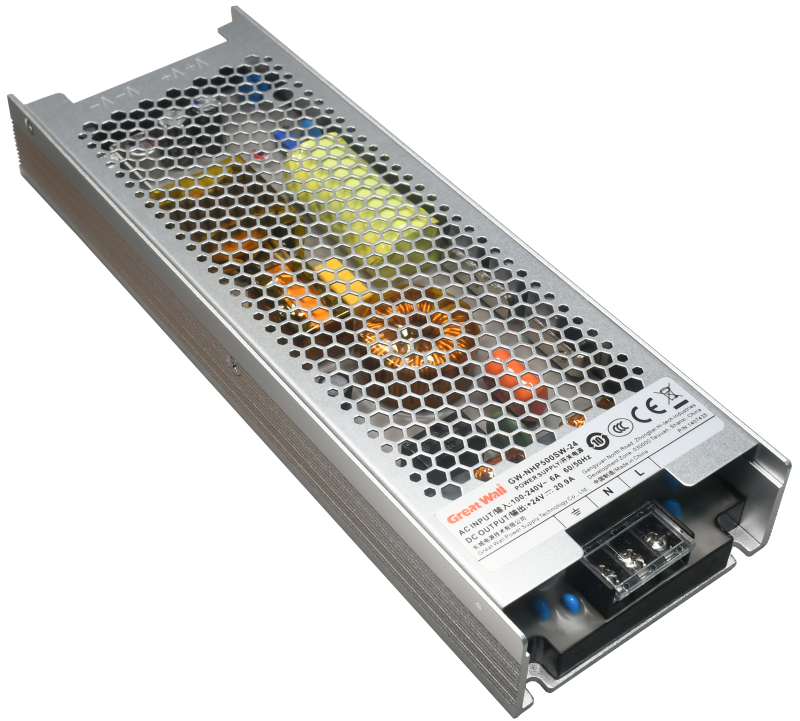

GW-NHP500SW-24
GW-NHP500SW-24
 AC/DC 90~264Vac 127-370Vdc 501.6 95 232*80*31
GW-NHP500SW-36
GW-NHP500SW-36
 AC/DC 90~264Vac 127-370Vdc 500.4 95.5 232*80*31
GW-NHP500SW-48
GW-NHP500SW-48
 AC/DC 90~264Vac 127-370Vdc 501.6 95.5 232*80*31
GW-NHP500SW-55
GW-NHP500SW-55
 AC/DC 90~264Vac 127-370Vdc 500 95 232*80*31
