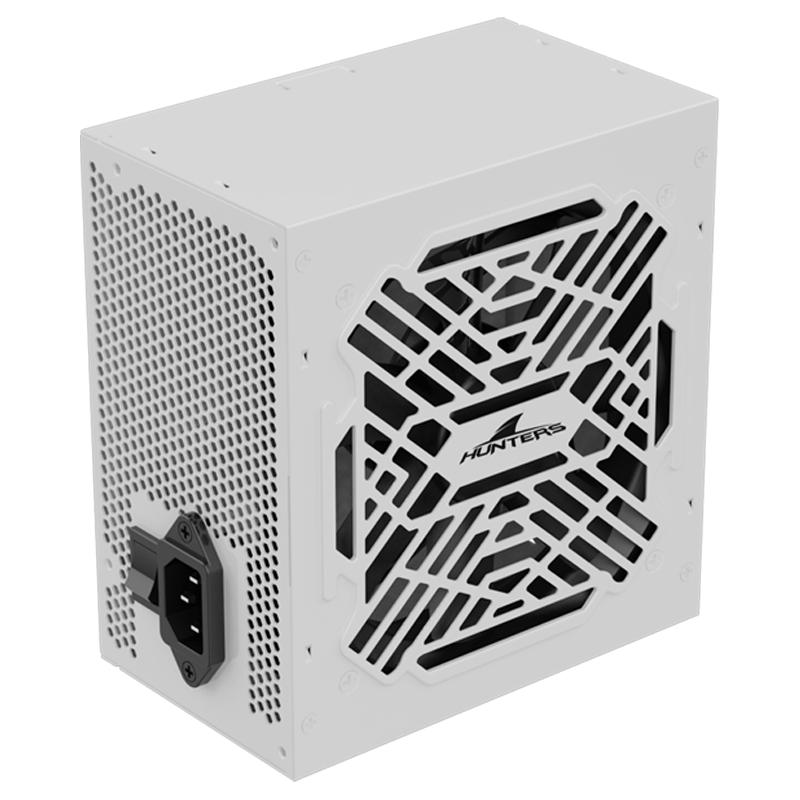

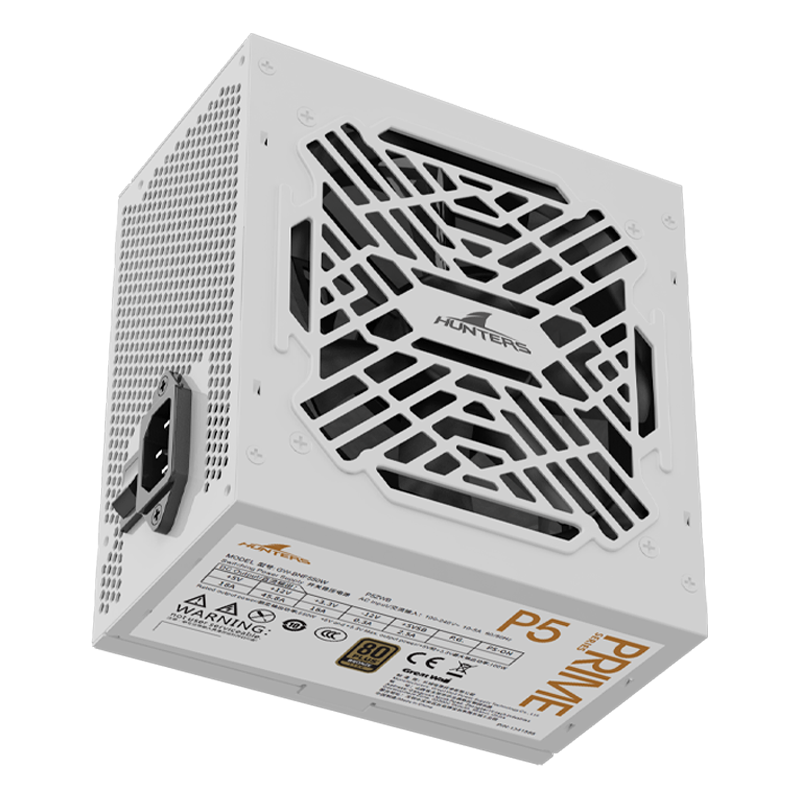

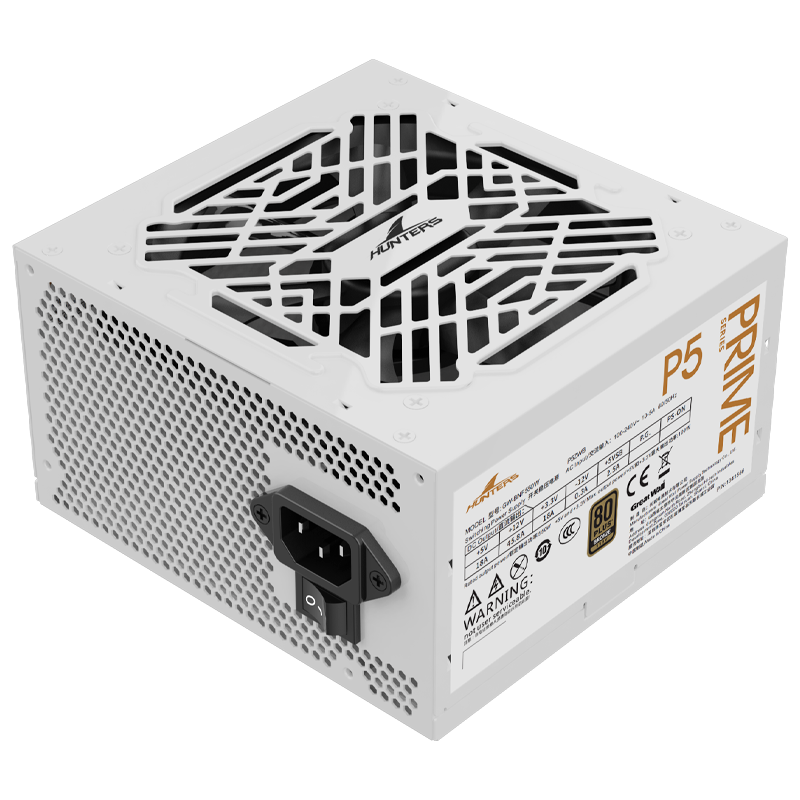

GW-BNF550W P5ZWB

  1. Certified by CE, CB, and 80PLUS Bronze with up to 88% efficiency.

  2. Single +12V high-current rail supports 100–240V full-range input for global compatibility.

  3. Advanced LLC + DC/DC + synchronous rectification for high efficiency and low latency.

  4. Dual-layer black PCB with optimized routing enhances electrical performance.

  5. Refined manufacturing process achieves up to 92% intelligent insertion efficiency.。


specifications
Efficiency Certification 80PLUS（BRONZE）
Product Part Number 5196695
Promotional Name P5 Bronze Fixed Cable (White)
ATX Version ATX2.31
Power 550W
Power Supply Dimensions 140*150*86
Fan Size 120mm
AC Connector
Input Voltage Range 100V-240V
Color White
Cable Output Type Fixed Cable
Warranty Period 5 Years
Carton Specification 6 units per carton
Certification CCC、CE、CB
Product Selling Points
ATX 24-PIN Cable Length 500
CPU Cable Length 500+150
Number of CPU Connectors 2
PCI-E 6+2 Cable Length 450+150
Number of PCI-E 6+2 Connectors 2
PCIe 5.1 Cable Length /
Number of PCIe 5.1 Connectors /
SATA Cable Length 450+100
Number of SATA Connectors 4
Number of SATA 3.3 Connectors
L4P Cable Length 450+200
Number of L4P Connectors 2
Remarks
Model List
Series Title Efficiency Certification Product Part Number Promotional Name ATX Version Power Power Supply Dimensions Fan Size AC Connector Input Voltage Range Color Cable Output Type Warranty Period Carton Specification Certification Product Selling Points ATX 24-PIN Cable Length CPU Cable Length Number of CPU Connectors PCI-E 6+2 Cable Length Number of PCI-E 6+2 Connectors PCIe 5.1 Cable Length Number of PCIe 5.1 Connectors SATA Cable Length Number of SATA Connectors Number of SATA 3.3 Connectors L4P Cable Length Number of L4P Connectors Remarks Data Download Certification Standards Technical Manual
PRIME
PRIME
-
-
-
GW-ATX850DP P8ZS
GW-ATX850DP P8ZS
 80PLUS（SILVER） 5197251 P8 Silver Fixed Cable（ATX3.1） ATX3.1 850W 140*150*86 120mm 100V-240V Black Fixed Cable 5 Years 6 units per carton CCC、CE 500 500+150 2 450+150 4 650 1 450+100 4 450+200 2
B850H P8ZB 3
B850H P8ZB 3
 80PLUS（BRONZE） 5194605 P7 Bronze Fixed Cable ATX2.31 750W 140*150*86 120mm 100V-240V Black Fixed Cable 5 Years 6 units per carton CCC、CE、CB 500 500+150 2 450+150 4 / / 450+100 4 450+200 2
B850H P8ZWB 3
B850H P8ZWB 3
 80PLUS（BRONZE） 5196694 P7 Bronze Fixed Cable (White) ATX2.31 750W 140*150*86 120mm 100V-240V White Fixed Cable 5 Years 6 units per carton CCC、CE、CB 500 500+150 2 450+150 4 / / 450+100 4 450+200 2
GW-750SD(90+) P7ZG
GW-750SD(90+) P7ZG
 80PLUS（GOLD） 5194309 P7 Gold Fixed Cable（ATX3.1） ATX3.1 750W 140*150*86 120mm 100V-240V Black Fixed Cable 7 Years 6 units per carton CCC，CE 500 500+150 2 450+150 4 650 1 450+100 4 450+200 2
GW-750SD(90+) P7ZWG
GW-750SD(90+) P7ZWG
 80PLUS（GOLD） 5197302 P7 Gold Fixed Cable (White)（ATX3.0） ATX3.0 750W 140*150*86 120mm 100V-240V White Fixed Cable 7 Years 6 units per carton CCC，CE 500 500+150 2 450+150 4 650 1 450+100 4 450+200 2
GW-BFD750W P7ZB
GW-BFD750W P7ZB
 86PLUS（BRONZE） 5193849 P7 Bronze Fixed Cable（ATX3.1） ATX3.1 750W 140*150*86 120mm 100V-240V Black Fixed Cable 5 Years 6 units per carton CCC、CE、CB 500 500+150 2 450+150 4 650 1 450+100 4 450+200 2
GW-BNF750W P7ZWB
GW-BNF750W P7ZWB
 80PLUS（BRONZE） 5196694 P7 Bronze Fixed Cable (White) ATX2.31 750W 140*150*86 120mm 100V-240V White Fixed Cable 5 Years 6 units per carton CCC、CE、CB 500 500+150 2 450+150 4 / / 450+100 4 450+200 2
GW-BNF750W P7ZB
GW-BNF750W P7ZB
 80PLUS（BRONZE） 5194605 P7 Bronze Fixed Cable ATX2.31 750W 140*150*86 120mm 100V-240V Black Fixed Cable 5 Years 6 units per carton CCC、CE、CB 500 500+150 2 450+150 4 / / 450+100 4 450+200 2
B750H P7ZB 3
B750H P7ZB 3
 80PLUS（BRONZE） 5194605 P7 Bronze Fixed Cable ATX2.31 750W 140*150*86 120mm 100V-240V Black Fixed Cable 5 Years 6 units per carton CCC、CE、CB 500 500+150 2 450+150 4 / / 450+100 4 450+200 2
B750H P7ZWB 3
B750H P7ZWB 3
 80PLUS（BRONZE） 5196694 P7 Bronze Fixed Cable (White) ATX2.31 750W 140*150*86 120mm 100V-240V White Fixed Cable 5 Years 6 units per carton CCC、CE、CB 500 500+150 2 450+150 4 / / 450+100 4 450+200 2
GW-BFD750W P7ZB
GW-BFD750W P7ZB
 86PLUS（BRONZE） 5193849 P7 Bronze Fixed Cable（ATX3.1） ATX3.1 750W 140*150*86 120mm 100V-240V Black Fixed Cable 5 Years 6 units per carton CCC、CE、CB 500 500+150 2 450+150 4 650 1 450+100 4 450+200 2
GW-BNF750W P7ZWB
GW-BNF750W P7ZWB
 80PLUS（BRONZE） 5196694 P7 Bronze Fixed Cable (White) ATX2.31 750W 140*150*86 120mm 100V-240V White Fixed Cable 5 Years 6 units per carton CCC、CE、CB 500 500+150 2 450+150 4 / / 450+100 4 450+200 2
GW-750SD（90+） V01
GW-750SD（90+） V01
 80PLUS（GOLD） 5189522 P7 Gold Fixed Cable ATX2.31 750W 140*150*86 120mm 100V-240V Black Fixed Cable 5 Years 8 units per carton CCC，CE 500 600+150 2 450+150 2 / / 450+100 4 450+200 2
GW-A750BHE-SC V01
GW-A750BHE-SC V01
 80PLUS Standard 5189029 P7 Standard Fixed Cable ATX2.31 750W 140*150*86 120mm 220V Black Fixed Cable 5 Years 8 units per carton CCC 500 500+150 2 450+150 4 / / 450+100 4 450+200 2
GW-650SD(90+) P6ZWG 3
GW-650SD(90+) P6ZWG 3
 80PLUS（GOLD） 5202416 P6 Gold Fixed Cable（ATX3.1） ATX3.1 650W 140*150*86 120mm 100V-240V Black Fixed Cable 7 Years 6 units per carton CCC，CE 500 500+150 2 450+150 2 650 1 450+100 4 450+200 2
GW-650SD(90+) P6ZWG
GW-650SD(90+) P6ZWG
 80PLUS（GOLD） 5198898 P6 Gold Fixed Cable (White) ATX2.31 650W 140*150*86 120mm 100V-240V White Fixed Cable 5 Years 8 units per carton CCC，CE 500 600+150 2 450+150 2 / / 450+100 4 450+200 2
GW-BNF650W P6ZB
GW-BNF650W P6ZB
 80PLUS（BRONZE） 5194604 P6 Bronze Fixed Cable ATX2.31 650W 140*150*86 120mm 100V-240V Black Fixed Cable 5 Years 6 units per carton CCC、CE、CB 500 500+150 2 450+150 4 / / 450+100 4 450+200 2
GW-BNF650W P6ZWB
GW-BNF650W P6ZWB
 80PLUS（BRONZE） 5196693 P6 Bronze Fixed Cable (White) ATX2.31 650W 140*150*86 120mm 100V-240V White Fixed Cable 5 Years 6 units per carton CCC、CE、CB 500 500+150 2 450+150 4 / / 450+100 4 450+200 2
B650H P6ZB
B650H P6ZB
 80PLUS（BRONZE） 5223057 P6 Bronze Fixed Cable ATX2.31 650W 140*150*86 120mm 100V-240V Black Fixed Cable 5 Years 6 units per carton CCC、CE、CB 500 500+150 2 450+150 4 / / 450+100 4 450+200 2
B650H P6ZWB
B650H P6ZWB
 80PLUS（BRONZE） 5223058 P6 Bronze Fixed Cable ATX2.31 650W 140*150*86 120mm 100V-240V Black Fixed Cable 5 Years 6 units per carton CCC、CE、CB 500 500+150 2 450+150 4 / / 450+100 4 450+200 2
GW-650SD（90+） V01
GW-650SD（90+） V01
 80PLUS（GOLD） 5189521 P6 Gold Fixed Cable ATX2.31 650W 140*150*86 120mm 100V-240V Black Fixed Cable 5 Years 8 units per carton CCC，CE 500 600+150 2 450+150 2 / / 450+100 4 450+200 2
GW-A650BHE-SC P6Z
GW-A650BHE-SC P6Z
 80PLUS Standard 5202136 P6 Standard Fixed Cable ATX2.31 650W 140*150*86 120mm 220V Black Fixed Cable 5 Years 8 units per carton CCC 500 500+150 2 450+150 2 / / 450+100 4 450+200 2
GW-A650BHE-SC
GW-A650BHE-SC
 80PLUS Standard 5194606 P6 Standard Fixed Cable ATX2.31 650W 140*150*86 120mm 220V Black Fixed Cable 5 Years 8 units per carton CCC 500 600+150 2 430+150 4 / / 300+150/400+150 5 600/550+150 4 Cable length and connector types may vary by version; please refer to the actual product for accurate specifications.
GW-BNF550W P5ZB
GW-BNF550W P5ZB
 80PLUS（BRONZE） 5194606 P5 Bronze Fixed Cable ATX2.31 550W 140*150*86 120mm 100V-240V Black Fixed Cable 5 Years 8 units per carton CCC、CE 500 500+150 2 450+150 2 / / 450+100 4 450+200 2
GW-BNF550W P5ZWB
GW-BNF550W P5ZWB
 80PLUS（BRONZE） 5196695 P5 Bronze Fixed Cable (White) ATX2.31 550W 140*150*86 120mm 100V-240V White Fixed Cable 5 Years 6 units per carton CCC、CE、CB 500 500+150 2 450+150 2 / / 450+100 4 450+200 2
GW-550SD（90+） V01
GW-550SD（90+） V01
 80PLUS（GOLD） 5189520 P5 Gold Fixed Cable ATX2.31 550W 140*150*86 120mm 100V-240V Black Fixed Cable 5 Years 8 units per carton CCC，CE 500 600+150 2 450+150 2 / / 450+100 4 450+200 2
