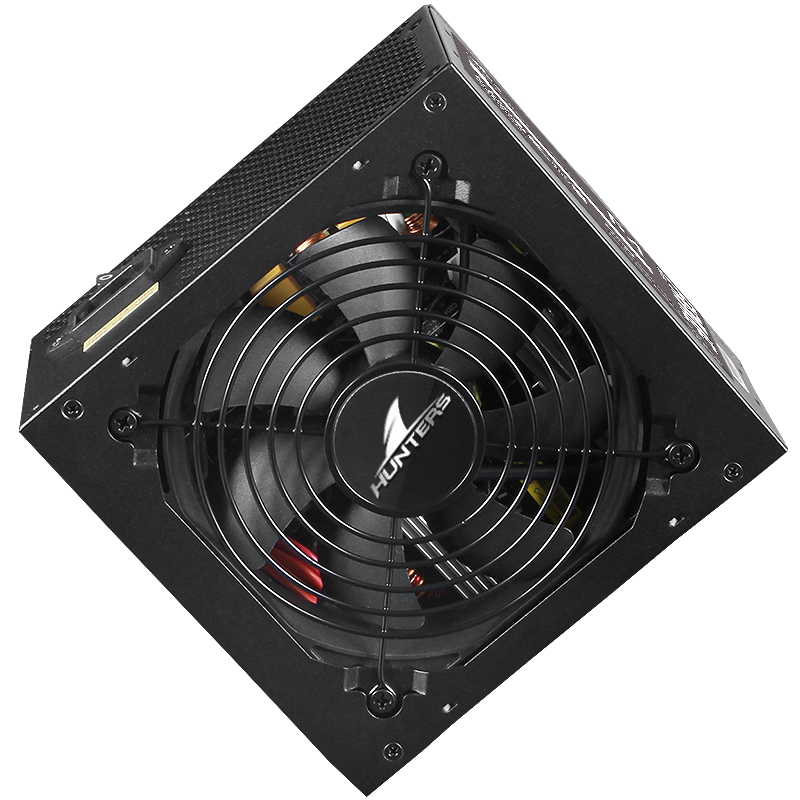

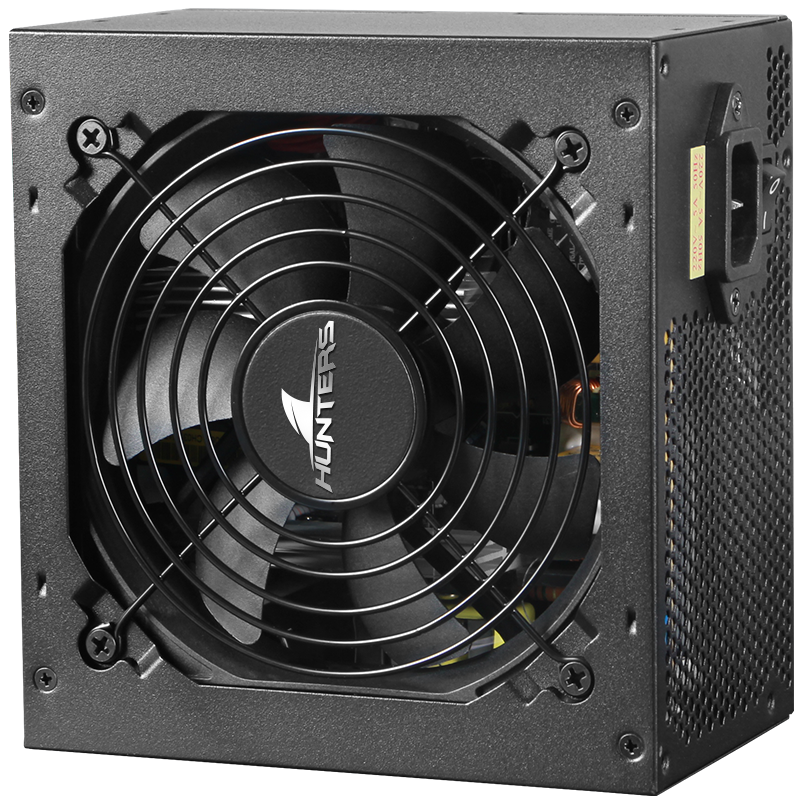

GW-A650BHE-SC
Certified with 80PLUS, delivering up to 85% energy efficiency.;
Single +12V high-current rail unleashes full performance for high-end CPUs and GPUs.;
Innovative active PFC with dual forward and DC-DC topology ensures reliable and efficient power delivery.;
DC-DC design for the 3.3V output provides enhanced power stability.；
Extra-long output cables support full-sized and next-generation tower cases..
specifications
| Efficiency Certification | 80PLUS Standard |
| Product Part Number | 5194606 |
| Promotional Name | P6 Standard Fixed Cable |
| ATX Version | ATX2.31 |
| Power | 650W |
| Power Supply Dimensions | 140*150*86 |
| Fan Size | 120mm |
| AC Connector | |
| Input Voltage Range | 220V |
| Color | Black |
| Cable Output Type | Fixed Cable |
| Warranty Period | 5 Years |
| Carton Specification | 8 units per carton |
| Certification | CCC |
| Product Selling Points | |
| ATX 24-PIN Cable Length | 500 |
| CPU Cable Length | 600+150 |
| Number of CPU Connectors | 2 |
| PCI-E 6+2 Cable Length | 430+150 |
| Number of PCI-E 6+2 Connectors | 4 |
| PCIe 5.1 Cable Length | / |
| Number of PCIe 5.1 Connectors | / |
| SATA Cable Length | 300+150/400+150 |
| Number of SATA Connectors | 5 |
| Number of SATA 3.3 Connectors | |
| L4P Cable Length | 600/550+150 |
| Number of L4P Connectors | 4 |
| Remarks | Cable length and connector types may vary by version; please refer to the actual product for accurate specifications. |
