节能巨龙（CQCIII）

Energy-Saving Titan

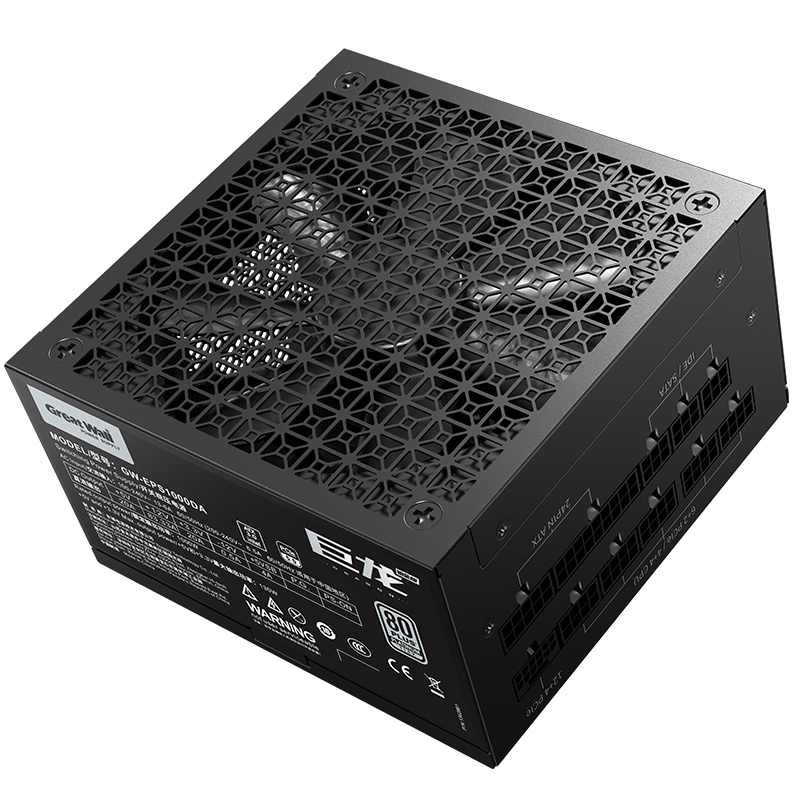

GW-EPS1000DA (Box)

Intel ATX 3.0

PCIe 5.0 Interface、Active PFC

Suitable for high-end system configurations.

specifications

Model List

Series Title	Watt	Efficiency	ATX Rev	Description	Input Volage	Dimension (L)(W)(H)(mm) Non_Chasis	Fan Dimension	Safety	Switch	Altitude	100% Load Efficiency	Cable type	ATX 24PIN Cable Length	CPU Cable Length	CPU Connectors	PCI-E 6+2 Cable Length	PCI-E 6+2 Connectors	PCIe 5.1 Cable Length	PCIe 5,1. Connectors	SATA Connectors	L4P Connectors	S4P Connectors	Data Download	Certification Standards	Technical Manual
Energy-Saving Titan Energy-Saving Titan																							-	-	-
GW-EPS1250DA (Box) GW-EPS1250DA (Box)	1250	92+	ATX3.0			17515086	14	CCC/CE/CB、80PLUS Platinum	Yes	≤5000	≥92%	Module	610	650	2	600~150	4	600	1	12	4	0
GW-EPS1000DA (Box) GW-EPS1000DA (Box)	1000	92+	ATX3.0			17515086	14	CCC/CE/CB、80PLUS Platinum	Yes	≤5000	≥92%	Module	610	650	2	600~150	4	600	1	12	4	0
GW-EPS850DA MW (Box) GW-EPS850DA MW (Box)	850	CQCIII				15015086	14	CCC、CQCIII、CE、80PLUS Platinum	Yes	≤5000	≥92%	Module	610	650	2	600~150	4	675	1	9	3	0
GW-EPS750DA MW (Box) GW-EPS750DA MW (Box)	750	CQCIII		White casing, PCIe 5.0 interface, Level III energy efficiency certification (CQC III), efficiency up to 92%.		15015086	14	CCC、CQCIII、CE	Yes	≤5000	≥92%	Module	610	500~200	2	600~150	2	675	1	6	3	0
GW-EPS850DRMW (Box) GW-EPS850DRMW (Box)	850	CQCIII				14015086	12	CCC、CQCIII、CE	Yes	≤5000	≥92%	Module	610	650	2	600~150	4	675	1	6	3	0
GW-EPS750DRMW (Box) GW-EPS750DRMW (Box)	750	CQCIII				14015086	12	CCC、CQCIII、CE	Yes	≤5000	≥92%	Module	610	500~200	2	600~150	2	675	1	6	3	0
