HAIWANGXING

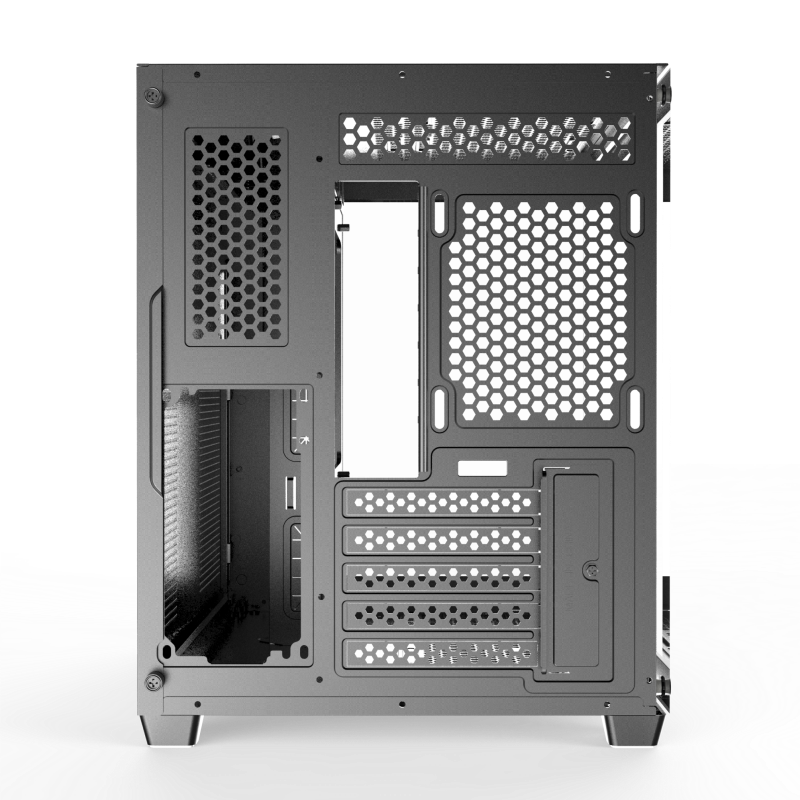

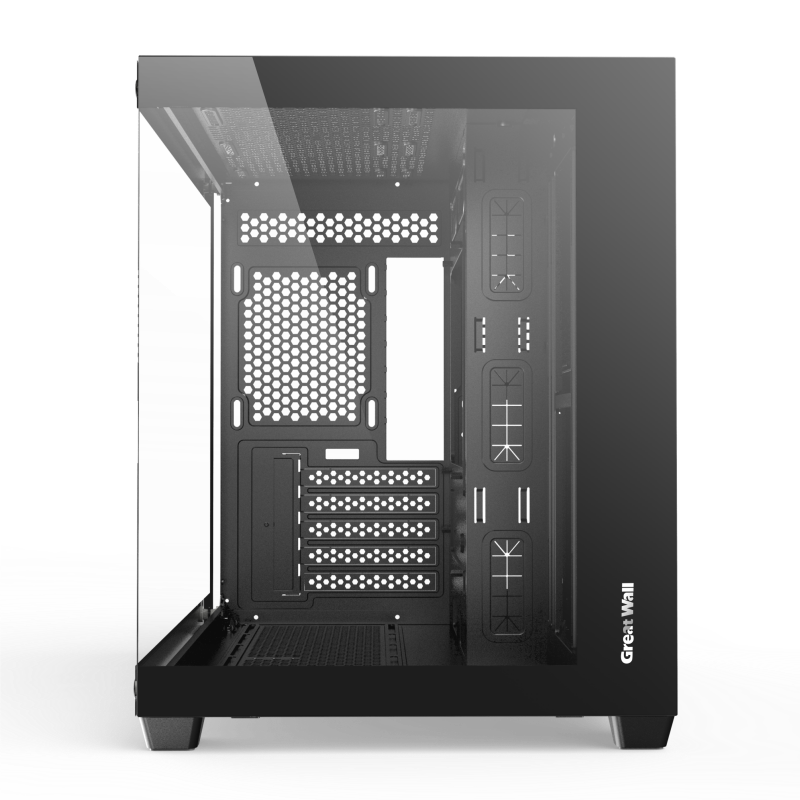

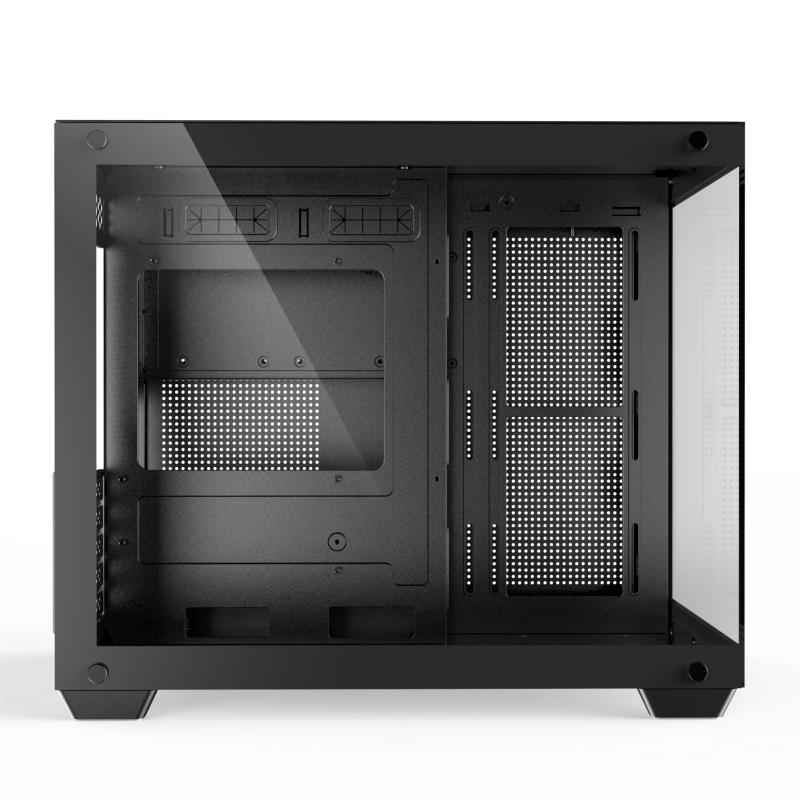

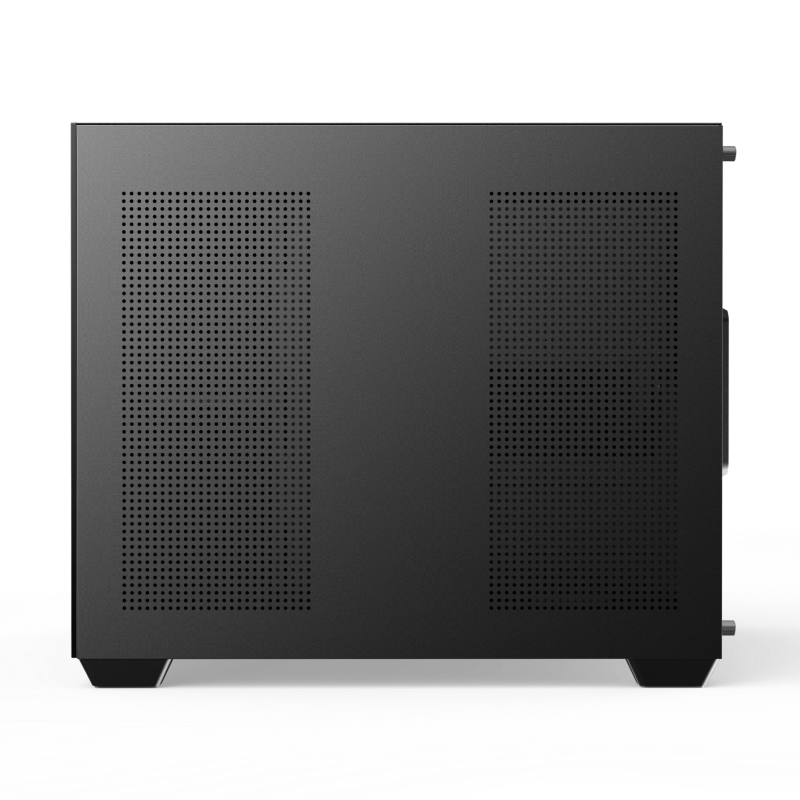

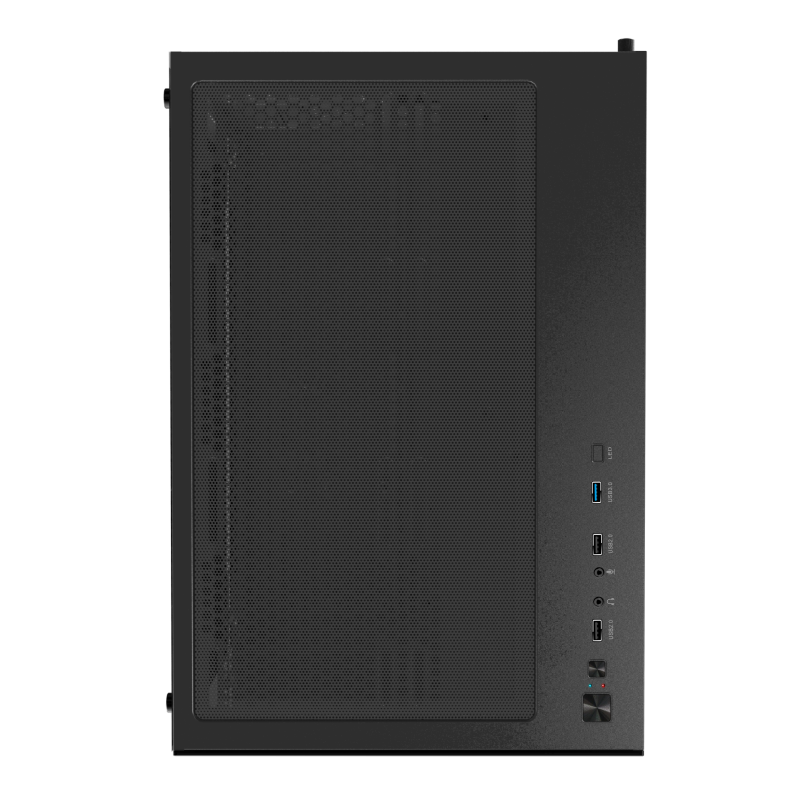

HAIWANGXING T6W
Minimalist Dual-Glass Design
Wide-Body Chassis
Advanced Cooling Support, Supports Up to 13 Cooling Fans
Built-in USB Type-C Port
specifications
| Product Type | |
| Color | White |
| Front Panel | Glass |
| Left Side Panel Material | Glass |
| Product Dimensions (mm) | L424xW285xH370mm |
| Metal Parts Dimensions (mm) | L420xW285xH350mm |
| Compatible Motherboards | MicroATX/ITX |
| Rear I/O Motherboard Support | No |
| Optical Drive Bays | No |
| 3.5" HDD Bays | 1 |
| SSD Mounting Slots | 2 |
| Water Cooling Support | Rear side：120mm Top side：360/280mm |
| Fan Mounting Positions | Side face：12cmx2/14cmx2 Rear side：12cmx1 Top side：12cmx3/14cmx2 Bottom side: 12cmx3 |
| CPU Cooler Height Limit | 160mm |
| GPU Length Limit | 400mm |
| Number of PCI Slots | 5 |
| PSU Position | Bottom |
| PSU Length Limit | 200mm |
| USB2.0 | 2 |
| USB3.0 | 1 |
| USB-C | No |
| Audio Ports | Micx1,Spkx1 |
| Outer Carton Dimensions (mm) | L410xW345xH520mm |
| Net Weight (Kg) | 5.6Kg |
| Gross Weight (Kg) | 6.8Kg |
