AI
AI09
Features
Supports SSI-EEB Server Motherboards, Designed for high-end computing environments
258mm Wide Heavy-Duty Metal Frame
Multi-Position High-Performance Water Cooling Support, up to 480mm

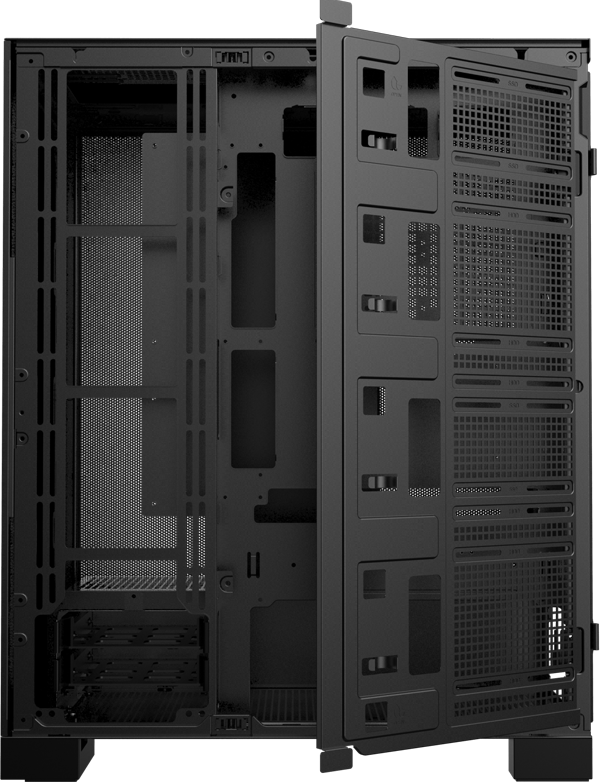

Hinged Hard Drive Cage & Hidden Cable Routing
9 PCI Expansion Slots

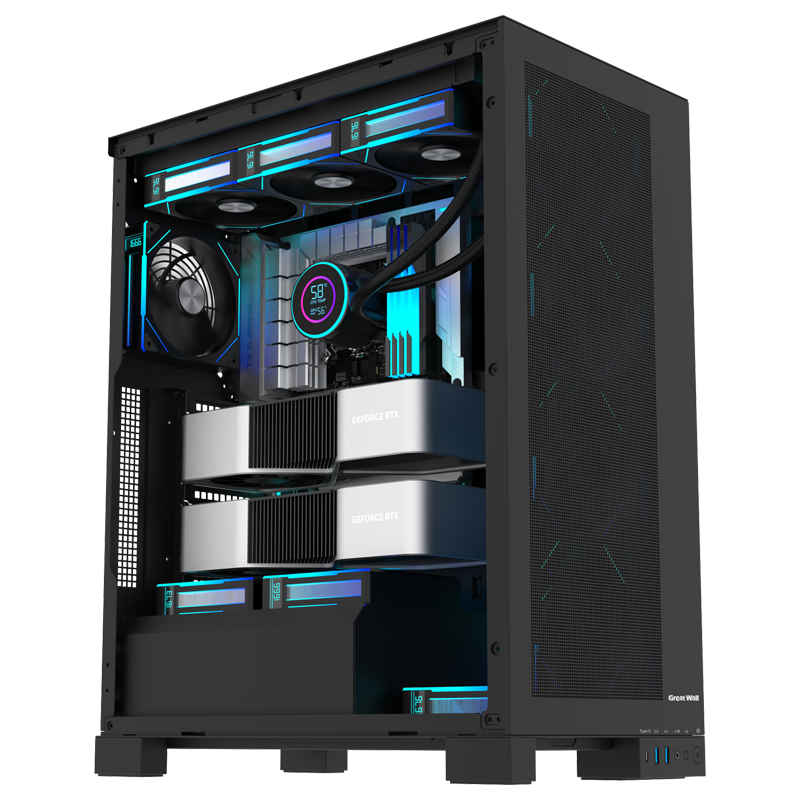

Up to 4 dual-slot GPUs (thickness < 40mm)
Up to 3 triple-slot GPUs (thickness between 40–60mm)
Up to 2 triple-slot GPUs (thickness > 60mm)
specifications
| Product Type | |
| Color | Black |

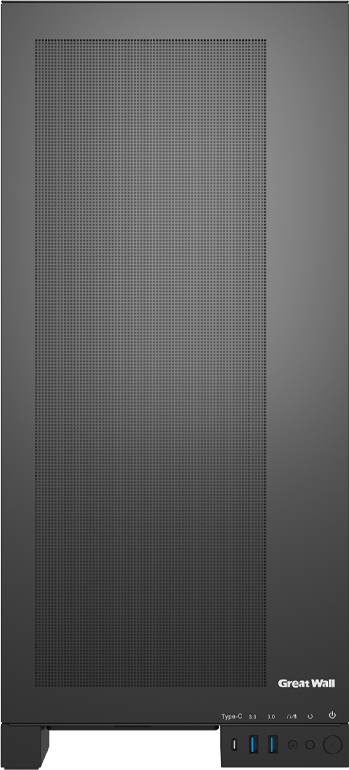

| Front Panel | Metal |
| Left Side Panel Material | Iron |
| Product Dimensions (mm) | L451xW258xH570mm |
| Metal Parts Dimensions (mm) | L451xW258xH537mm |
| Compatible Motherboards | SSI-EEB/E-ATX/ATX/MicroATX |
| Rear I/O Motherboard Support | No |
| Optical Drive Bays | No |
| 3.5" HDD Bays | 3.5"x5 |
| SSD Mounting Slots | 2.5"x3 |
| Water Cooling Support | Front side：420mm/360mm/280mm <br/>Top side:360mm/280mm/240mm <br/>Side face:480mm/420mm/360mm |
| Fan Mounting Positions | Front side:12cmx4/14cmx3 <br/>Rear side:12cmx1/14cmx1 <br/>Side face:12cmx4/14cmx3 <br/>Top side:12cmx3/14cmx3 <br/>PSU Bay：12cmx2 <br/>Fan Guard：12cmx1 |
| CPU Cooler Height Limit | 180mm |
| GPU Length Limit | 420mm |
| Number of PCI Slots | 9 |
| PSU Position | Bottom |
| PSU Length Limit | 250mm |
| USB2.0 | No |
| USB3.0 | 2 |
| USB-C | 1 |
| Audio Ports | Mic/Spk 2-in-1 |
| Outer Carton Dimensions (mm) | L622xW345xH557mm |
| Net Weight (Kg) | 10.6Kg |
| Gross Weight (Kg) | 12.6Kg |
