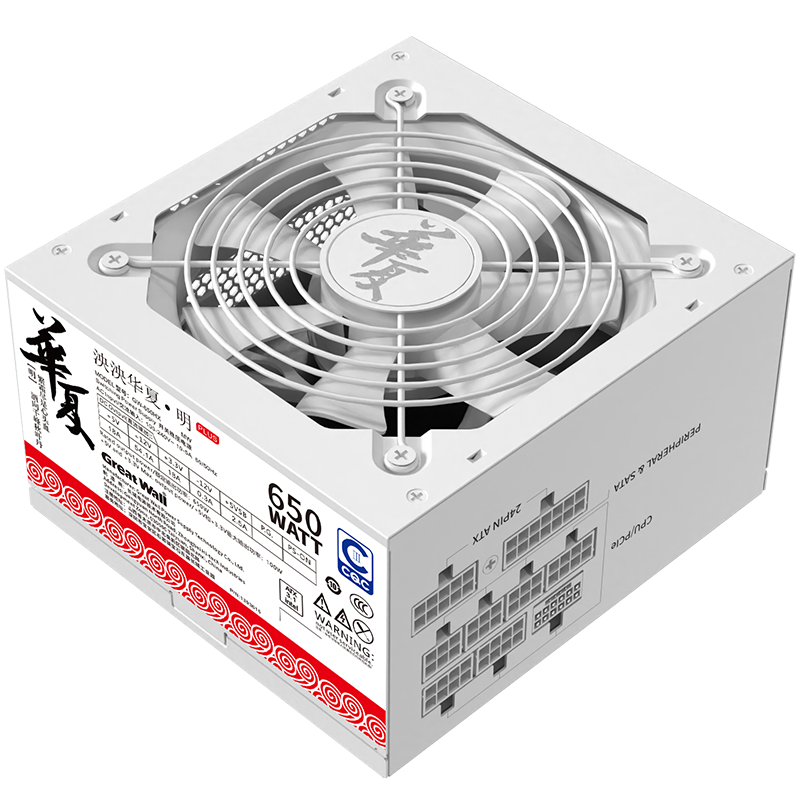

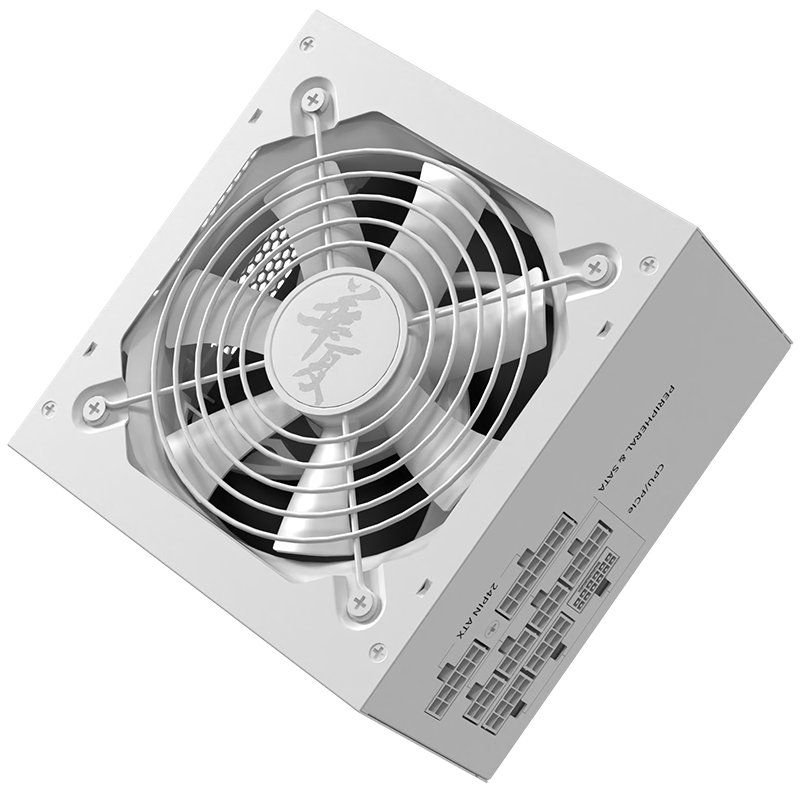

GW-650HX MW 3 (Box)

ATX3.1

Efficiency up to 92%

CQC Grade 3 Energy Efficiency（CQC III）



specifications
Altitude ≤5000
100% Load Efficiency ≥92%

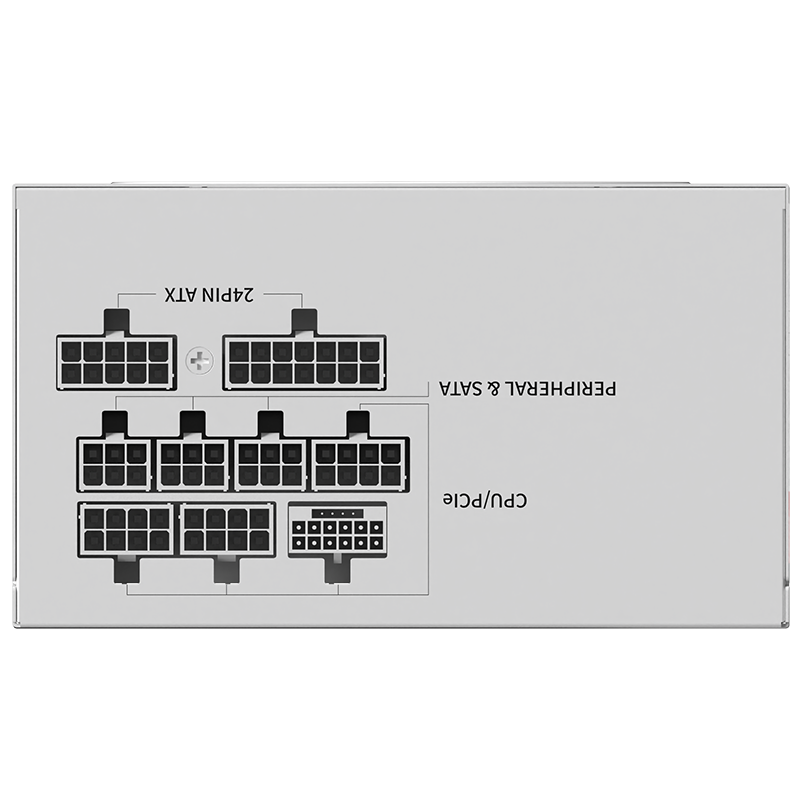

Cable type Module
ATX 24PIN Cable Length 610
CPU Cable Length 500~200
CPU Connectors 2
PCI-E 6+2 Cable Length 600~150
PCI-E 6+2 Connectors 2
PCIe 5.1 Cable Length
PCIe 5,1. Connectors
Watt 650
SATA Connectors 4
L4P Connectors 2
Efficiency CQCIII
ATX Rev ATX3.1
Description
Input Volage
S4P Connectors 0
Dimension (L)*(W)*(H)(mm) Non_Chasis 140*150*86
Fan Dimension 12
Safety CCC、CQCIII、CE
Switch Yes
Model List
Series Title Watt Efficiency ATX Rev Description Input Volage Dimension (L)*(W)*(H)(mm) Non_Chasis Fan Dimension Safety Switch Altitude 100% Load Efficiency Cable type ATX 24PIN Cable Length CPU Cable Length CPU Connectors PCI-E 6+2 Cable Length PCI-E 6+2 Connectors PCIe 5.1 Cable Length PCIe 5,1. Connectors SATA Connectors L4P Connectors S4P Connectors Data Download Certification Standards Technical Manual
HUAXIA
HUAXIA
-
-
-
GW-850HX 3 (Box)
GW-850HX 3 (Box)
 850 CQCIII ATX3.1 140*150*86 12 CCC、CQCIII、CE Yes ≤5000 ≥92% Module 610 650 2 600~150 4 600 1 6 3 0
GW-850HX MW 3 (Box)
GW-850HX MW 3 (Box)
 850 CQCIII ATX3.1 140*150*86 12 CCC、CQCIII、CE Yes ≤5000 ≥92% Module 610 650 2 600~150 4 600 1 6 3 0
GW-750HX 3 (Box)
GW-750HX 3 (Box)
 750 CQCIII ATX3.1 140*150*86 12 CCC、CQCIII、CE Yes ≤5000 ≥92% Module 610 650 2 600~150 2 600 1 6 3 0
GW-750HX MW 3 (Box)
GW-750HX MW 3 (Box)
 750 CQCIII ATX3.1 140*150*86 12 CCC、CQCIII、CE Yes ≤5000 ≥92% Module 610 650 2 600~150 2 600 1 6 3 0
GW-650HX 3 (Box)
GW-650HX 3 (Box)
 650 CQCIII ATX3.1 140*150*86 12 CCC、CQCIII、CE Yes ≤5000 ≥92% Module 610 500~200 2 600~150 2 4 2 0
GW-650HX MW 3 (Box)
GW-650HX MW 3 (Box)
 650 CQCIII ATX3.1 140*150*86 12 CCC、CQCIII、CE Yes ≤5000 ≥92% Module 610 500~200 2 600~150 2 4 2 0
