风火轮(CQCI)

FENGHUOLUN(CQCI)

GW-750F (Box)

CQC Grade 1 Energy Efficiency(CQC I),Efficiency up to 86%

Intel ATX 3.0, PCIe 5.0 Interface

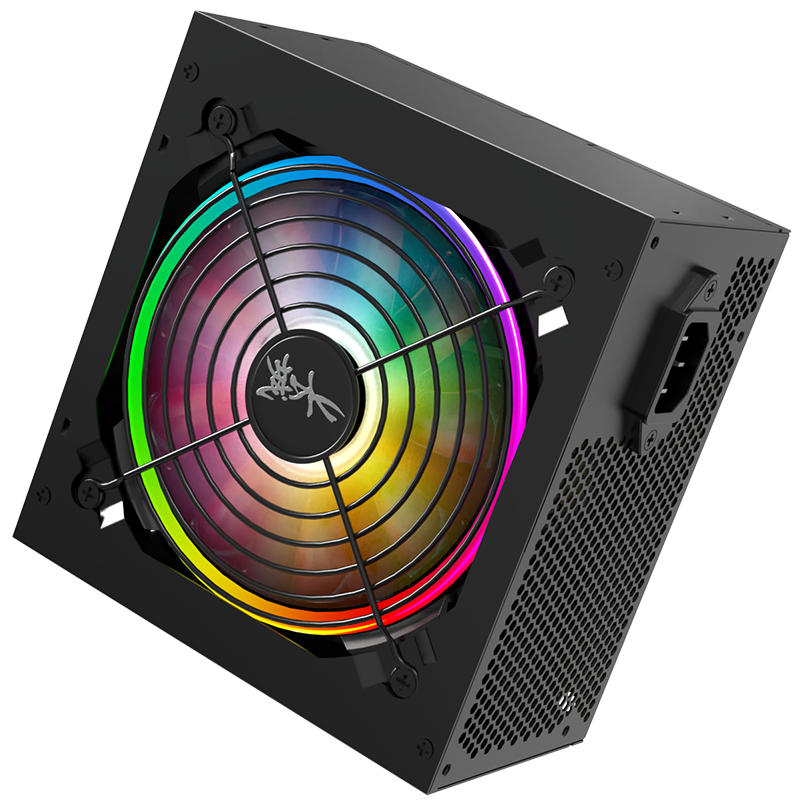

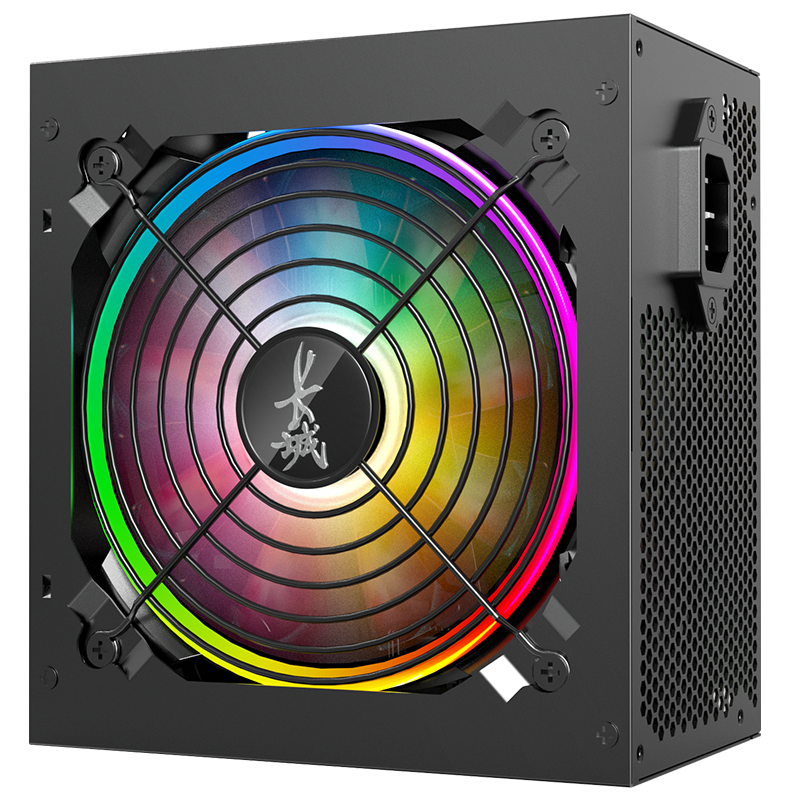

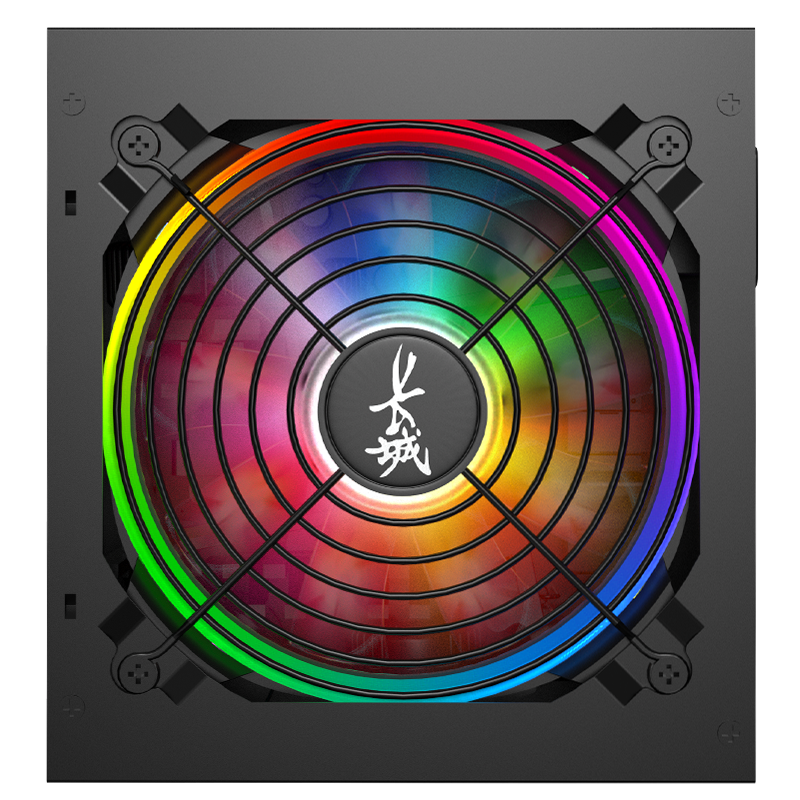

Fully Black wire, Four (6+2) PCI-E connectors, RGB Fan

specifications
Altitude ≤5000
100% Load Efficiency ≥85%
Cable type Fixed Cable
ATX 24PIN Cable Length 500
CPU Cable Length 650~150
CPU Connectors 2
PCI-E 6+2 Cable Length 420~150
PCI-E 6+2 Connectors 4
PCIe 5.1 Cable Length 520
PCIe 5,1. Connectors 1
Watt 850
SATA Connectors 4
L4P Connectors 2
Efficiency CQCI
ATX Rev ATX3.0
Description
Input Volage
S4P Connectors 0
Dimension (L)*(W)*(H)(mm) Non_Chasis 140*150*86
Fan Dimension 12
Safety CCC、CQCI
Switch
Model List
Series Title Watt Efficiency ATX Rev Description Input Volage Dimension (L)*(W)*(H)(mm) Non_Chasis Fan Dimension Safety Switch Altitude 100% Load Efficiency Cable type ATX 24PIN Cable Length CPU Cable Length CPU Connectors PCI-E 6+2 Cable Length PCI-E 6+2 Connectors PCIe 5.1 Cable Length PCIe 5,1. Connectors SATA Connectors L4P Connectors S4P Connectors Data Download Certification Standards Technical Manual
FENGHUOLUN(CQCI)
-
-
-
GW-750F (Box)
850 CQCI ATX3.0 140*150*86 12 CCC、CQCI ≤5000 ≥85% Fixed Cable 500 650~150 2 420~150 4 520 1 4 2 0
GW-850F (Box)
750 CQCI ATX3.0 140*150*86 12 CCC、CQCI ≤5000 ≥85% Fixed Cable 500 650~150 2 420~150 4 520 1 4 2 0
GW-650F (Box)
650 CQCI ATX3.0 140*150*86 12 CCC、CQCI ≤5000 ≥85% Fixed Cable 500 650~150 2 450~150 2 2 2 0
