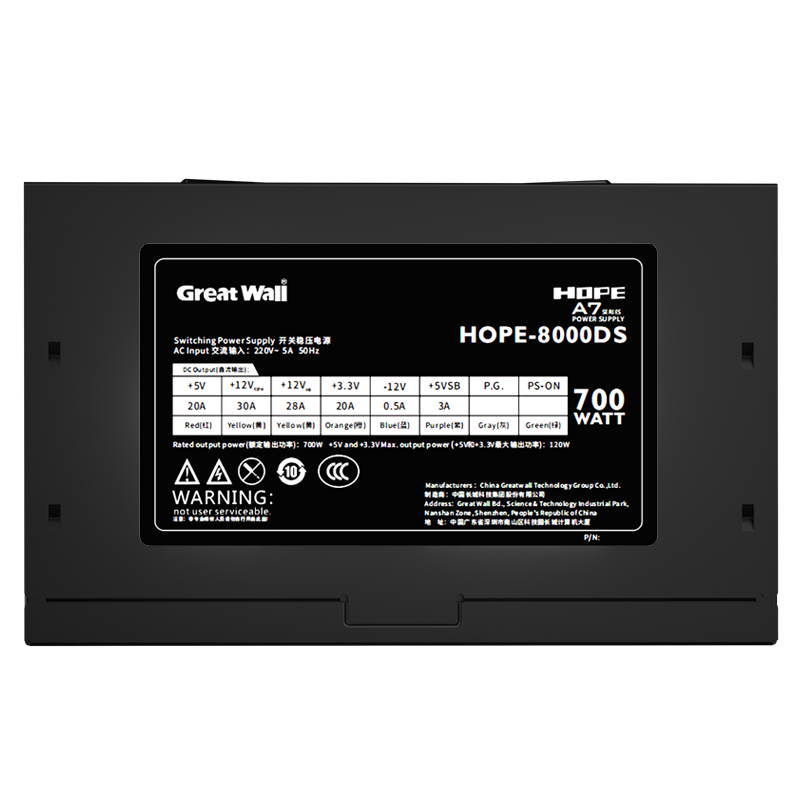

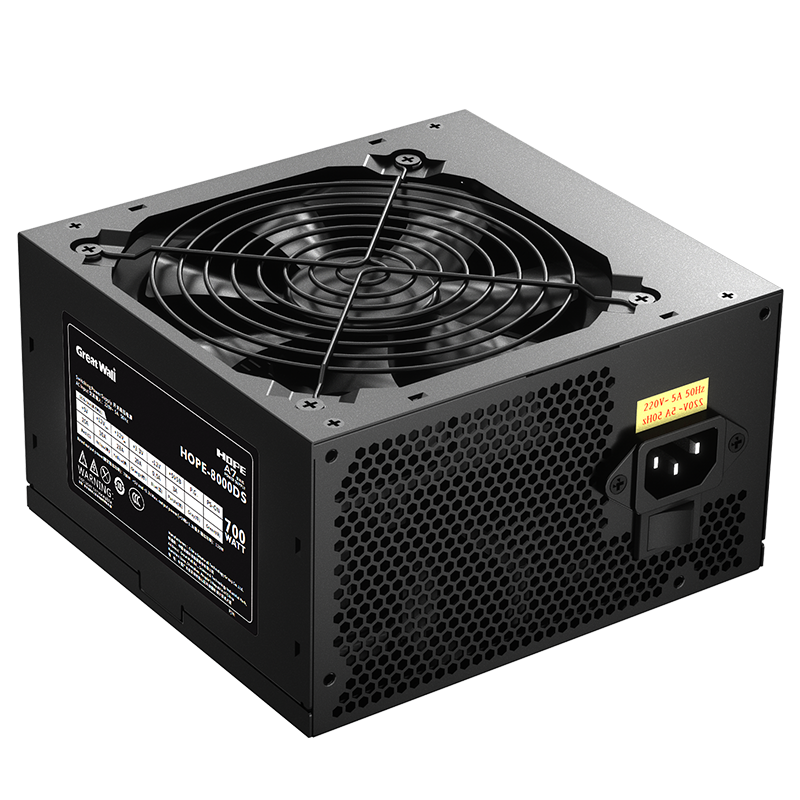

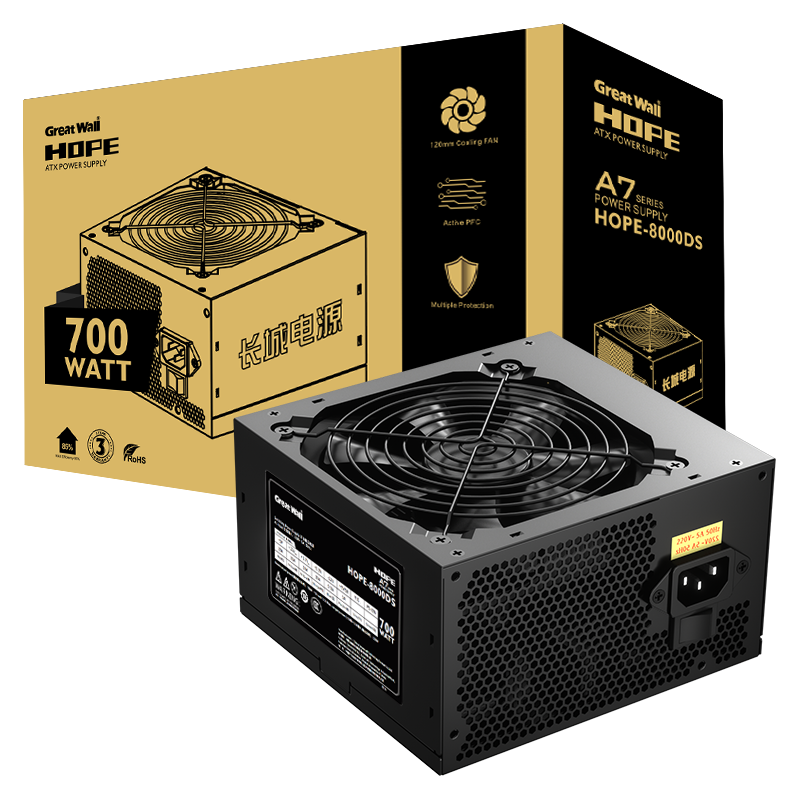

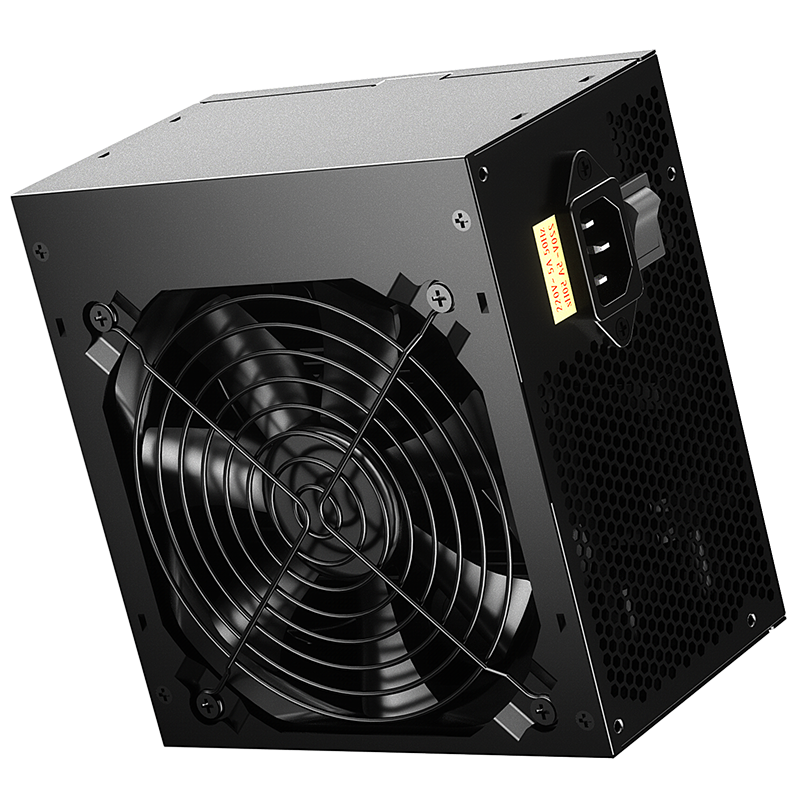

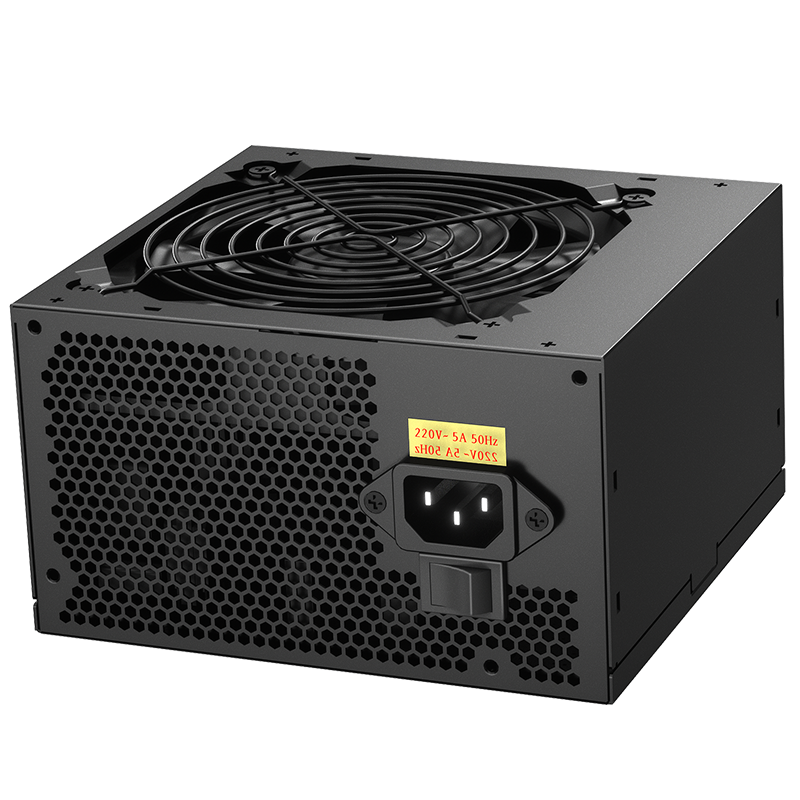

HOPE-8000DS  (Box)

5 sets SATA,Optimized for rear cable routing.

Active PFC, PF≥0.90

Dual-Switch Forward Converter with peak efficiency up to 74%.

Compliant with national power efficiency certification.

specifications
Altitude ≤5000
100% Load Efficiency ≥85%
Cable type Fixed Cable
ATX 24PIN Cable Length 500
CPU Cable Length 600~150
CPU Connectors 2
PCI-E 6+2 Cable Length 450~150
PCI-E 6+2 Connectors 4
PCIe 5.1 Cable Length
PCIe 5,1. Connectors
Watt 700
SATA Connectors 4
L4P Connectors 2
Efficiency
ATX Rev
Description
Input Volage
S4P Connectors 0
Dimension (L)*(W)*(H)(mm) Non_Chasis 140*150*86
Fan Dimension 12
Safety CCC
Switch
Model List
Series Title Watt Efficiency ATX Rev Description Input Volage Dimension (L)*(W)*(H)(mm) Non_Chasis Fan Dimension Safety Switch Altitude 100% Load Efficiency Cable type ATX 24PIN Cable Length CPU Cable Length CPU Connectors PCI-E 6+2 Cable Length PCI-E 6+2 Connectors PCIe 5.1 Cable Length PCIe 5,1. Connectors SATA Connectors L4P Connectors S4P Connectors Data Download Certification Standards Technical Manual
HOPE
HOPE
-
-
-
HOPE-9500DS
HOPE-9500DS
 700 140*150*86 12 CCC ≤5000 ≥85% Fixed Cable 500 600~150 2 450~150 4 4 2 0
HOPE-9000DS  (Box)
HOPE-9000DS  (Box)
 700 140*150*86 12 CCC ≤5000 ≥85% Fixed Cable 500 600~150 2 450~150 4 4 2 0
HOPE-8000DS  (Box)
HOPE-8000DS  (Box)
 700 140*150*86 12 CCC ≤5000 ≥85% Fixed Cable 500 600~150 2 450~150 4 4 2 0
HOPE-7000DS (Box)
HOPE-7000DS (Box)
 600 140*150*86 12 CCC ≤5000 ≥84% Fixed Cable 500 600~150 2 450~150 2 4 2 0
HOPE-6000DS (Box)
HOPE-6000DS (Box)
 500 140*150*86 12 CCC ≤5000 ≥74% Fixed Cable 500 600~150 2 450~150 2 4 2 0
HOPE-5500ZK (Box)
HOPE-5500ZK (Box)
 400 140*150*86 12 CCC ≤5000 ≥74% Fixed Cable 500 600~150 2 450~150 2 4 2 0
HOPE-5000DS (Box)
HOPE-5000DS (Box)
 400 140*150*86 12 CCC ≤5000 ≥74% Fixed Cable 500 600~150 2 450~150 2 4 2 0
HOPE-4500DS (Box)
HOPE-4500DS (Box)
 400 140*150*86 12 CCC ≤5000 ≥74% Fixed Cable 500 600~150 2 450~150 2 4 2 0
