Aegis​

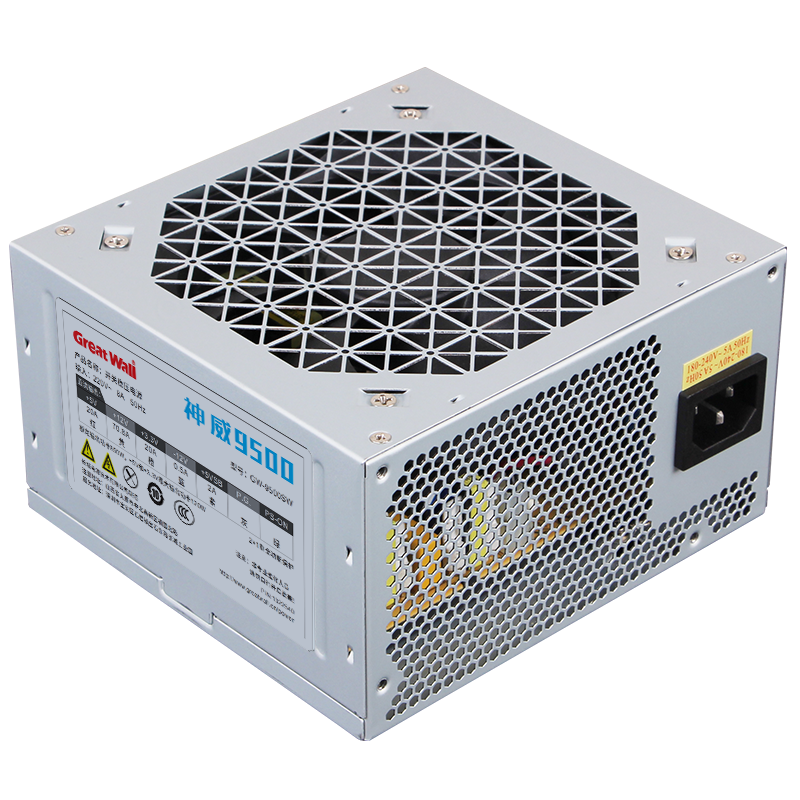

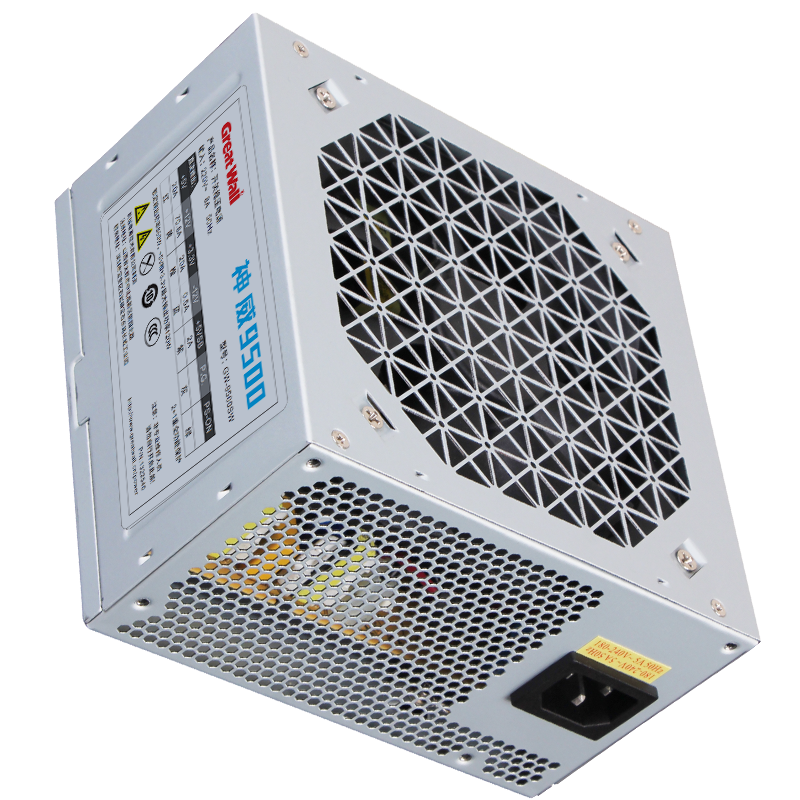

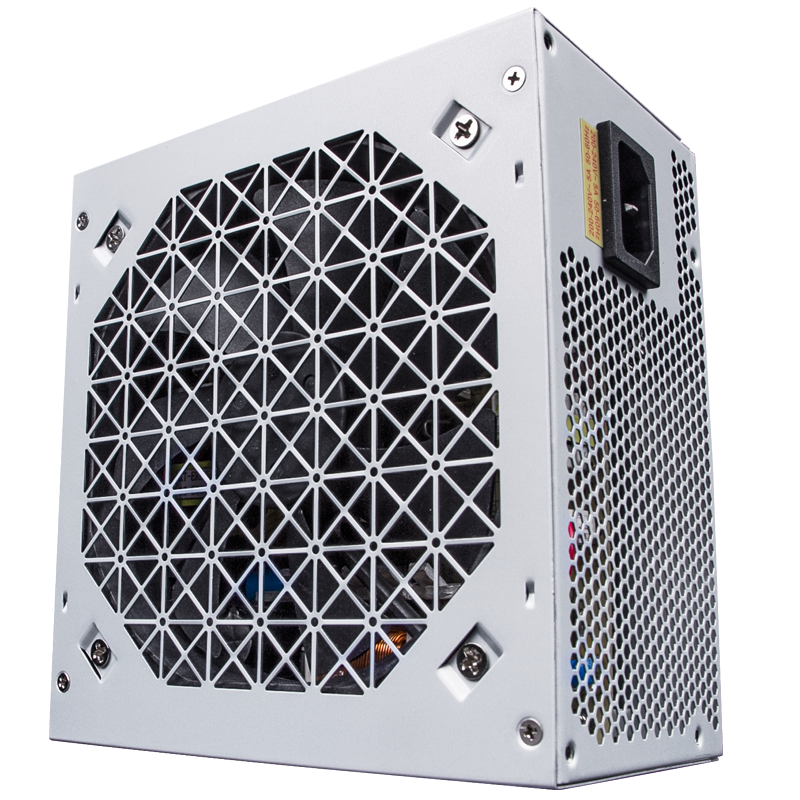

GW-9500SW (Box)

  • Intel ATX 3.1、

  • CQC Grade 1 Energy Efficiency（CQC I）、

  • Input Voltage Range：180Vac~264Vac

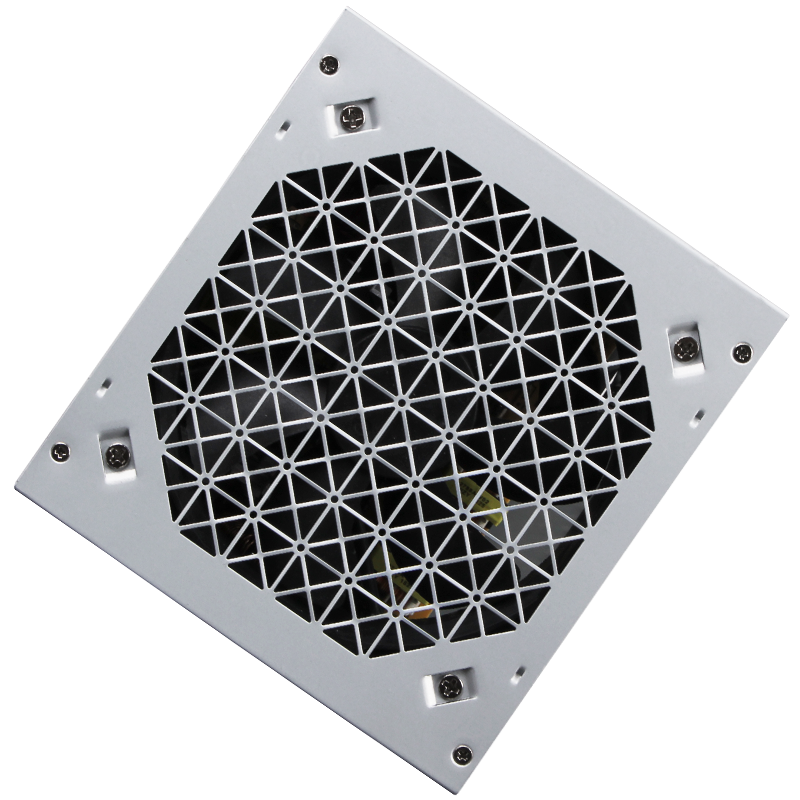

  • 12cm temperature-controlled silent fan with reliable quality and outstanding noise reduction.、

  • Support internal cable routing，

  • 16-pin 12VHPWR connector

specifications
Altitude ≤5000
100% Load Efficiency ≥85%
Cable type Fixed Cable
ATX 24PIN Cable Length 500
CPU Cable Length 650~150
CPU Connectors 2
PCI-E 6+2 Cable Length 420~150
PCI-E 6+2 Connectors 4
PCIe 5.1 Cable Length
PCIe 5,1. Connectors
Watt 850
SATA Connectors 2
L4P Connectors 2
Efficiency CQCI
ATX Rev
Description
Input Volage
S4P Connectors 0
Dimension (L)*(W)*(H)(mm) Non_Chasis 140*150*86
Fan Dimension 12
Safety CCC、CQCI
Switch
Model List
Series Title Watt Efficiency ATX Rev Description Input Volage Dimension (L)*(W)*(H)(mm) Non_Chasis Fan Dimension Safety Switch Altitude 100% Load Efficiency Cable type ATX 24PIN Cable Length CPU Cable Length CPU Connectors PCI-E 6+2 Cable Length PCI-E 6+2 Connectors PCIe 5.1 Cable Length PCIe 5,1. Connectors SATA Connectors L4P Connectors S4P Connectors Data Download Certification Standards Technical Manual
Aegis​
Aegis​
-
-
-
GW-9500SW (Box)
GW-9500SW (Box)
 850 CQCI 140*150*86 12 CCC、CQCI ≤5000 ≥85% Fixed Cable 500 650~150 2 420~150 4 2 2 0
GW-9000SW (Box)
GW-9000SW (Box)
 800 140*150*86 12 CCC、CQCI ≤5000 ≥85% Fixed Cable 500 650~150 2 420~150 4 2 2 0
GW-8500SW (Box)
GW-8500SW (Box)
 750 CQCI 140*150*86 12 CCC、CQCI ≤5000 ≥85% Fixed Cable 500 650~150 2 420~150 4 2 2 0
GW-8000SW
GW-8000SW
 700 140*150*86 12 CCC ≤5000 ≥85% Fixed Cable 500 600~150 2 450~150 4 4 2 0
GW-7500SW (Box)
GW-7500SW (Box)
 650 140*150*86 12 CCC ≤5000 ≥84% Fixed Cable 500 600~150 2 450~150 2 4 2 0
GW-7000SW
GW-7000SW
 600 140*150*86 12 CCC ≤5000 ≥84% Fixed Cable 500 600~150 2 450~150 4 4 2 0
GW-6500SW (Box)
GW-6500SW (Box)
 550 140*150*86 12 CCC ≤5000 ≥84% Fixed Cable 500 600~150 2 450~150 2 4 2 0
GW-6000SW
GW-6000SW
 500 140*150*86 12 CCC ≤5000 ≥74% Fixed Cable 500 600~150 2 450~150 2 4 2 0
GW-5500SW (Box)
GW-5500SW (Box)
 450 140*150*86 12 CCC ≤5000 ≥74% Fixed Cable 500 580 2 450 1 3 2 0
GW-5000SW
GW-5000SW
 400 140*150*86 12 CCC ≤5000 ≥74% Fixed Cable 500 580&630 2 450~150 2 3 2 0
GW-4500SW (Box)
GW-4500SW (Box)
 350 140*150*86 12 CCC ≤5000 ≥74% Fixed Cable 500 580 2 450 1 3 2 0
GW-4000SW
GW-4000SW
 300 140*150*86 12 CCC ≤5000 ≥66% Fixed Cable 500 580 1 450 1 3 2 0
