金牌巨龙

GOLD DRAGON

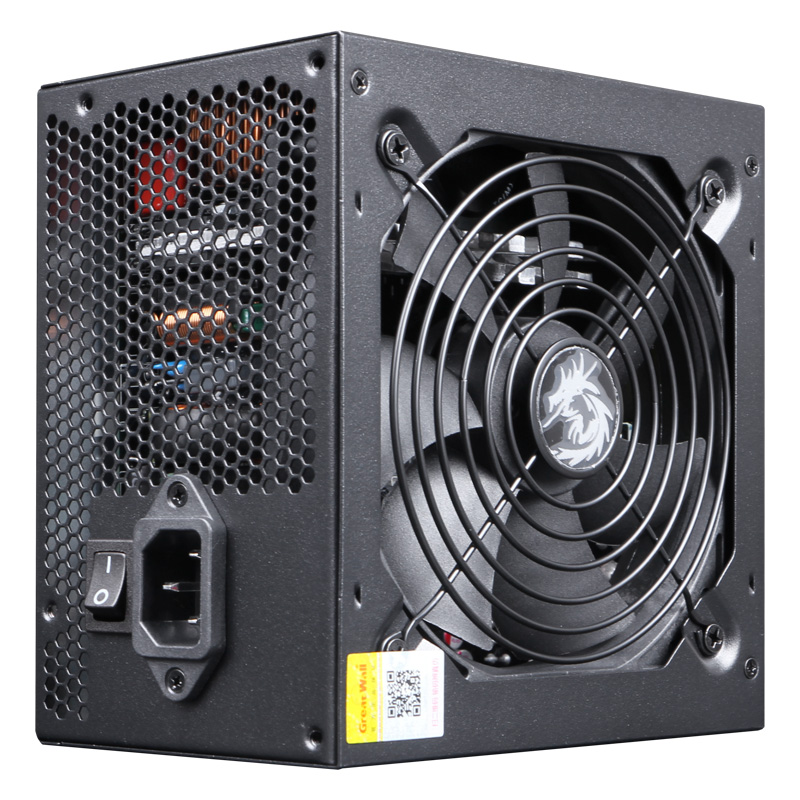

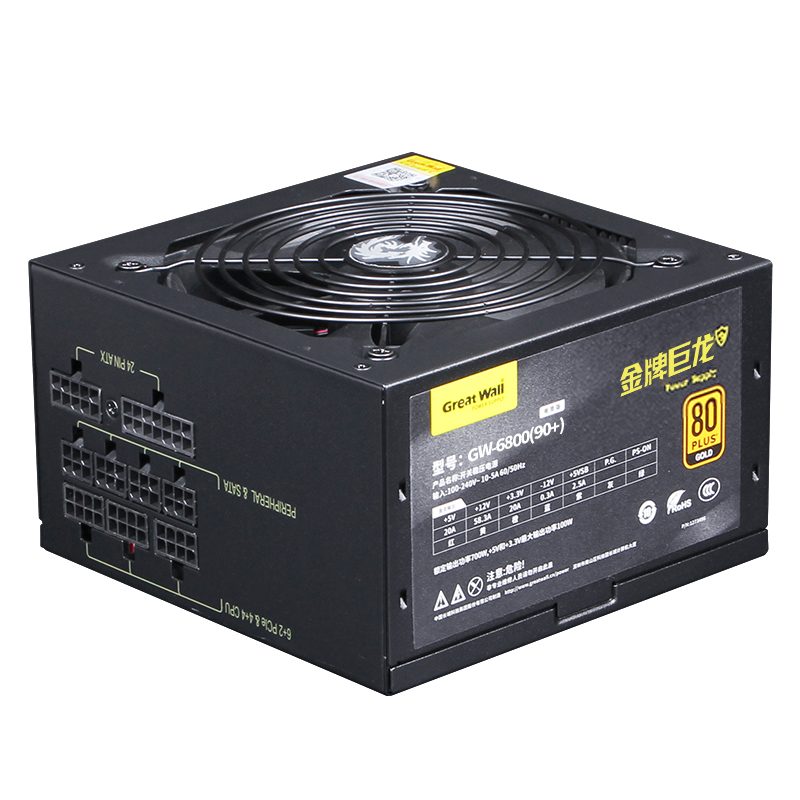

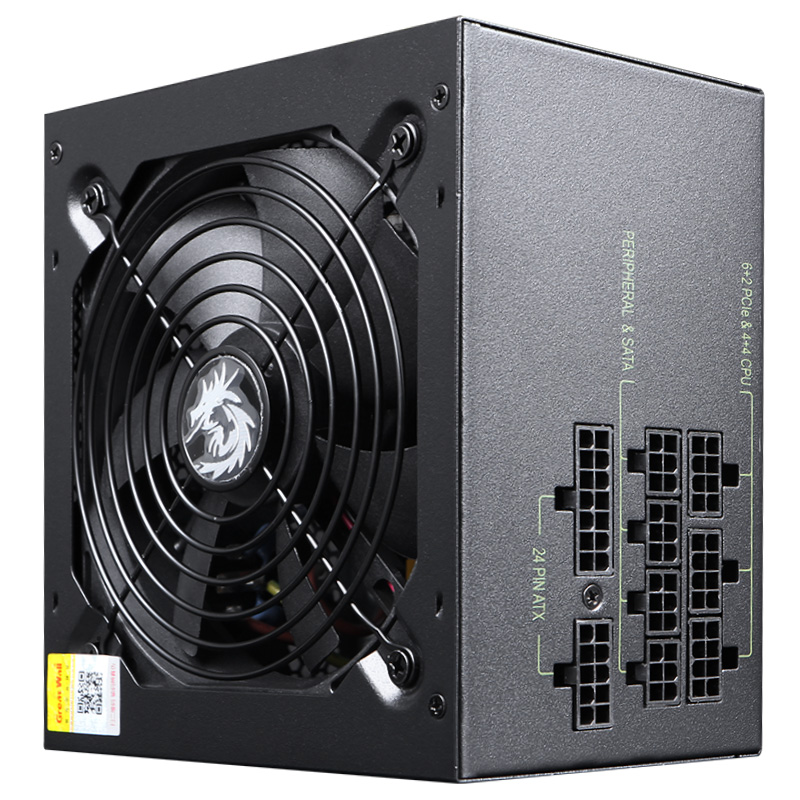

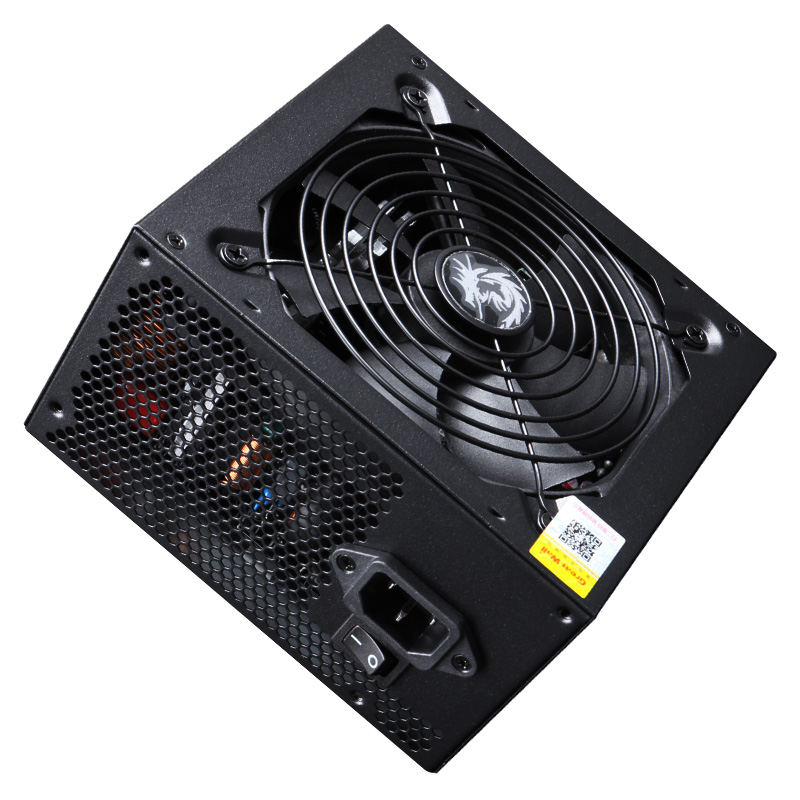

GW-6800(90+) (Gaming Edition, Box)

Fully Modular,80Plus Golden,Active PFC

MTBF＞100000hrs

Dual Ball Bearing Fan, Military-Grade Quality, Support internal cable routing

specifications
Altitude ≤5000
100% Load Efficiency ＞90%
Cable type Module
ATX 24PIN Cable Length 610
CPU Cable Length 500~200
CPU Connectors 2
PCI-E 6+2 Cable Length 600~150
PCI-E 6+2 Connectors 4
PCIe 5.1 Cable Length
PCIe 5,1. Connectors
Watt 600
SATA Connectors 3
L4P Connectors 3
Efficiency 90+
ATX Rev
Description
Input Volage
S4P Connectors 0
Dimension (L)*(W)*(H)(mm) Non_Chasis 140*150*86
Fan Dimension 12
Safety CCC、80PLUS Gold
Switch
Model List
Series Title Watt Efficiency ATX Rev Description Input Volage Dimension (L)*(W)*(H)(mm) Non_Chasis Fan Dimension Safety Switch Altitude 100% Load Efficiency Cable type ATX 24PIN Cable Length CPU Cable Length CPU Connectors PCI-E 6+2 Cable Length PCI-E 6+2 Connectors PCIe 5.1 Cable Length PCIe 5,1. Connectors SATA Connectors L4P Connectors S4P Connectors Data Download Certification Standards Technical Manual
GOLD DRAGON
GOLD DRAGON
-
-
-
GW-EPS2000BL(90+) (Gaming Edition, Box)
GW-EPS2000BL(90+) (Gaming Edition, Box)
 2000 90+ 175*150*86 14 CCC、80PLUS Gold Yes ≤5000 ≥92% Module 610 650 2 600 8 675 2 12 6 0
GW-EPS1250DA(90+) (Gaming Edition, Box)
GW-EPS1250DA(90+) (Gaming Edition, Box)
 1250 90+ ATX 3.1 100-240 150*150*86 14 CCC、80PLUS Gold Yes ≤2000 ＞92% Module 610 650 2 600 4 600 1 12 4 0
GW-EPS1000DA (90+) (Gaming Edition, Box)
GW-EPS1000DA (90+) (Gaming Edition, Box)
 1000 90+ ATX 3.1 100-240 150*150*86 14 CCC、80PLUS Gold Yes ≤2000 ＞92% Module 610 650 2 600 84 600 1 12 4 0
GW-EPS800DA(90+) (Gaming Edition, Box)
GW-EPS800DA(90+) (Gaming Edition, Box)
 800 90+ 140*150*86 12 CCC、80PLUS Gold ≤2000 ＞90% Module 610 650 2 600~150 6 9 3 0
GW-800SE(90+) (Gaming Edition, Box)
GW-800SE(90+) (Gaming Edition, Box)
 700 90+ 140*150*86 12 CCC、80PLUS Gold ≤5000 ＞90% Module 610 500~200 2 600~150 4 6 3 0
GW-6800(90+) (Gaming Edition, Box)
GW-6800(90+) (Gaming Edition, Box)
 600 90+ 140*150*86 12 CCC、80PLUS Gold ≤5000 ＞90% Module 610 500~200 2 600~150 4 3 3 0
