FIRE
FIRE（Platinum）

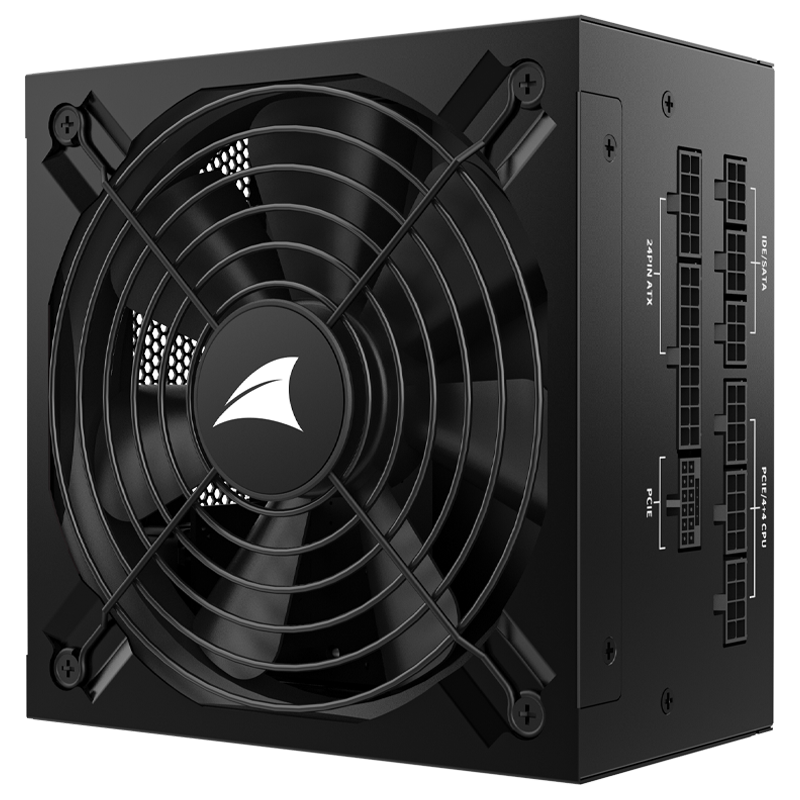

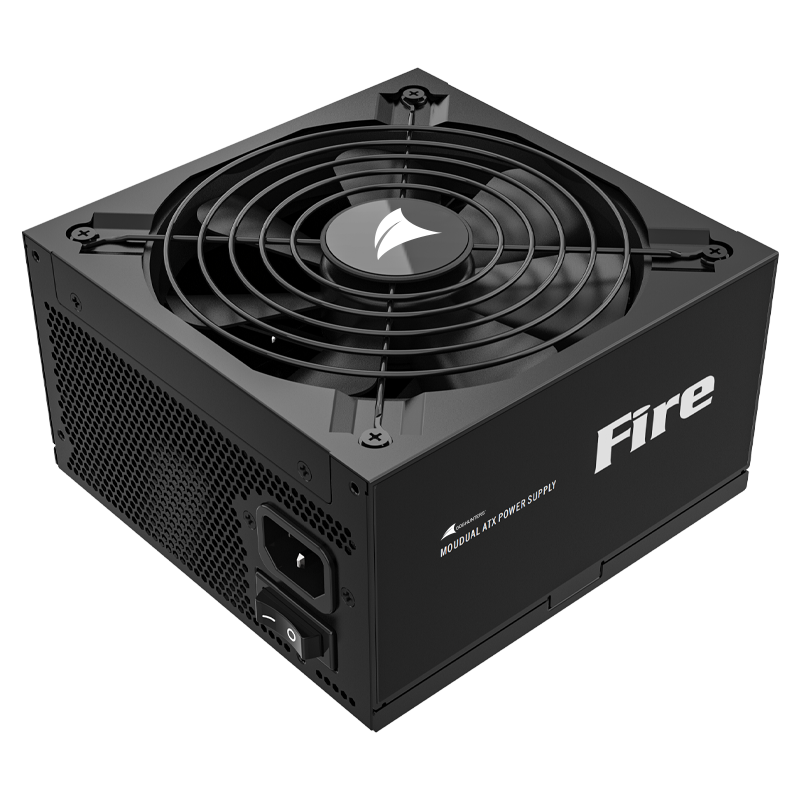

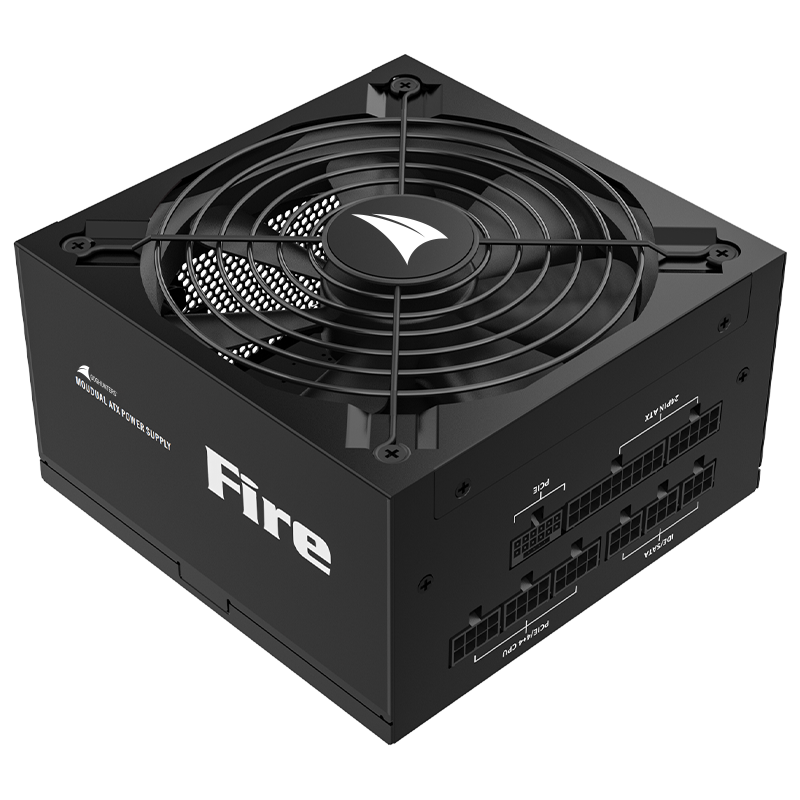

G-750(92+) F7MP
Feature：
1.Certified for 92% efficiency with 80 PLUS Gold and CE.;
2.Single +12V rail supports 100–240V full-range input.:

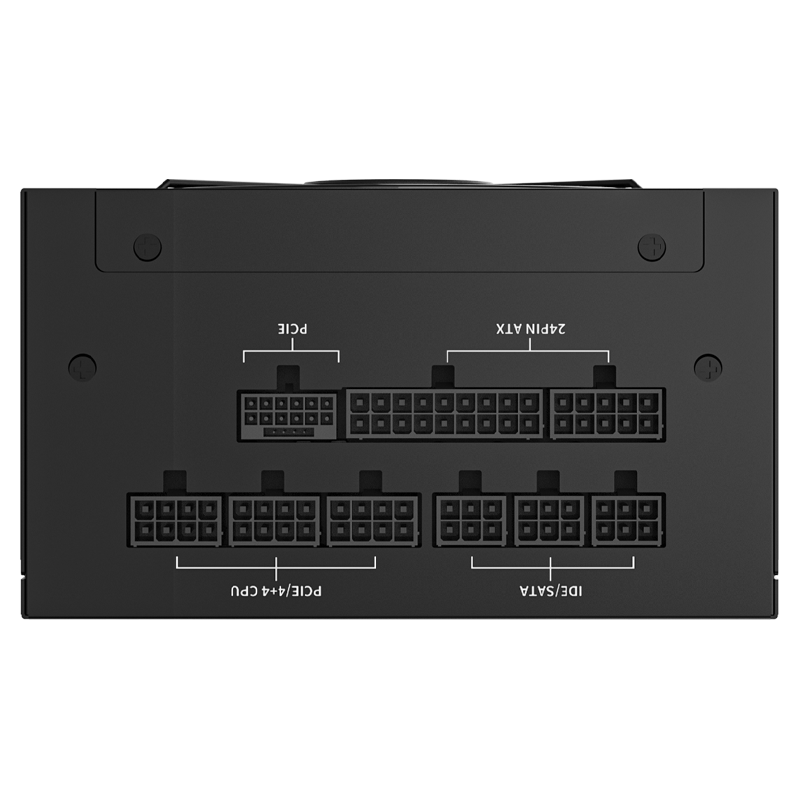

3.Fully modular black embossed cables with 65cm length for easy routing.:
4.Equipped with premium Japanese capacitors for uncompromising quality.;

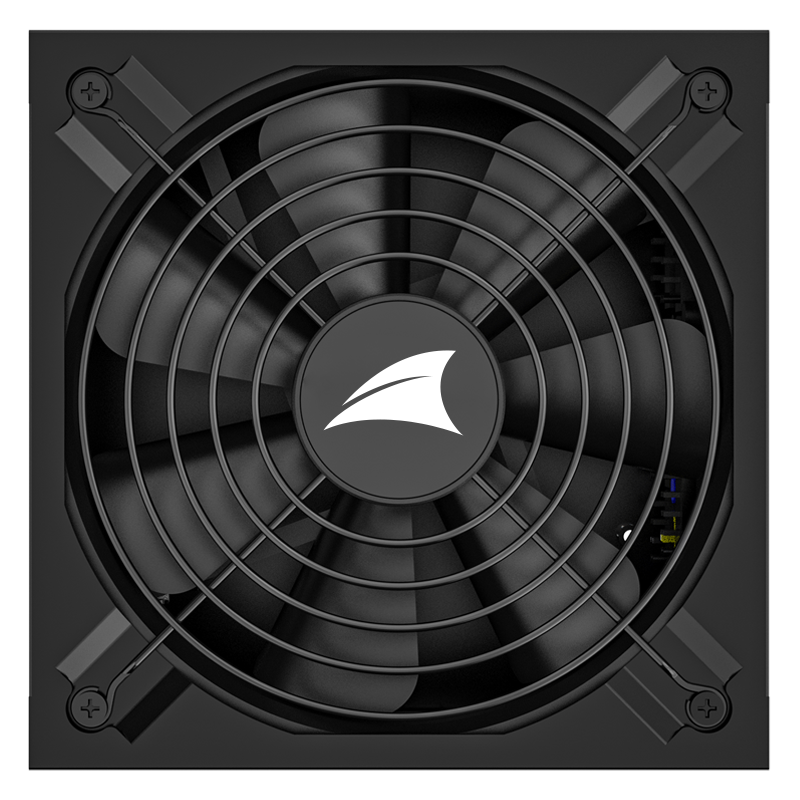

5.14cm fan with smart start-stop and dual noise reduction for ultra-quiet operation.；
6.Advanced LLC + DC/DC + synchronous rectification for high efficiency and low latency.；
7.Dual-layer 2oz black PCB with optimized layout for better electrical performance.:
8.Complies with Intel ATX 3.1 and PCIe 5.1 standards.:
specifications
| Efficiency Certification | 80PLUS （PLATINUM) |
| Product Part Number | 5196996 |
| Promotional Name | F7 Platinum Modular（ATX3.1） |
| ATX Version | ATX3.1 |
| Power | 750W |
| Power Supply Dimensions | 150*150*86 |
| Fan Size | 140mm |
| AC Connector | |
| Input Voltage Range | 100V-240V |
| Color | Black |
| Cable Output Type | Modular |
| Warranty Period | 10 Years |
| Carton Specification | 4 units per carton |
| Certification | CCC，CE |
| Product Selling Points | |
| ATX 24-PIN Cable Length | 600 |
| CPU Cable Length | 650 |
| Number of CPU Connectors | 2 |
| PCI-E 6+2 Cable Length | 600/675 |
| Number of PCI-E 6+2 Connectors | 4 |
| PCIe 5.1 Cable Length | 675 |
| Number of PCIe 5.1 Connectors | 1 |
| SATA Cable Length | 500+100+100+100 |
| Number of SATA Connectors | 4 |
| Number of SATA 3.3 Connectors | |
| L4P Cable Length | 450 |
| Number of L4P Connectors | 4 |
| Remarks |
