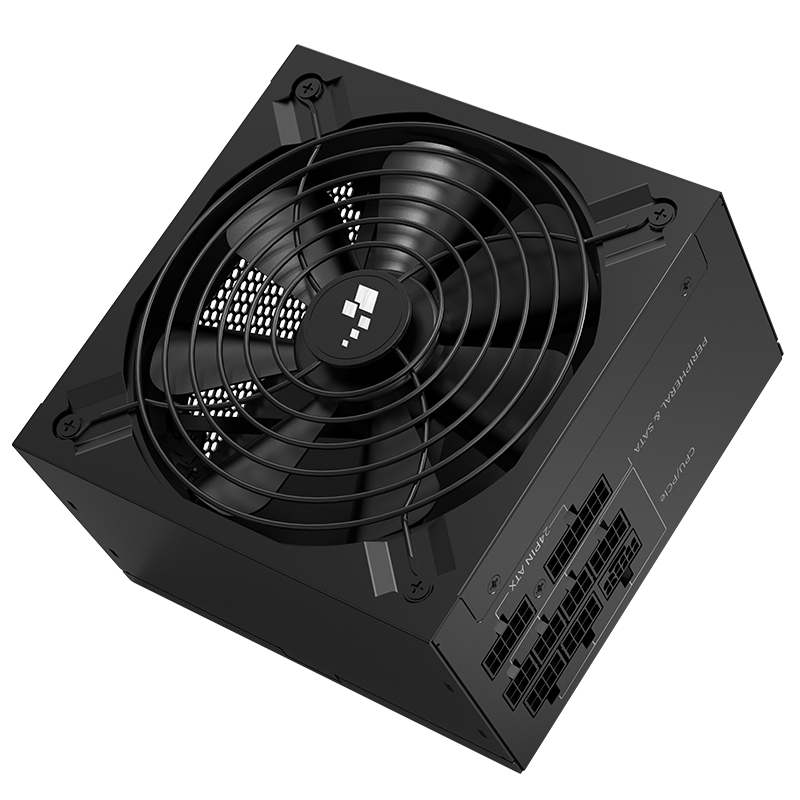

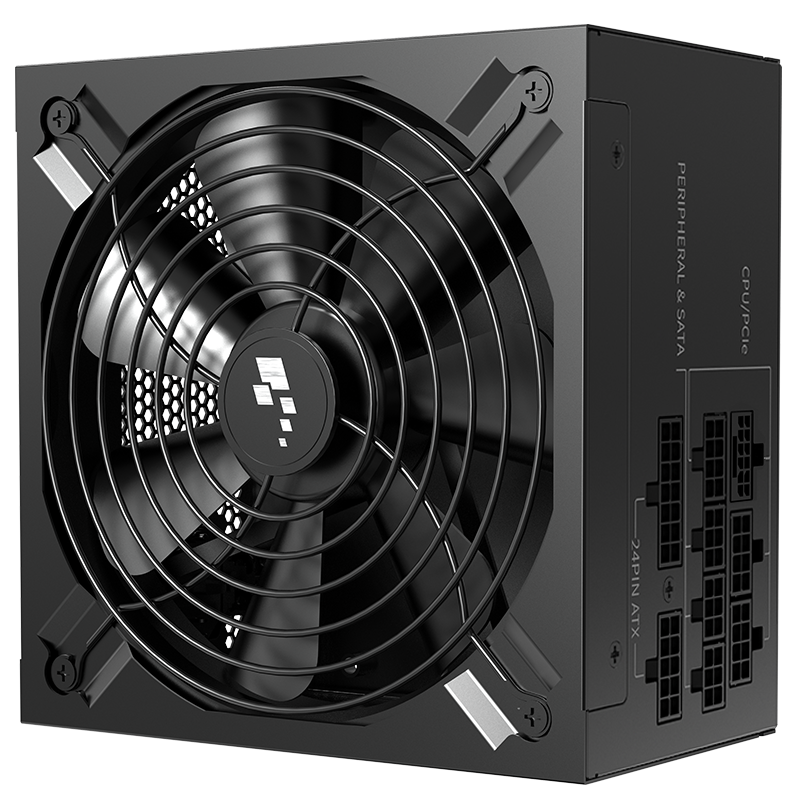

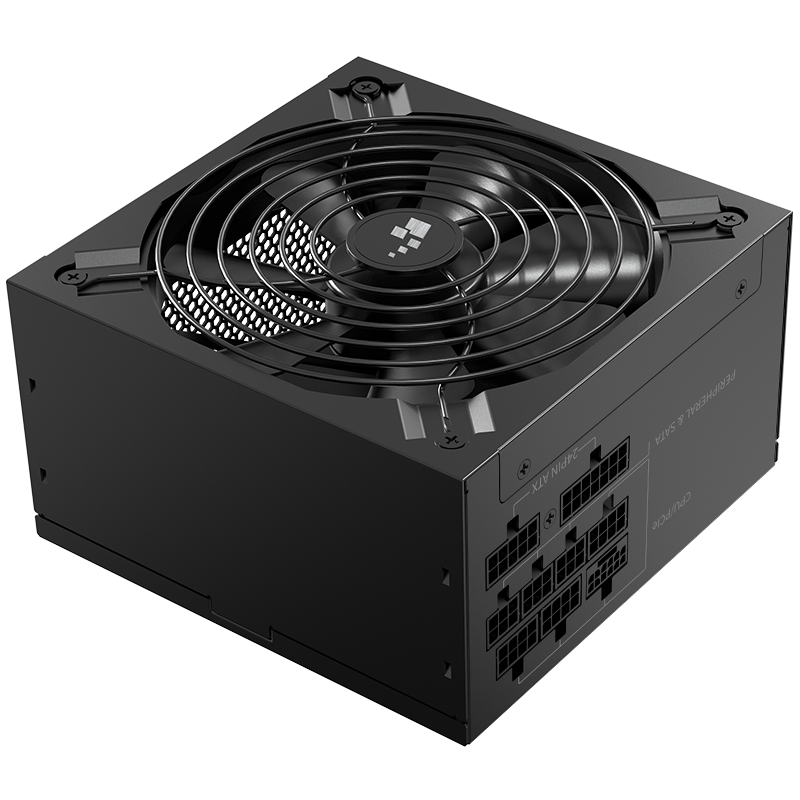

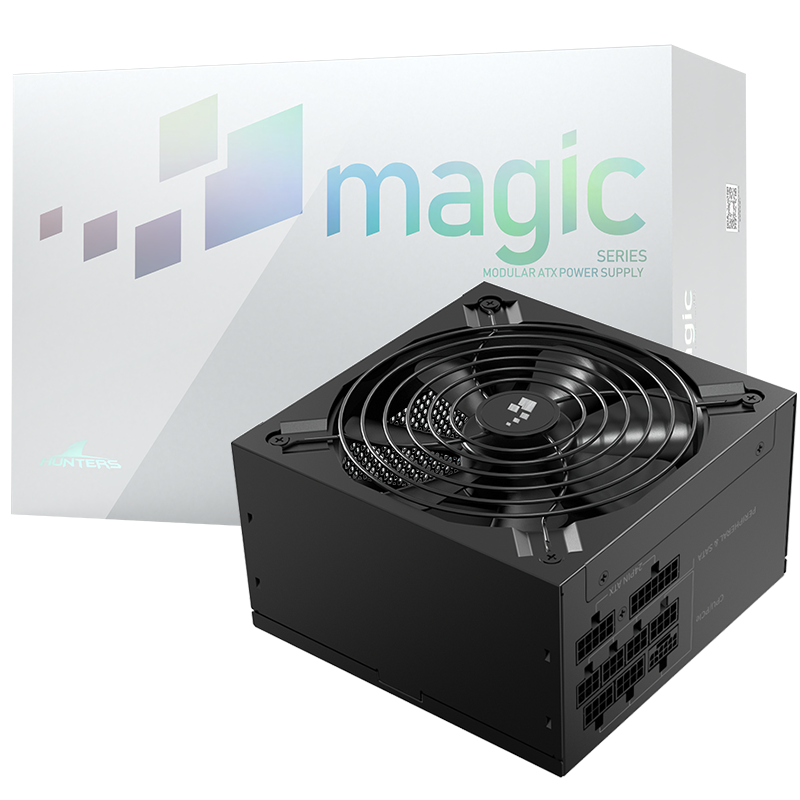

GW-ATX850BL M8MBG
Pioneering leakage current monitoring technology to safeguard system power safety.;
High-Current Single 12V Rail with Full Voltage Range Support；
Certified for 90% efficiency with 80 PLUS Gold.；
Advanced LLC + DC/DC + synchronous rectification for high efficiency and low latency.;
Dual-layer 2oz black PCB improves electrical performance.；
NTC and relay protection with dual-stage EMI surge defense.；
Front-side solder paste SMT ensures high-quality assembly.；
Optimized process achieves 91% intelligent insertion efficiency. ；
Flat pure copper cables support tall cases and clean routing.；
Complies with Intel ATX 3.1 and PCIe 5.1 standards.。
specifications
| Efficiency Certification | 80PLUS（GOLD） |
| Product Part Number | 5200443 |
| Promotional Name | M8 Gold Modular (ATX3.1) |
| ATX Version | ATX3.1 |
| Power | 850W |
| Power Supply Dimensions | 150*150*86 |
| Fan Size | 140mm |
| AC Connector | |
| Input Voltage Range | 100V-240V |
| Color | Black |

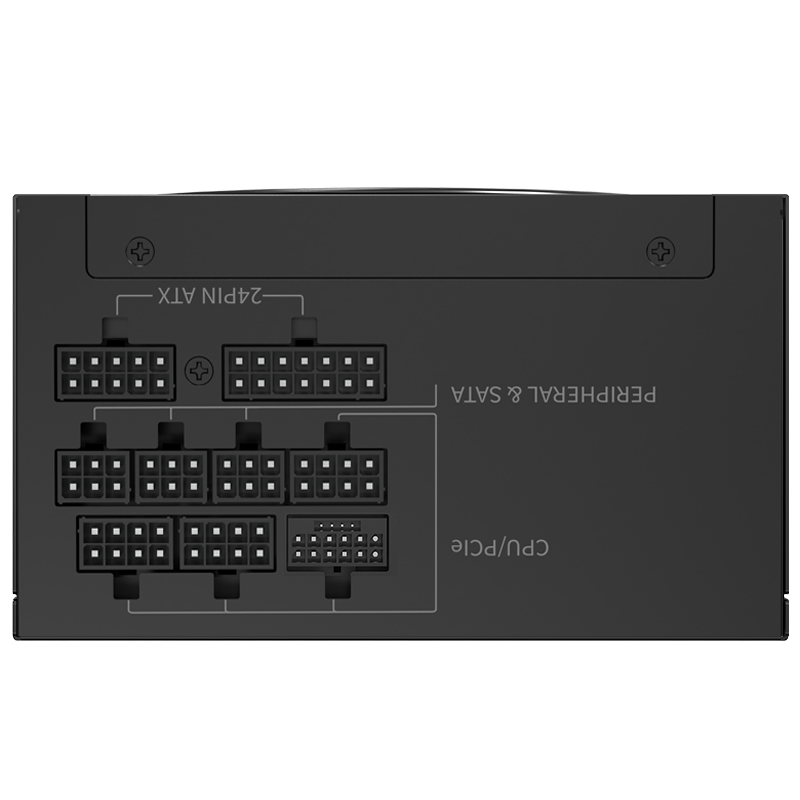

| Cable Output Type | Modular |
| Warranty Period | 7 Years |
| Carton Specification | 4 units per carton |
| Certification | CCC，CE |
| Product Selling Points | |
| ATX 24-PIN Cable Length | 610 |
| CPU Cable Length | 650 |
| Number of CPU Connectors | 2 |
| PCI-E 6+2 Cable Length | 600+150 |
| Number of PCI-E 6+2 Connectors | 4 |
| PCIe 5.1 Cable Length | 600 |
| Number of PCIe 5.1 Connectors | 1 |
| SATA Cable Length | 500+100 |
| Number of SATA Connectors | 6 |
| Number of SATA 3.3 Connectors | |
| L4P Cable Length | 500+200 |
| Number of L4P Connectors | 3 |
| Remarks |
