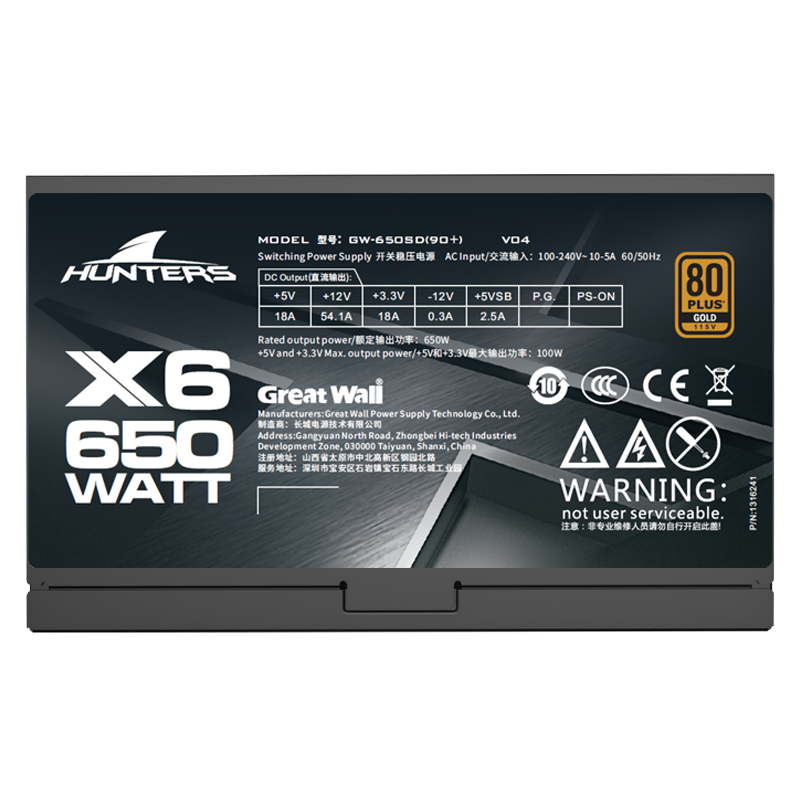

GW-650SD（90+） V04
Pioneering leakage current monitoring technology to safeguard system power safety；
High-Current Single 12V Rail with Full Voltage Range Support；
Certified for 90% efficiency with 80 PLUS Gold.；
Advanced LLC + DC/DC + synchronous rectification for high efficiency and low latency.；
Dual-layer 2oz black PCB improves electrical performance.；
NTC and relay protection with dual-stage EMI surge defense.；
Front-side solder paste SMT ensures high-quality assembly.；
Optimized process achieves 91% intelligent insertion efficiency.；
Flat pure copper cables support tall cases and clean routing.
specifications
| Efficiency Certification | 80PLUS（GOLD） |
| Product Part Number | 5195325 |
| Promotional Name | X6 Gold Modular |
| ATX Version | ATX2.31 |
| Power | 650W |
| Power Supply Dimensions | 140*150*86 |

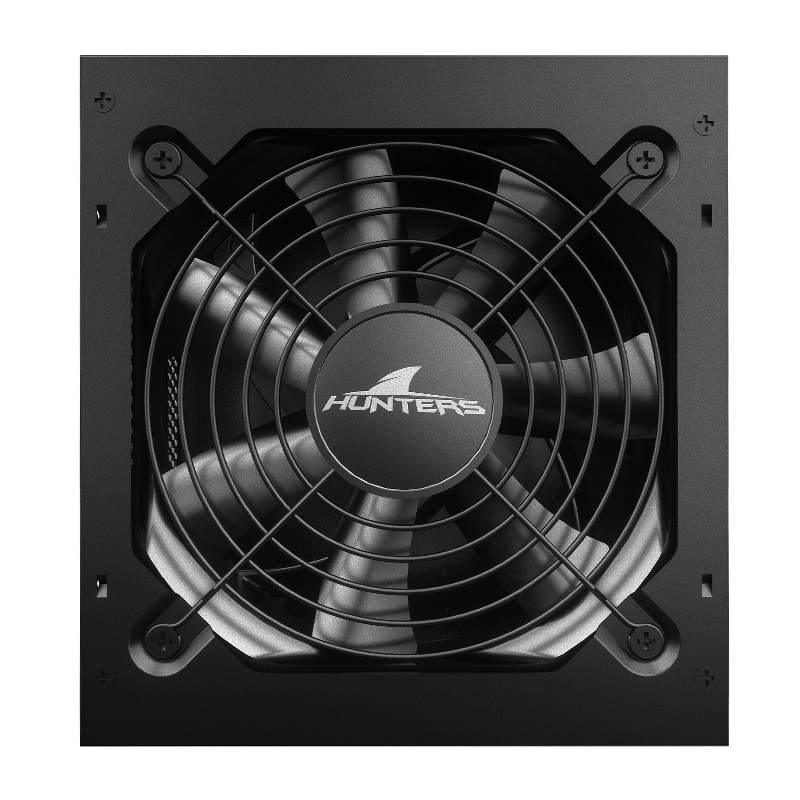

| Fan Size | 120mm |
| AC Connector | |
| Input Voltage Range | 100V-240V |
| Color | Black |
| Cable Output Type | Modular |
| Warranty Period | 5 Years |
| Carton Specification | 8 units per carton |
| Certification | CCC |
| Product Selling Points | |
| ATX 24-PIN Cable Length | 610 |
| CPU Cable Length | 500+200 |
| Number of CPU Connectors | 2 |
| PCI-E 6+2 Cable Length | 600+150 |
| Number of PCI-E 6+2 Connectors | 4 |
| PCIe 5.1 Cable Length | / |
| Number of PCIe 5.1 Connectors | ./ |
| SATA Cable Length | 500+100 |
| Number of SATA Connectors | 6 |
| Number of SATA 3.3 Connectors | |
| L4P Cable Length | 500+200 |
| Number of L4P Connectors | 3 |
| Remarks |
