N-1000BL(90+) N10MG
Feature：
1.High-Current Single 12V Rail with Full Voltage Range Support;
2.Certified for 92% efficiency with 80 PLUS Gold and CE.;

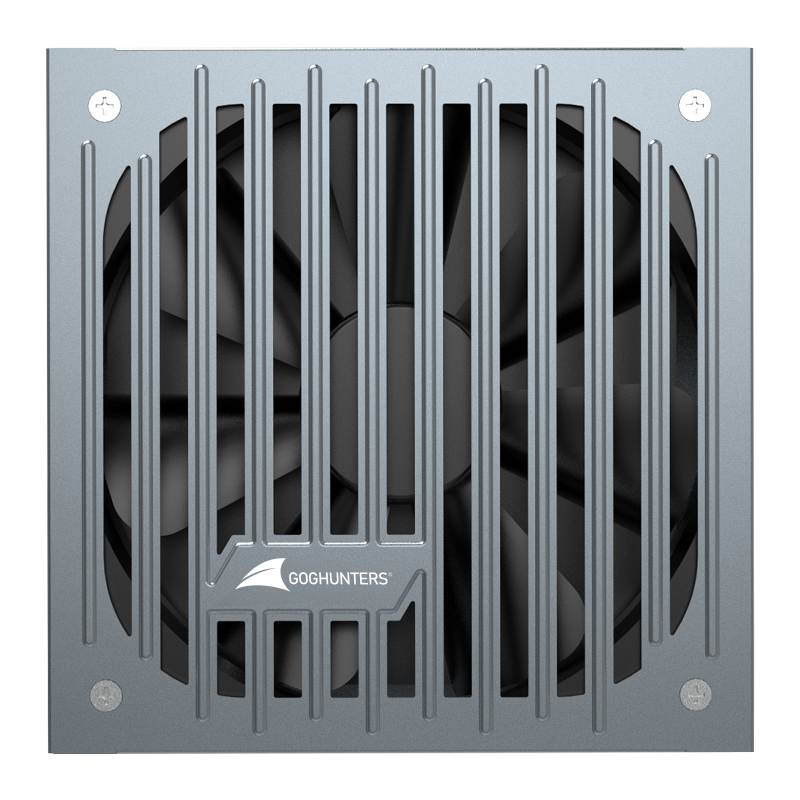

3.Equipped with a 140mm temperature-controlled fan and intelligent silent mode during standby, delivering dual noise reduction for ultra-quiet operation.；
4.Equipped with premium Japanese capacitors for uncompromising quality.
5.Advanced LLC + DC/DC + synchronous rectification for high efficiency and low latency.；
6.Dual-layer 2oz black PCB improves electrical performance.；
7.Fully modular design with custom nylon braided cables for a premium and sophisticated look.；
8.Complies with Intel ATX 3.1 and PCIe 5.1 standards.。
specifications
| Efficiency Certification | 80PLUS（GOLD） |
| Product Part Number | 5190883 |
| Promotional Name | N10 Gold Modular (ATX3.1) |
| ATX Version | ATX3.1 |
| Power | 1000W |
| Power Supply Dimensions | 140*150*86 |
| Fan Size | 140mm |
| AC Connector | |
| Input Voltage Range | 100V-240V |
| Color | 太空灰 |
| Cable Output Type | Modular |
| Warranty Period | 10 Years |
| Carton Specification | 4 units per carton |
| Certification | CCC，CE |
| Product Selling Points | |
| ATX 24-PIN Cable Length | 600 |
| CPU Cable Length | 650 |
| Number of CPU Connectors | 2 |
| PCI-E 6+2 Cable Length | 600/675 |
| Number of PCI-E 6+2 Connectors | 6 |
| PCIe 5.1 Cable Length | 675 |
| Number of PCIe 5.1 Connectors | 2 |
| SATA Cable Length | 500+100+100+100 |
| Number of SATA Connectors | 4 |
| Number of SATA 3.3 Connectors | |
| L4P Cable Length | 450 |
| Number of L4P Connectors | 4 |
| Remarks |
