AJIMIDE

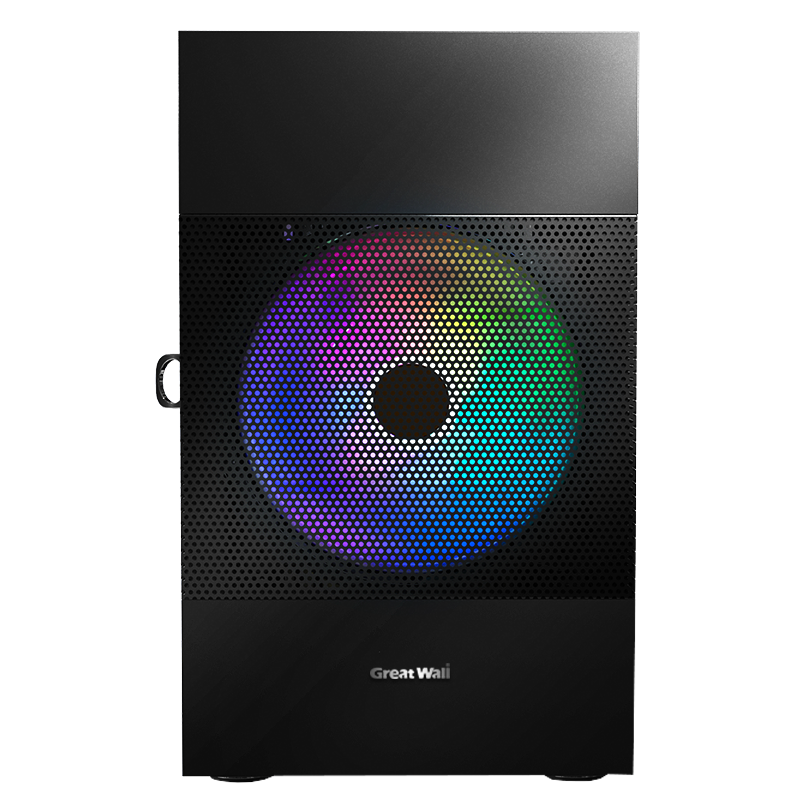

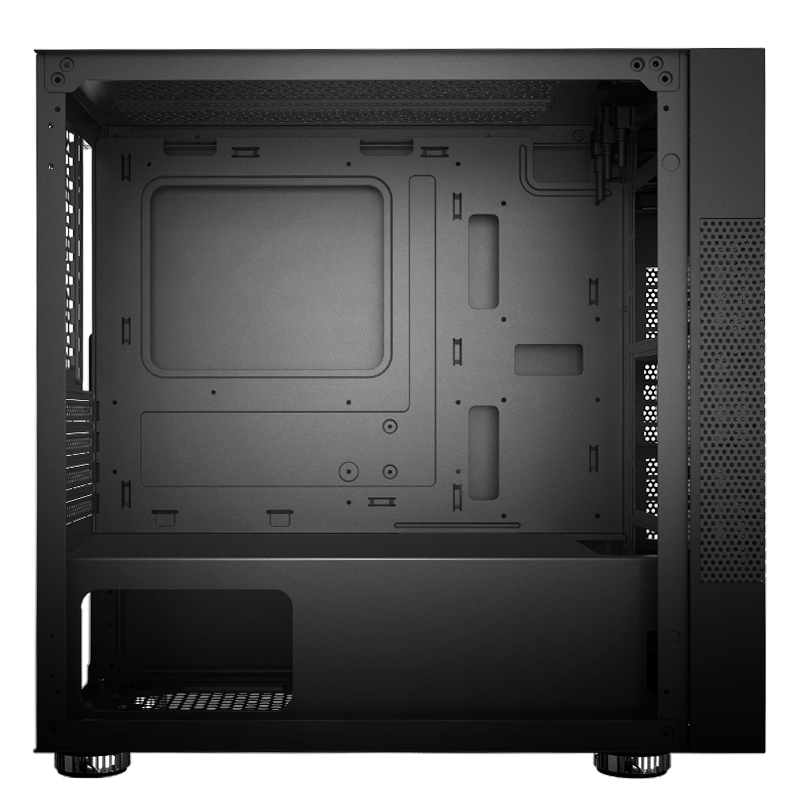

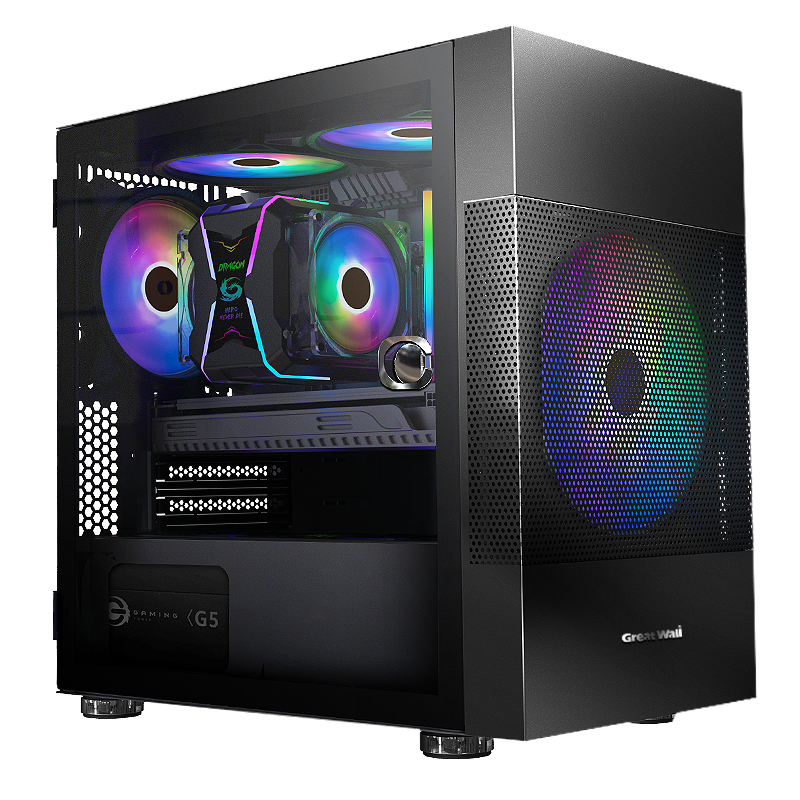

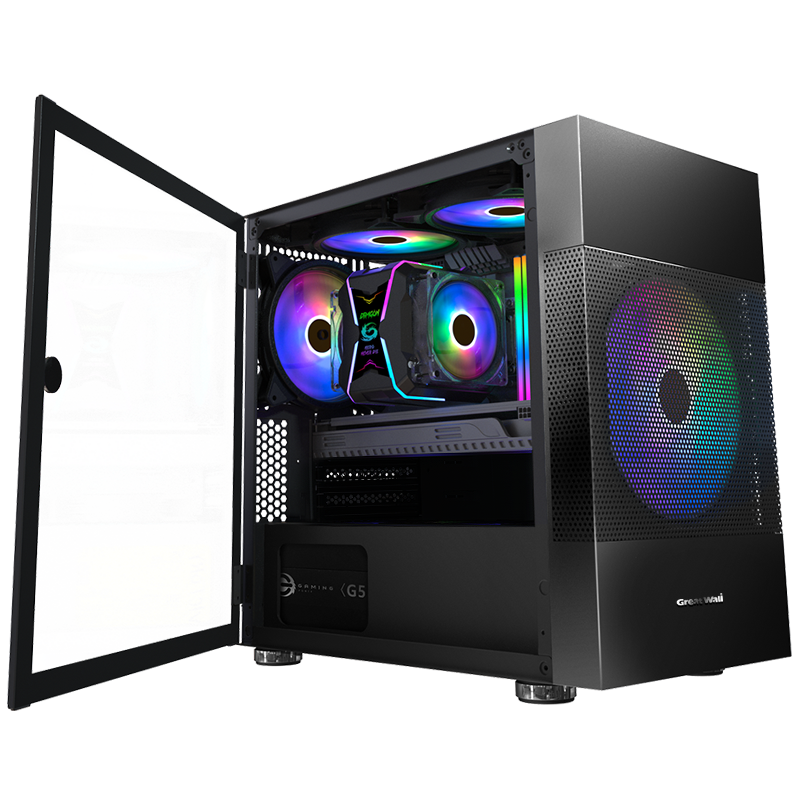

AJIMIDE KM1
specifications
| Product Type | |
| Color | Black |
| Front Panel | Steel |
| Left Side Panel Material | |
| Product Dimensions (mm) | L390xW230xH375mm |
| Metal Parts Dimensions (mm) | |
| Compatible Motherboards | M-ATX/ITX |
| Rear I/O Motherboard Support | |
| Optical Drive Bays | |
| 3.5" HDD Bays | 2 (each supports 1 × 2.5″ SSD) |
| SSD Mounting Slots | |
| Water Cooling Support | Top side240mm Front side280/240mm Rear side120mm |
| Fan Mounting Positions | Front side：20cmx1/14cmx2/12cmx2 Rear side:14cmx1/12cmx1 Top side：14cmx2/12cmx2 |
| CPU Cooler Height Limit | 180cm |
| GPU Length Limit | 335mm |
| Number of PCI Slots | |
| PSU Position | ATX PS2 |
| PSU Length Limit | |
| USB2.0 | 2 |
| USB3.0 | 1 |
| USB-C | |
| Audio Ports | HD AUDIO , Micx1，Spkx1 |
| Outer Carton Dimensions (mm) | L430xW280xH465mm |
| Net Weight (Kg) | 4.2Kg |
| Gross Weight (Kg) | 5.0Kg |
