MOJING

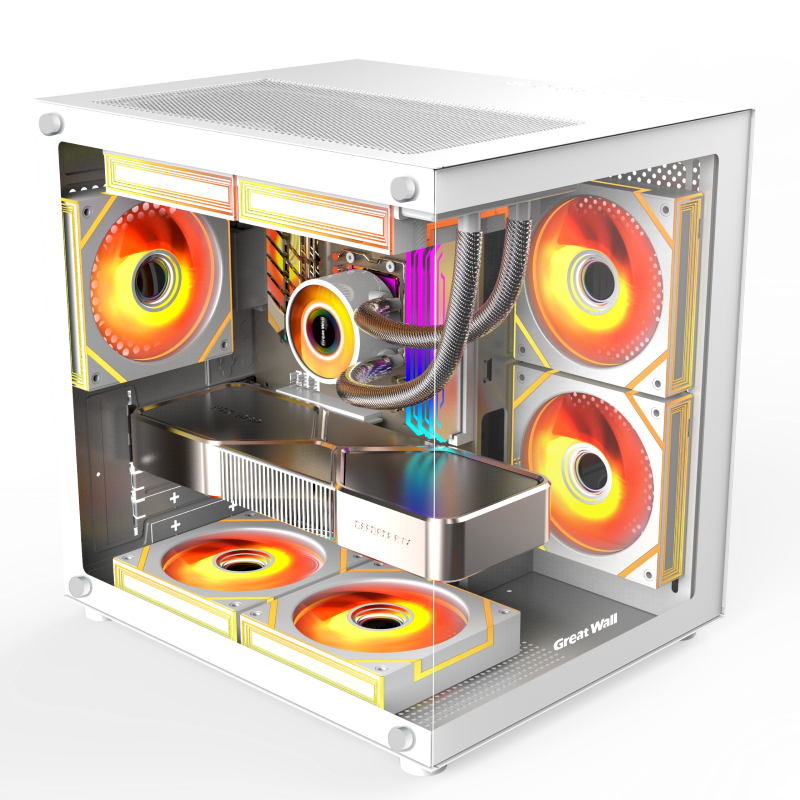

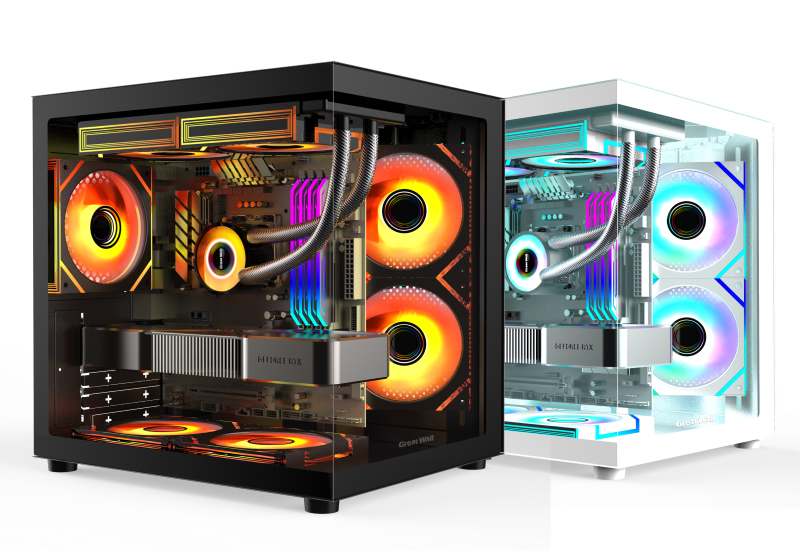

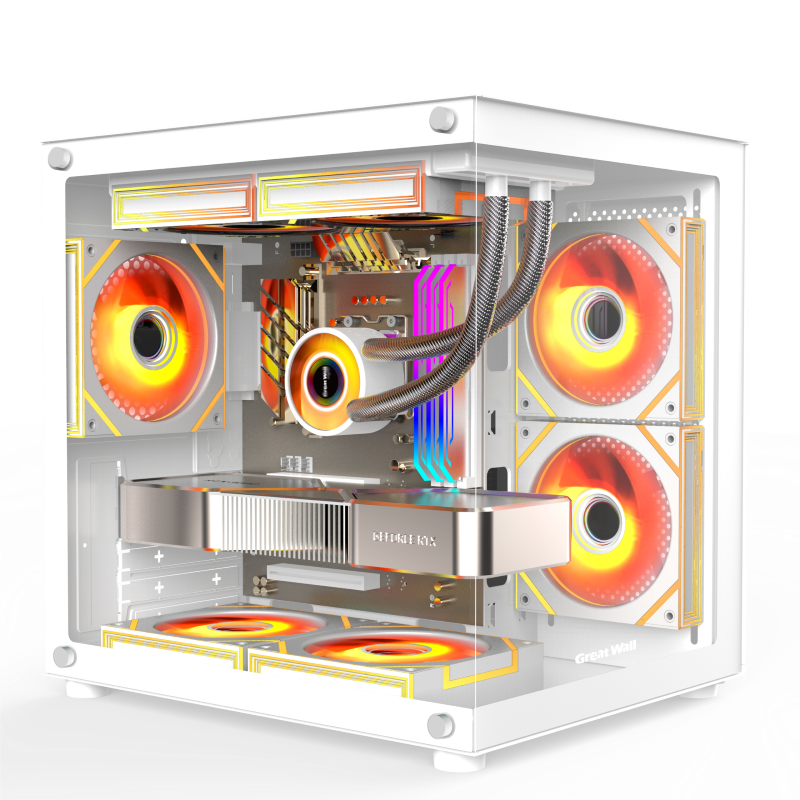

MOJING X1W
Top-Mounted 240mm Radiator Support, Supports Up to 7 Cooling Fans
Dual Tempered Glass Panels with Minimalist Design
270° Panoramic View
USB 3.0 High-Speed Connectivity
specifications
| Product Type | |
| Color | White |
| Front Panel | Glass |
| Left Side Panel Material | Glass |
| Product Dimensions (mm) | L346xW275xH338mm |
| Metal Parts Dimensions (mm) | L326xW270xH325mm |
| Compatible Motherboards | M-ATX/ITX |
| Rear I/O Motherboard Support | |
| Optical Drive Bays | |
| 3.5" HDD Bays | 3.5″x1(可安装2.5″x1） |
| SSD Mounting Slots | 2.5″x1 |
| Water Cooling Support | Top side：240mm Side face：240mm Rear side：120mm |
| Fan Mounting Positions | Top side：12cm x2 Side face：12cm x2 Rear side：12cm x1 Bottom side：12cm x2 |
| CPU Cooler Height Limit | 155mm |
| GPU Length Limit | 320mm |
| Number of PCI Slots | |
| PSU Position | ATX PS2 |
| PSU Length Limit | |
| USB2.0 | 1 |
| USB3.0 | 1 |
| USB-C | |
| Audio Ports | HD AUDIO , Mic x1 , Spk x1 |
| Outer Carton Dimensions (mm) | L385xW326xH392mm |
| Net Weight (Kg) | 3.2Kg |
| Gross Weight (Kg) | 4.0Kg |
