TIEMU
TIEMU H503
Wide-Body Chassis, Supports E-ATX motherboards

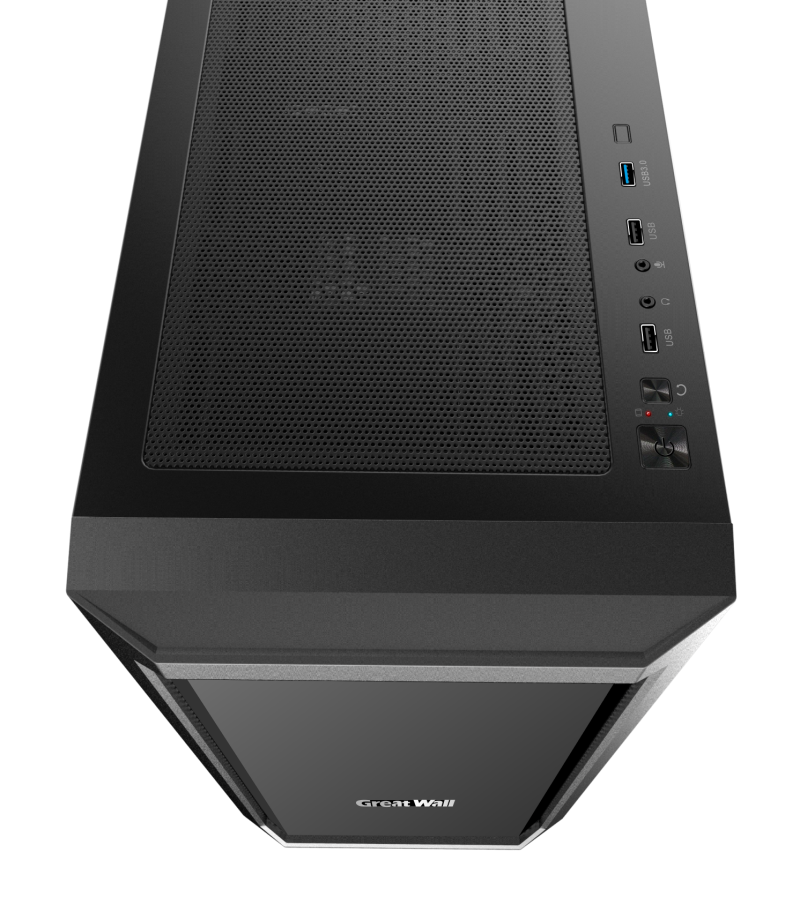

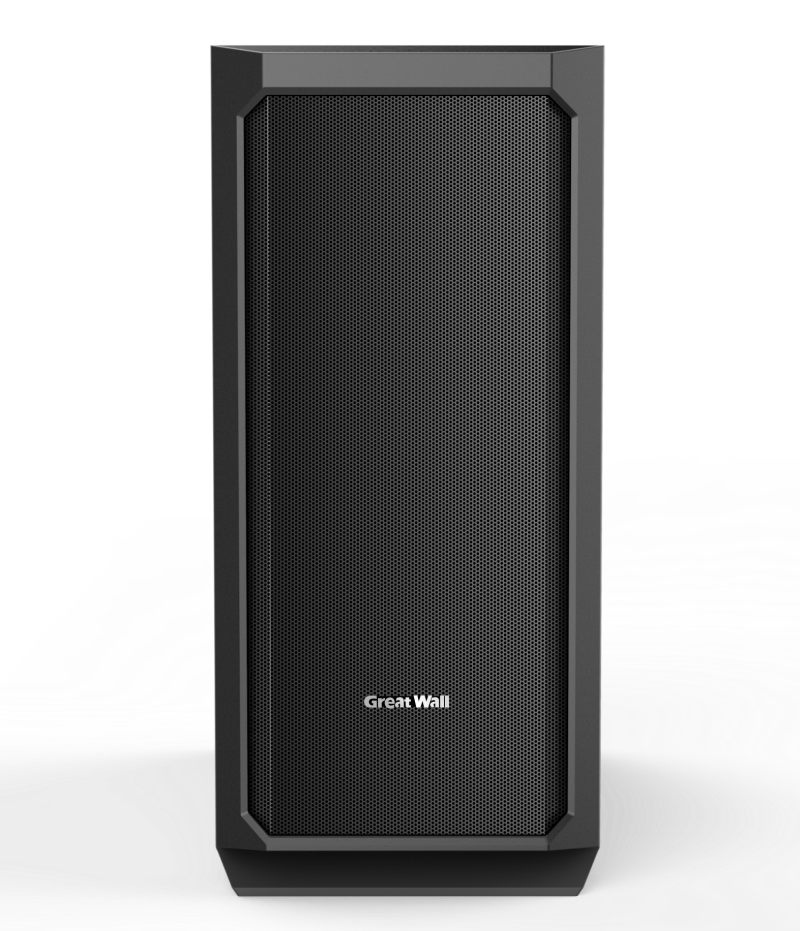

Steel Mesh Front and Top Panels – Style Meets Cooling

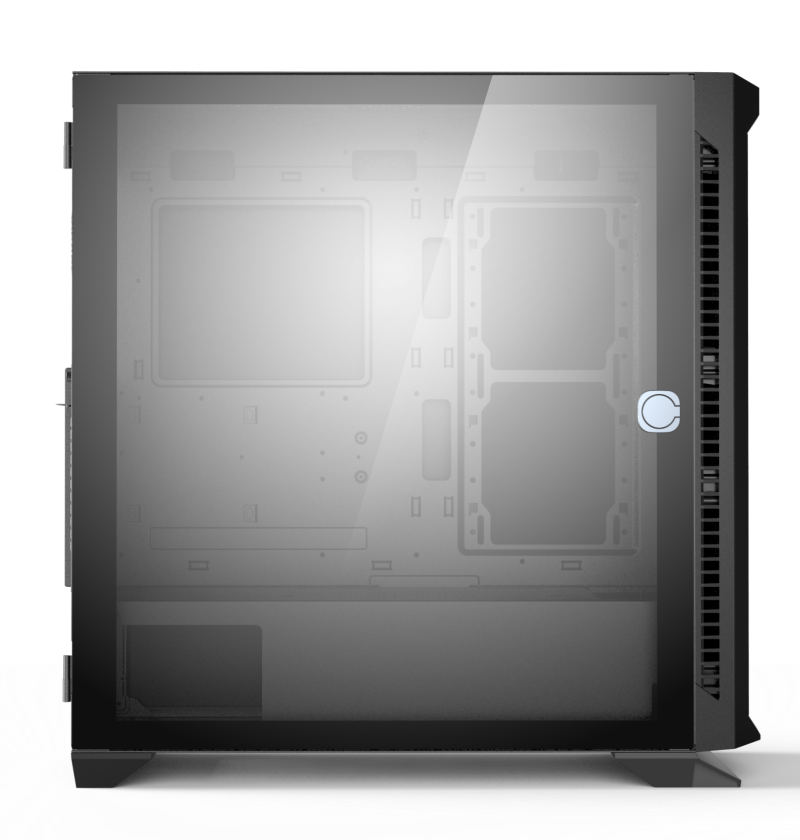

Magnetic Tempered Glass Side Panel – Dazzling Light Effects
Advanced Cooling Support – Top 360mm Radiator Ready
Vertical GPU Mount Support – Optimized for Gamers
specifications
| Product Type | |
| Color | Black |
| Front Panel | Steel |
| Left Side Panel Material | Glass |
| Product Dimensions (mm) | L480xW230xH499mm |
| Metal Parts Dimensions (mm) | L430xW230xH470mm |
| Compatible Motherboards | E-ATX/ATX/MicroATX |
| Rear I/O Motherboard Support | No |
| Optical Drive Bays | No |
| 3.5" HDD Bays | 3 |
| SSD Mounting Slots | 2 |
| Water Cooling Support | Top side：360mm Rear side：120mm |
| Fan Mounting Positions | Front side：12cmx3 14cmx3 Rear side：12cmx1 14cmx1 Top side：12cmx3 14cmx2 PSU Bay：12cmx3 |
| CPU Cooler Height Limit | 180mm |
| GPU Length Limit | 417mm |
| Number of PCI Slots | 7 |
| PSU Position | Bottom |
| PSU Length Limit | 200mm |
| USB2.0 | 2 |
| USB3.0 | 1 |
| USB-C | No |
| Audio Ports | Micx1，Spkx1 |
| Outer Carton Dimensions (mm) | L565xW288xH550mm |
| Net Weight (Kg) | 6.6Kg |
| Gross Weight (Kg) | 7.9Kg |
