MEIYING

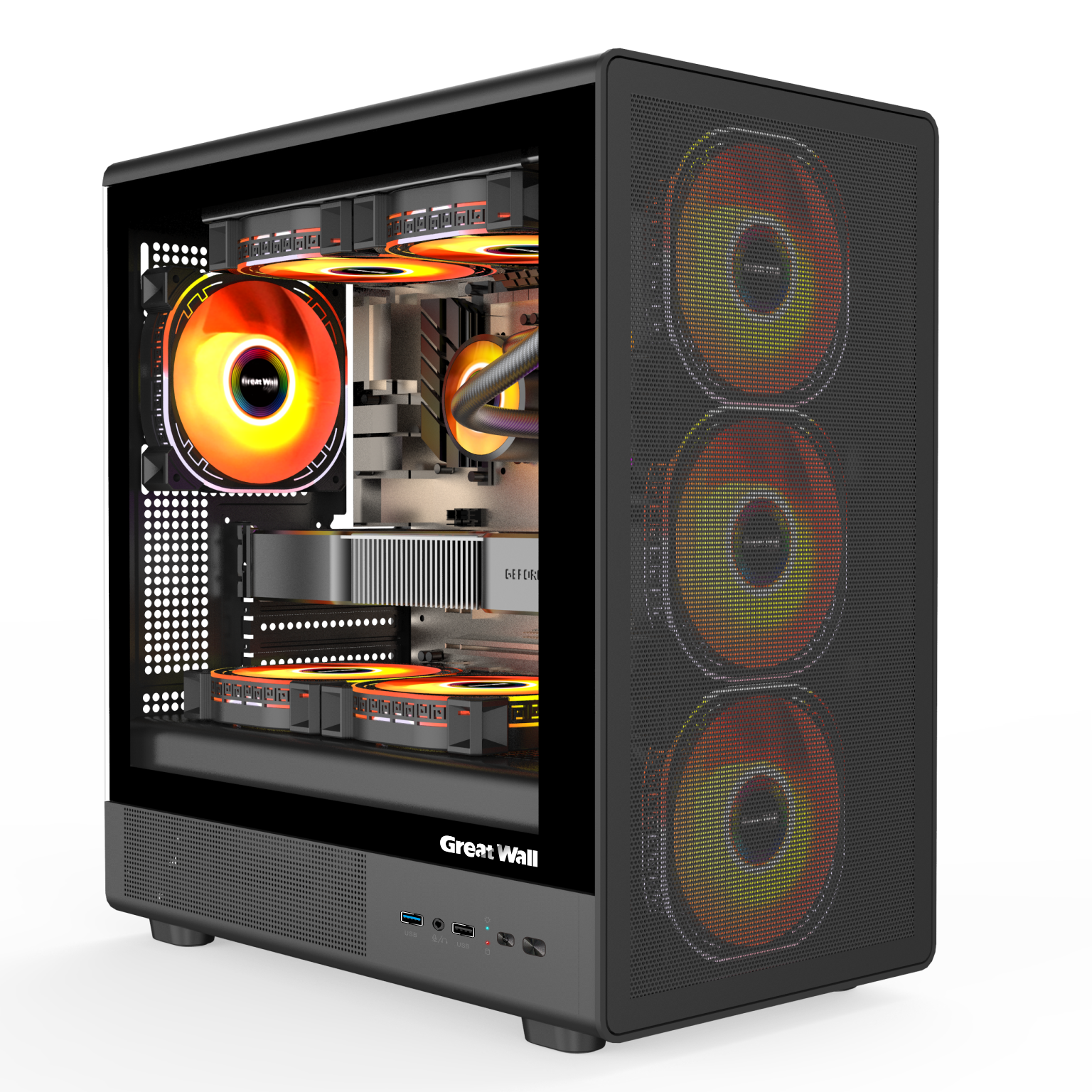

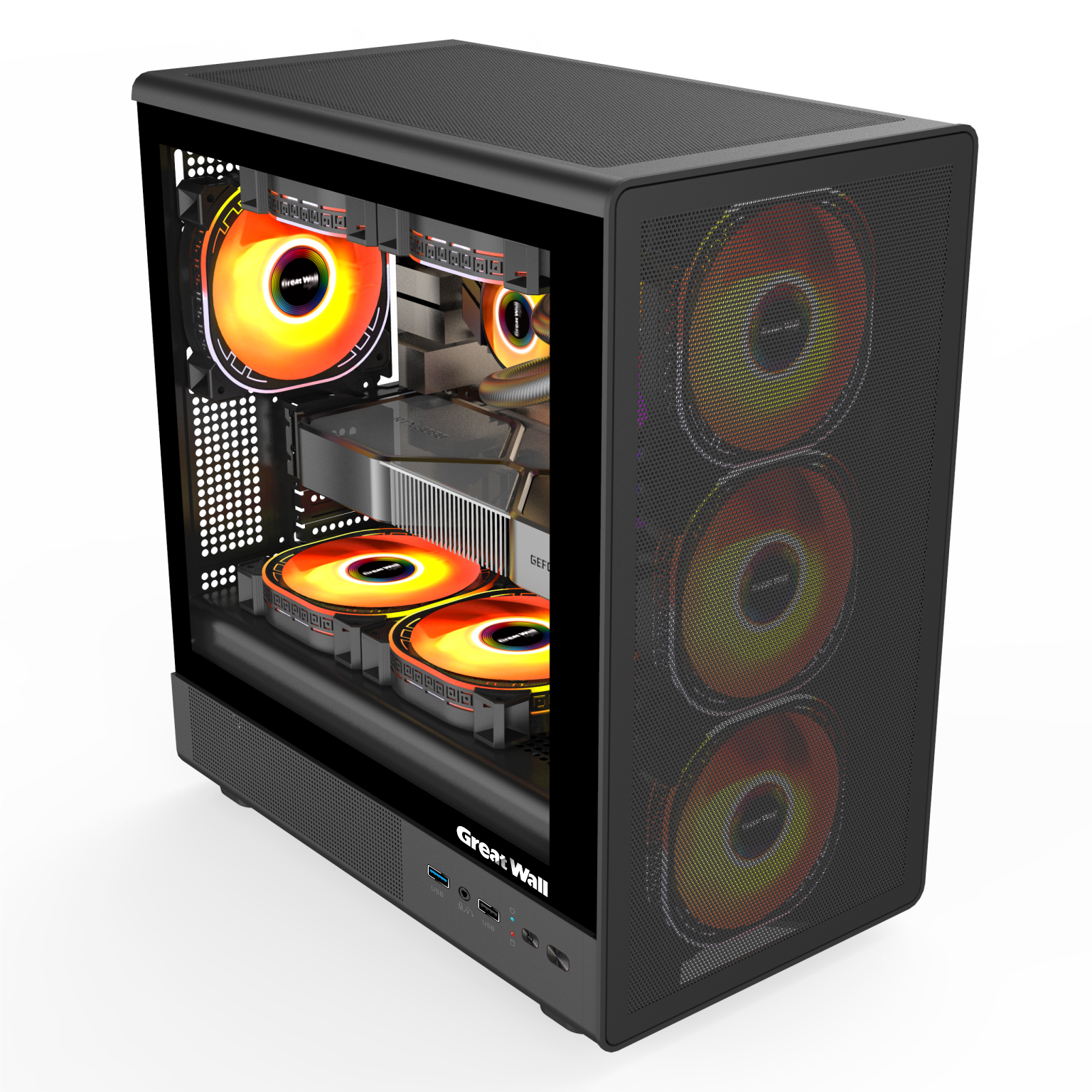

MEIYING M2
Streamlined hidden-panel construction for a modern, refined look
Snap-in ultra-clear tempered glass side panel
Plastic micro-perforated front panel for efficient heat dissipation
Wide-Body Chassis
USB 3.0 High-Speed Connectivity

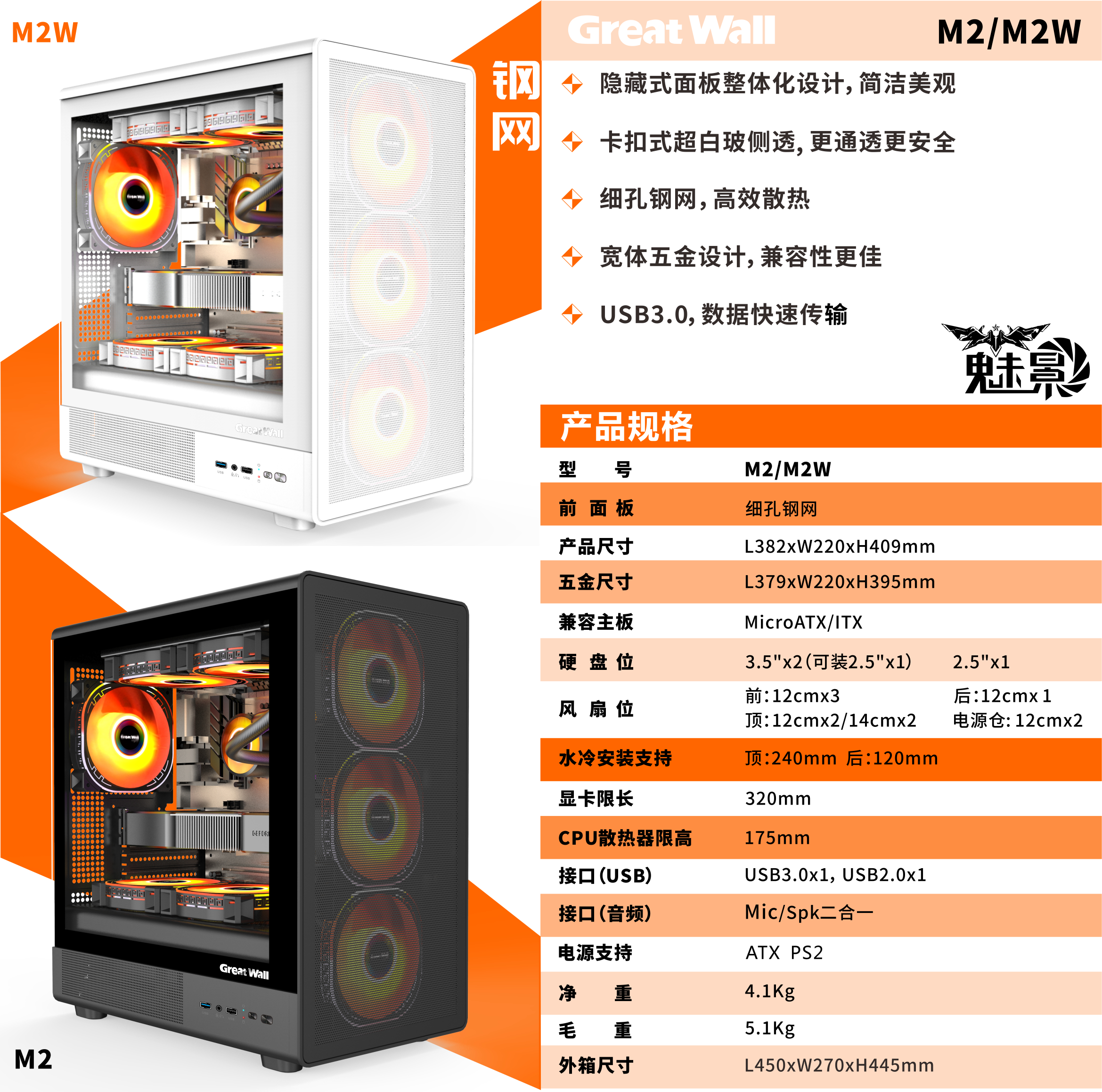

specifications
| Product Type | |
| Color | Black |
| Front Panel | Steel |
| Left Side Panel Material | Glass |
| Product Dimensions (mm) | L382*W220*H409 |
| Metal Parts Dimensions (mm) | L379*W220*H395 |
| Compatible Motherboards | ITX/MicroATX |
| Rear I/O Motherboard Support | No |
| Optical Drive Bays | No |
| 3.5" HDD Bays | 2 |
| SSD Mounting Slots | 1 |
| Water Cooling Support | Top side：240mm Rear side：120mm |
| Fan Mounting Positions | Front side 12cmx3 Rear side 12cmx1 Top side 12cmx2/14cmx2 PSU Bay 12cmx2 |
| CPU Cooler Height Limit | 175 |
| GPU Length Limit | 320 |
| Number of PCI Slots | 4 |
| PSU Position | Bottom |
| PSU Length Limit | 200mm |
| USB2.0 | 1 |
| USB3.0 | 1 |
| USB-C | No |
| Audio Ports | Mic/Spk 2-in-1 |
| Outer Carton Dimensions (mm) | L450*W270*H445 |
| Net Weight (Kg) | 4.1Kg |
| Gross Weight (Kg) | 5.1Kg |
